Follow these steps to download the application to the terminal.
1. From the Project Organizer, right-click the PanelView 800 terminal, then
click Download.
Alternatively, click the Download icon in the Settings tab of the terminal.

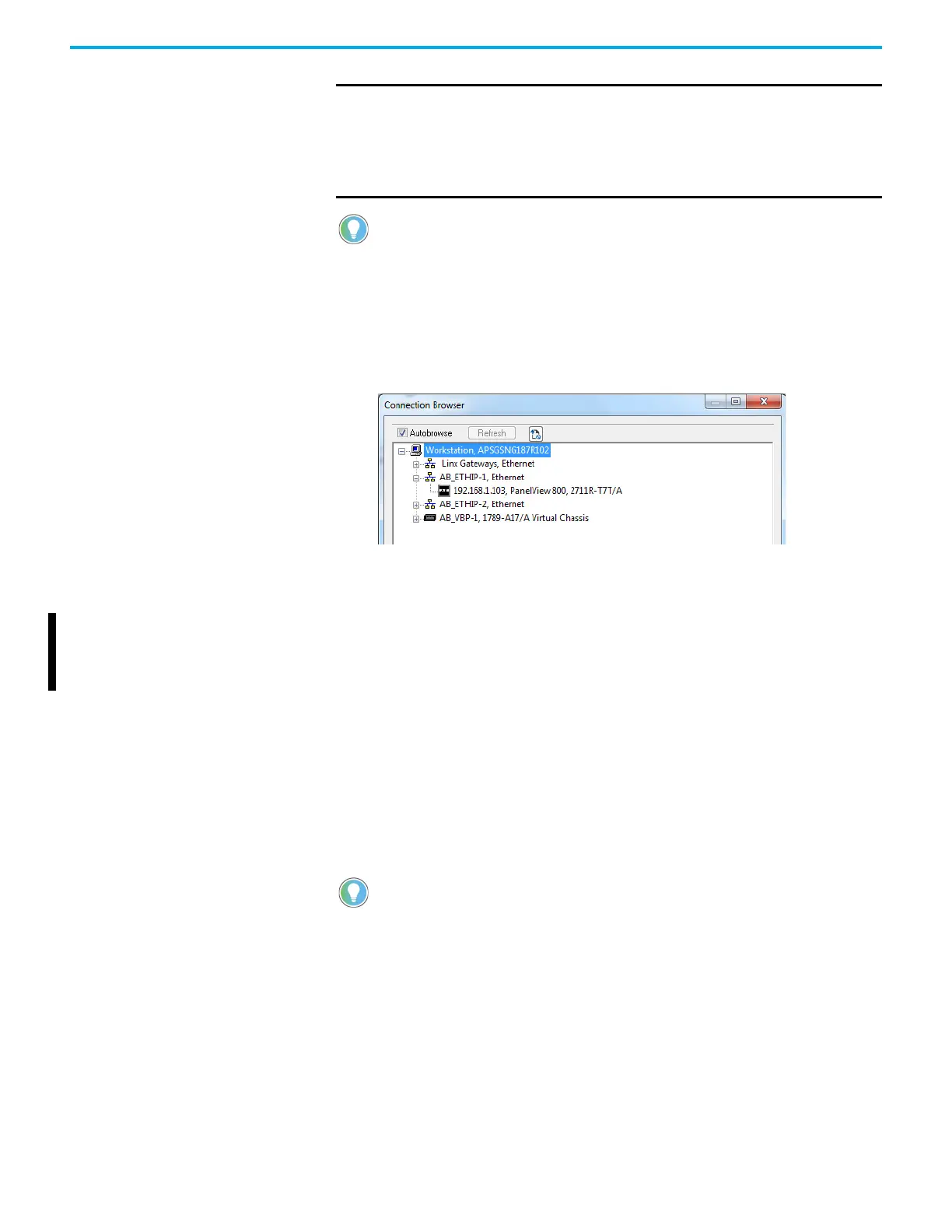

The Connection Browser dialog box appears.
2. Select the terminal that you want to download the application to, then
click OK.
In Connected Components Workbench software version 12 or later, after you
have successfully downloaded an application to your terminal, a dialog prompt
appears to ask to start the application. This feature also requires firmware
revision 5.012 or later.
Uploading Applications You can upload an application from the terminal into the Connected
Components Workbench software. This allows you to edit the application,
then download the changes to the terminal. If you have a current project
opened in Connected Components Workbench software, that project will be
backed up, then the application from the terminal overwrites the current
project.
Follow these steps to upload an application from the terminal.
1. From the Project Organizer, right-click the PanelView 800 terminal, then
click Upload.
Alternatively, click the Upload icon in the Settings tab of the terminal.
IMPORTANT
If the terminal is password protected using Connected Components
Workbench software version 10 or later, you cannot download an
application to the terminal using Connected Components Workbench
software version 9 or earlier. An error message stating the system is
busy will be shown in the output window under the Graphic Terminal
message list.
• If the terminal is password protected, you must enter the password before you can
download an application.
• The current project will be backed up with the string “__bak” appended to the end of
the filename. The status message can be viewed in the Output window under the
Graphics Terminal message list.
• If the terminal is password protected, you must enter the password before you can
upload an application.
