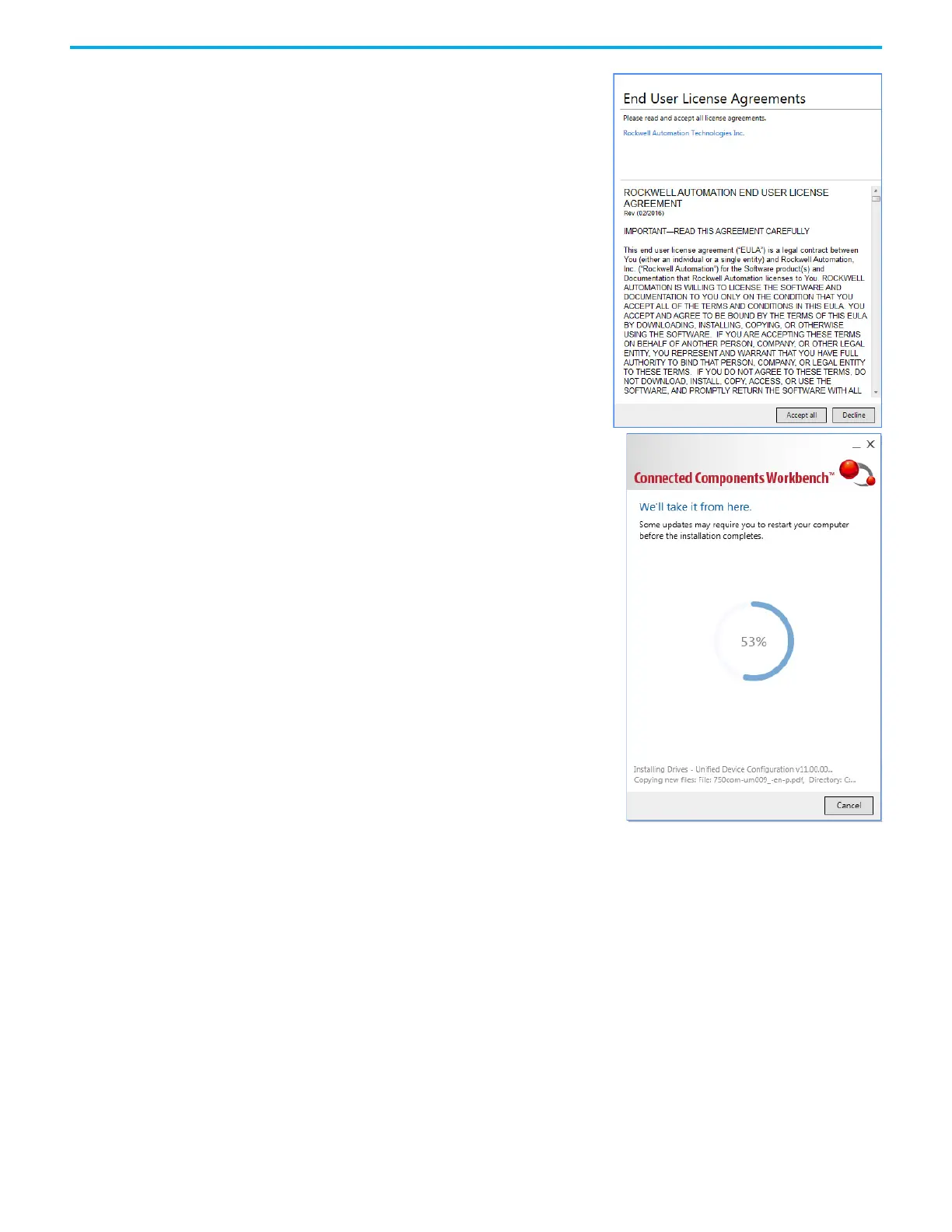

48 Rockwell Automation Publication 2711R-UM001H-EN-E - April 2021

Chapter 3 DesignStation in Connected Components Workbench Software

4. Review the license agreement

and click Accept all to proceed

with the installation.

5. The next screen provides a visual

indication of the installation

progress.
