Chapter 3 DesignStation in Connected Components Workbench Software
3. Select Studio 5000 Logix Designer® application project file (.l5x), then
click Open.

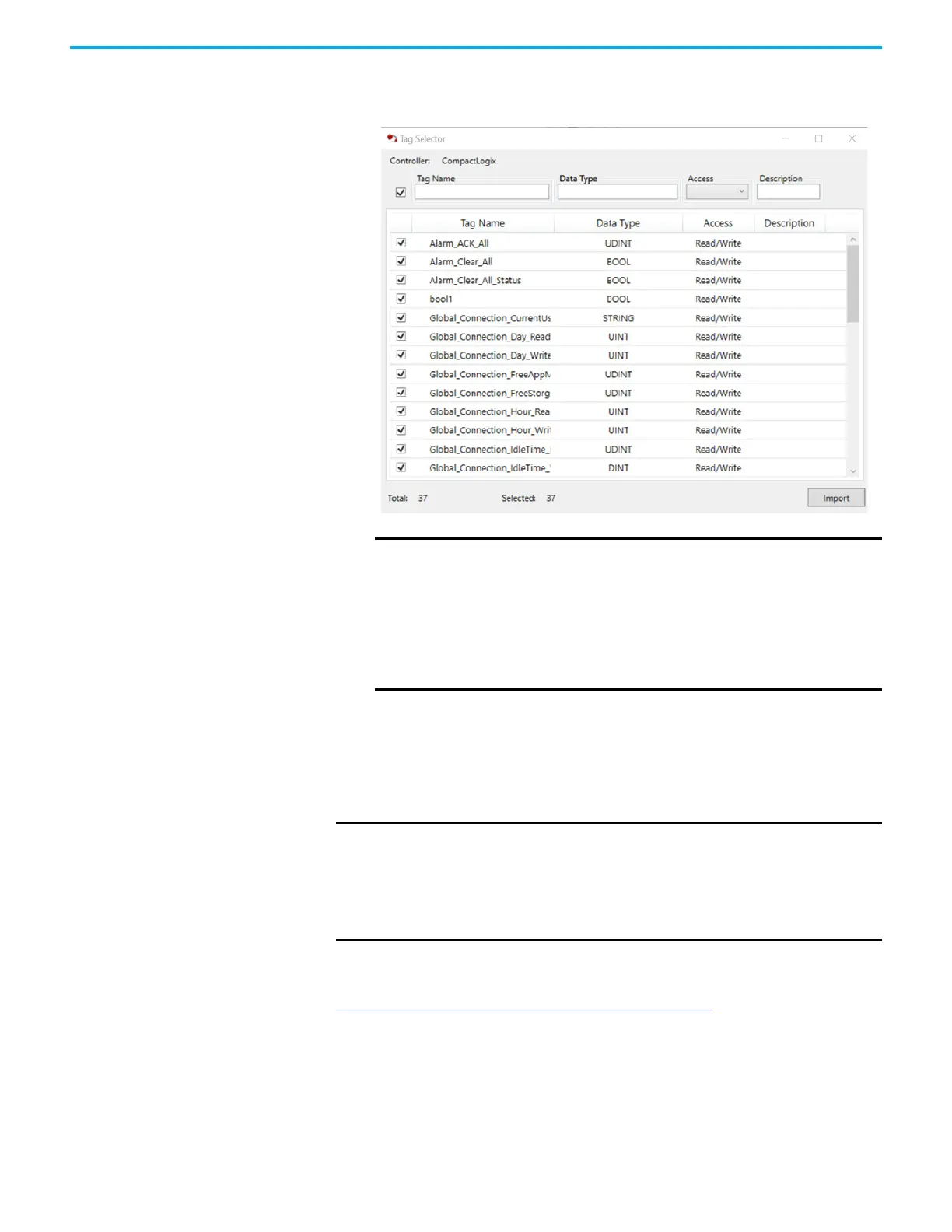

The Tag Selector dialog appears.
If the tags you want to import exists in your application, a warning message
appears. Click Yes to import all selected tags and overwrite existing tags, or No
to only import tags that do not exist in your application.
The Import tag result is show in the Output pane.
For more information on the differences in supported data types between
PanelView 800 terminals and CompactLogix 5370 controllers, see
CompactLogix 5370 Controller Addressing
on page 133.
IMPORTANT
An error message appears if one of the following conditions is
true:
• The file does not have the extension “.l5x”.
• The file is damaged.
• The file is from a non-supported version of Logix Designer
application.
• The file is a non-supported Logix Designer application project
type.
IMPORTANT
After importing a tag with the String data type, you must change
“TagName.Data/0” to “TagName.Data/N” where N is the length of the
string.
If no default value was set for the controller string tag, the tag is named
“TagName.Data/0” by default after it has been imported to your
PanelView 800 application.
