Chapter 2 Install the PowerMonitor 5000 Unit
Native Ethernet Communication
The PowerMonitor 5000 unit connects easily to industry-standard Ethernet hubs
and switches by using standard CAT-5 UTP (unshielded twisted-pair) cables
with RJ45 connectors. Tabl e 6
shows the cable and connector pin assignments.
Typical Ethernet connections are shown in Figure 23
.

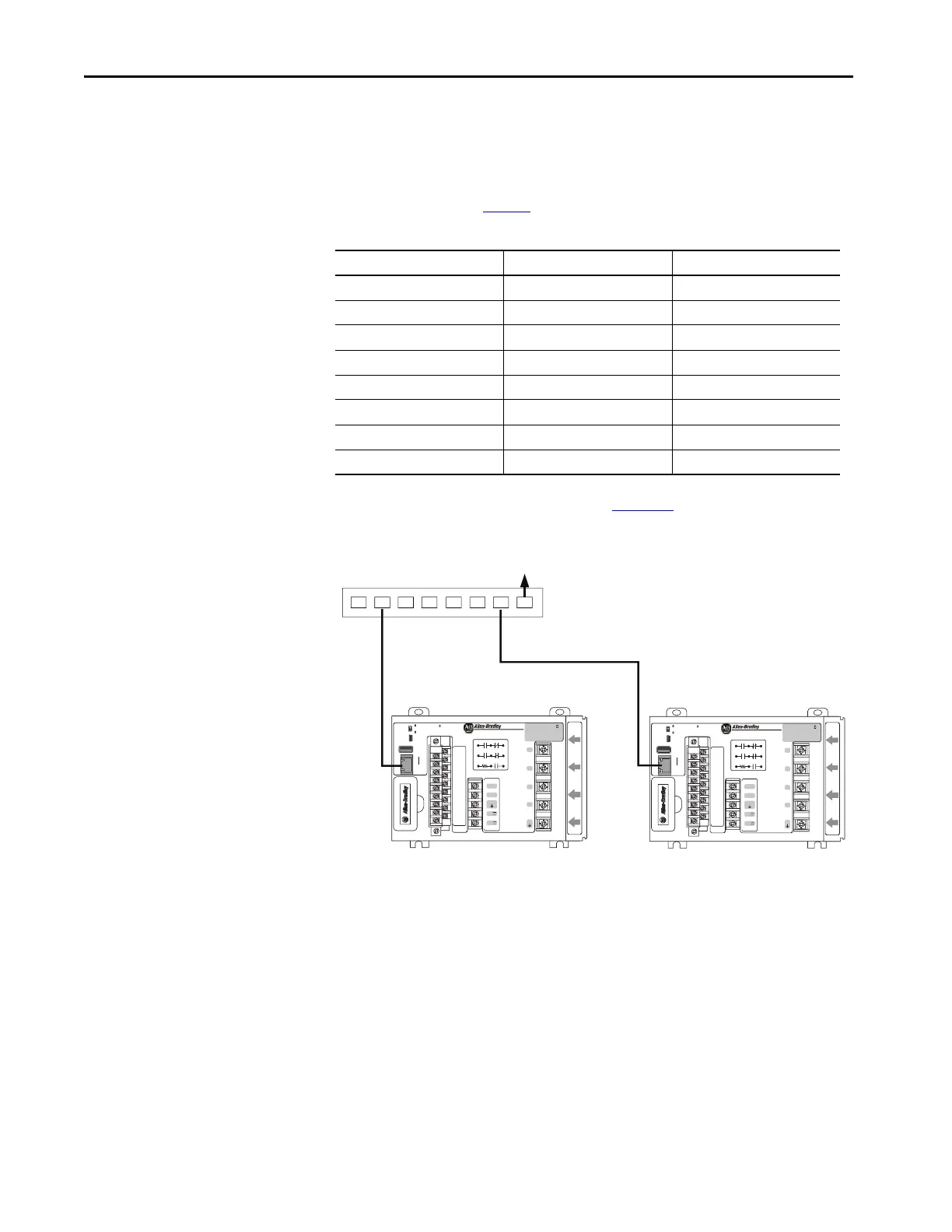

Figure 23 - Typical Ethernet Connections
Table 6 - Cable and Connector Pin Assignments
Terminal Signal Function
1TX+TX+
2TX-TX-
3RX+RX+
4
5
6RX-RX-
7
8
