Roland JUPITER-X Reference Manual

29
Section Controller Parameter
Destination or operation when
used with the [SHIFT] button
LFO
1
Pitch Select PITCH LFO -
2
FILTER Select FILTER-LFO -
3
AMP Select AMP-LFO -
4
TYPE LFO WAVEFORM JP8: LFO WAVEFORM
5
DEPTH
If “PITCH-LFO” is selected
LFO MOD
JP8: LFO MOD
If “FILTER-LFO” is selected
FILTER MOD
JP8: FILTER MOD
If “AMP-LFO” is selected
AMP MOD-STEP
JP8: AMP MOD-STEP
6
RATE LFO RATE JP8: LFO RATE
7
FADE TIME LFO DELAY TIME JP8: LFO DELAY TIME
OSC
8
SYNC
Select SYNC MOD
MODE
JP8: SYNC SWITCH
9
XMOD
Select XMOD MOD
MODE
JP8: SYNC SWITCH
10
OSC1 SEL Select OSC1
11
OSC2 SEL Select OSC2
12
TYPE
If “OSC 1” is selected
OSC1 WAVEFORM
JP8: OSC1 WAVEFORM
If “OSC 2” is selected
OSC2 WAVEFORM
JP8: OSC2 WAVEFORM
13
MOD CROSS MOD JP8: CROSS MOD
14
Pitch
If “OSC 1” is selected
OSC1 RANGE
JP8: OSC1 RANGE
If “OSC 2” is selected
OSC2 RANGE
The “TONE EDIT > OSC2 MODE”
parameter is “NORMAL.”
JP8: OSC2 RANGE
The “TONE EDIT > OSC2 MODE”
parameter is “LOW FREQ.”
JP8: LOW FREQ
15
DETUNE OSC2 FINE TUNE JP8: OSC2 FINE TUNE
16
OSC1 LEVEL OSC1 LEVEL JP8: OSC1 LEVEL
17
OSC2 LEVEL OSC2 LEVEL JP8: OSC2 LEVEL
Section Controller Parameter
Destination or operation when
used with the [SHIFT] button
FILTER
18
[R] Change FILTER TYPE JP8: VINTAGE FLT TYPE
19
[M] Change FILTER TYPE JP8: VINTAGE FLT TYPE
20
[S] Change FILTER TYPE JP8: VINTAGE FLT TYPE
21
HPF HPF JP8: HPF
22
KEY FOLLOW FLT KEY FOLLOW JP8: FLT KEY FOLLOW
23
TYPE FILTER SLOPE JP8: FILTER SLOPE
24
CUTOFF CUTOFF JP8: CUTOFF
25
RESONANCE RESONANCE JP8: RESONANCE
AMP
26
LEVEL AMP LEVEL JP8: AMP LEVEL
ENV1/2
27
DEPTH
If “PITCH ENV” is selected
PIT ENV DEPTH
JP8: PIT ENV DEPTH
If “FILTER ENV” is selected
FLT ENV DEPTH
JP8: FLT ENV DEPTH
If “AMP ENV” is selected
Not operable
-
28
Pitch Select PITCH ENV -
29
FILTER Select FILTER ENV -
30
AMP
Select AMP ENV
(always)
-
31
A ENV1/2 ATTACK JP8: ENV1/2 ATTACK
32
D ENV1/2 DECAY JP8: ENV1/2 DECAY
33
S ENV1/2 SUSTAIN JP8: ENV1/2 SUSTAIN
34
R ENV1/2 RELEASE JP8: ENV1/2 RELEASE
EDIT
35
MONO MONO JP8: KEY MODE
36
UNISON UNISON JP8: KEY MODE
37
PORTAMENTO PORTAMENTO JP8: PORTA TIME
38
SPLIT SPLIT -
39
DUAL DUAL L/R DUAL
* For other parameters, refer to “Parameter Guide” (PDF).
* JP8 parameters are in TONE EDIT.

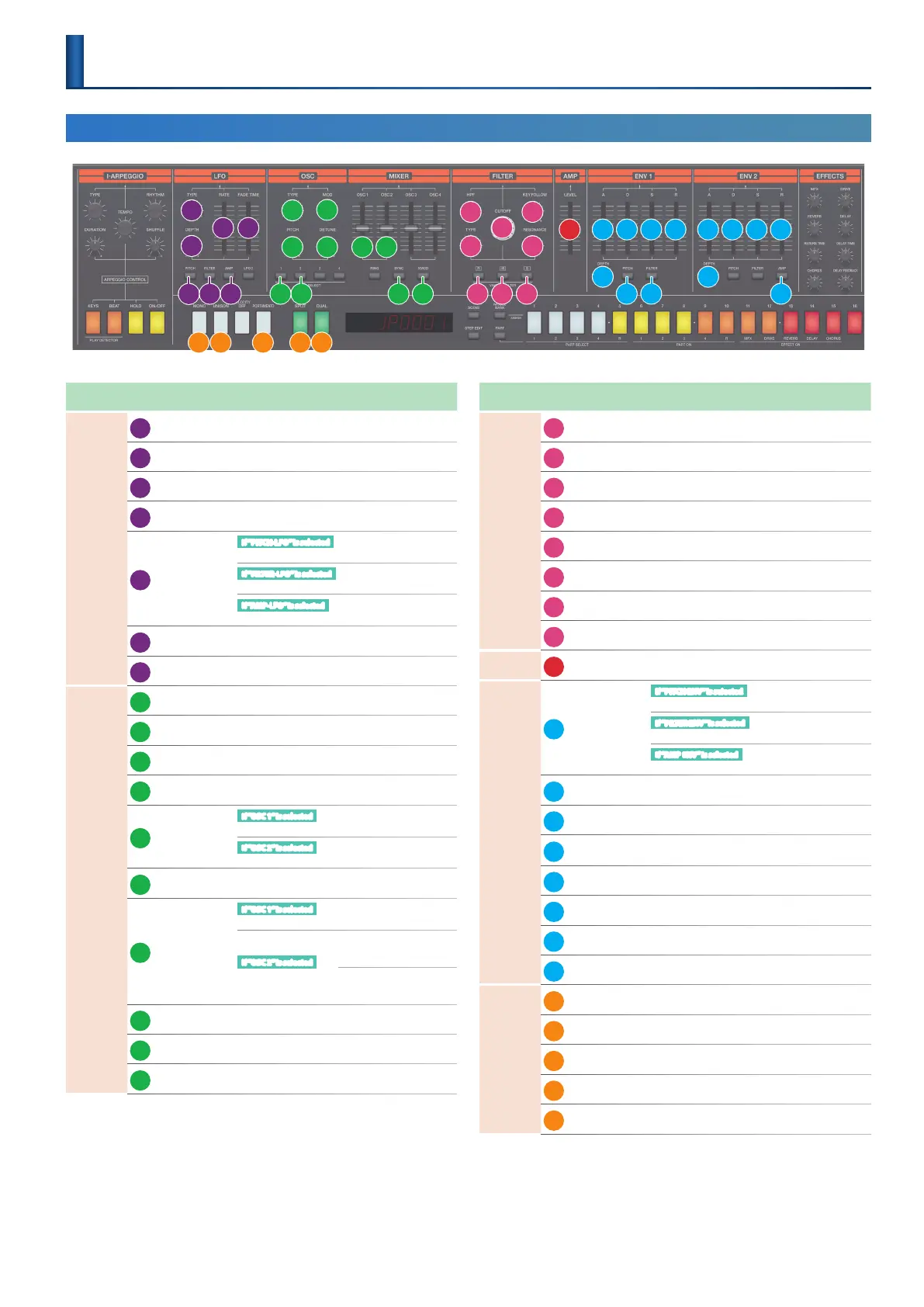

Correspondence Between Controllers and Parameters
JUPITER-8
4
6 7
5
1
2 3
12
14 16 17 15
11
23
21
24
25
22
13
10 8 9 18 19
20
26 31 31 32 32 33 33 34 34
27 27
28
29 30
35 36 37 38 39

Roland JUPITER-X Specifications

Power

power supply	AC 117–240 V, 50/60 Hz
power consumption	20W

Sound and Effects

preset tones	4, 000 or greater
user tones	256
drum kits	90 or greater

Connectivity

bluetooth profile support	A2DP, GATT
headphones jacks	Stereo miniature phone type, Stereo 1/4-inch phone type
main out jacks	1/4-inch phone type, XLR type

Weight and Dimensions

width	1, 090 mm
depth	447 mm
height	119 mm
weight	16.9 kg
