Roland JUPITER-X Reference Manual

33
Editing a Tone (TONE EDIT)
Section Controller Parameter
Destination or operation when
used with the [SHIFT] button
LFO
1
Pitch Select PITCH-LFO (*1) -
2
FILTER Select FILTER-LFO (*1) -
3
AMP Select AMP-LFO (*1) -
4
DEPTH
If “PITCH-LFO” is selected
Pit LFO Dep
SCENE PART EDIT > Pit
LFO Dep
If “FILTER-LFO” is selected
Flt LFO Dep
SCENE PART EDIT > Flt
LFO Dep
If “AMP-LFO” is selected
Amp LFO Dep
SCENE PART EDIT > Amp
LFO Dep
5
RATE Vib Rate
SCENE PART EDIT > Vib
Rate
6
FADE TIME Vib Delay
SCENE PART EDIT > Vib
Delay
OSC
7
OSC1 SEL Select PARTIAL1 PARTIAL1 Sw ON/OFF
8
OSC2 SEL Select PARTIAL2 PARTIAL2 Sw ON/OFF
9
OSC3 SEL Select PARTIAL3 PARTIAL3 Sw ON/OFF
10
OSC4 SEL Select PARTIAL4 PARTIAL4 Sw ON/OFF
11
Pitch Coarse Tune
SCENE PART EDIT >
Coarse Tune
12
DETUNE Fine Tune
SCENE PART EDIT > Fine
Tune
13
OSC1 LEVEL PARTIAL1 LEVEL
TONE EDIT PARTIAL1 >
Level
14
OSC2 LEVEL PARTIAL2 LEVEL
TONE EDIT PARTIAL2 >
Level
15
OSC3 LEVEL PARTIAL3 LEVEL
TONE EDIT PARTIAL3 >
Level
16
OSC4 LEVEL PARTIAL4 LEVEL
TONE EDIT PARTIAL4 >
Level
FILTER
17
KEY-FOLLOW Flt KeyFllw
SCENE PART EDIT > Flt
KeyFllw
18
CUTOFF Cuto SCENE PART EDIT > Cuto
19
RESONANCE Resonance
SCENE PART EDIT >
Resonance
AMP
20
LEVEL
If “Part1–4” is selected
Level
TONE COMMON EDIT
> Level
If “Part5” is selected
Part Level
SCENE PART EDIT > Part
Level
ENV1/2
21
DEPTH
If “PITCH ENV” is selected
Pit ENV Depth
SCENE PART EDIT > Pit
ENV Depth
If “FILTER ENV” is selected
Flt ENV Depth
SCENE PART EDIT > Flt
ENV Depth
If “AMP ENV” is selected
Not operable
-
22
Pitch
Select PITCH ENV
(* ENV1 only)
-
Section Controller Parameter
Destination or operation when
used with the [SHIFT] button
ENV1/2
23
FILTER
Select FILTER ENV
(* ENV1 only)
-
24
AMP
Select AMP ENV
(always)
-
25
A
If “PITCH ENV” is selected
Pit Attack
SCENE PART EDIT > Pit
Attack
If “FILTER ENV” is selected
Flt Attack
SCENE PART EDIT > Flt
Attack
If “AMP ENV” is selected
Amp Attack
SCENE PART EDIT > Amp
Attack
26
D
If “PITCH” is selected
Pit Decay
SCENE PART EDIT > Pit
Decay
If “FILTER ENV” is selected
Flt Decay
SCENE PART EDIT > Flt
Decay
If “AMP ENV” is selected
Amp Decay
SCENE PART EDIT > Amp
Decay
27
S
If “PITCH” is selected
Pit Sustain
SCENE PART EDIT > Pit
Sustain
If “FILTER ENV” is selected
Flt Sustain
SCENE PART EDIT > Flt
Sustain
If “AMP ENV” is selected
Amp Sustain
SCENE PART EDIT > Amp
Sustain
28
R
If “PITCH” is selected
Pit Release
SCENE PART EDIT > Pit
Release
If “FILTER ENV” is selected
Flt Release
SCENE PART EDIT > Flt
Release
If “AMP ENV” is selected
Amp Release
SCENE PART EDIT > Amp
Release
EDIT
29
MONO
MONO
TONE COMMON EDIT >
Mono Poly
For VOCODER
MONO
SCENE PART EDIT >
Mono/Poly
30
UNISON
UNISON
TONE COMMON EDIT >
Unison Sw
For VOCODER
UNISON
SCENE PART EDIT >
Unison Sw
31
VELOCITY OFF VELOCITY OFF
SCENE PART EDIT > KBD
Velo
32
PORTAMENTO PORTAMENTO
TONE COMMON EDIT >
PORTA TIME
33
SPLIT SPLIT -
34
DUAL DUAL L/R DUAL
* 1 The priority order for LFO type is PITCH > FILTER > AMP.
* For other parameters, refer to “Parameter Guide” (PDF).

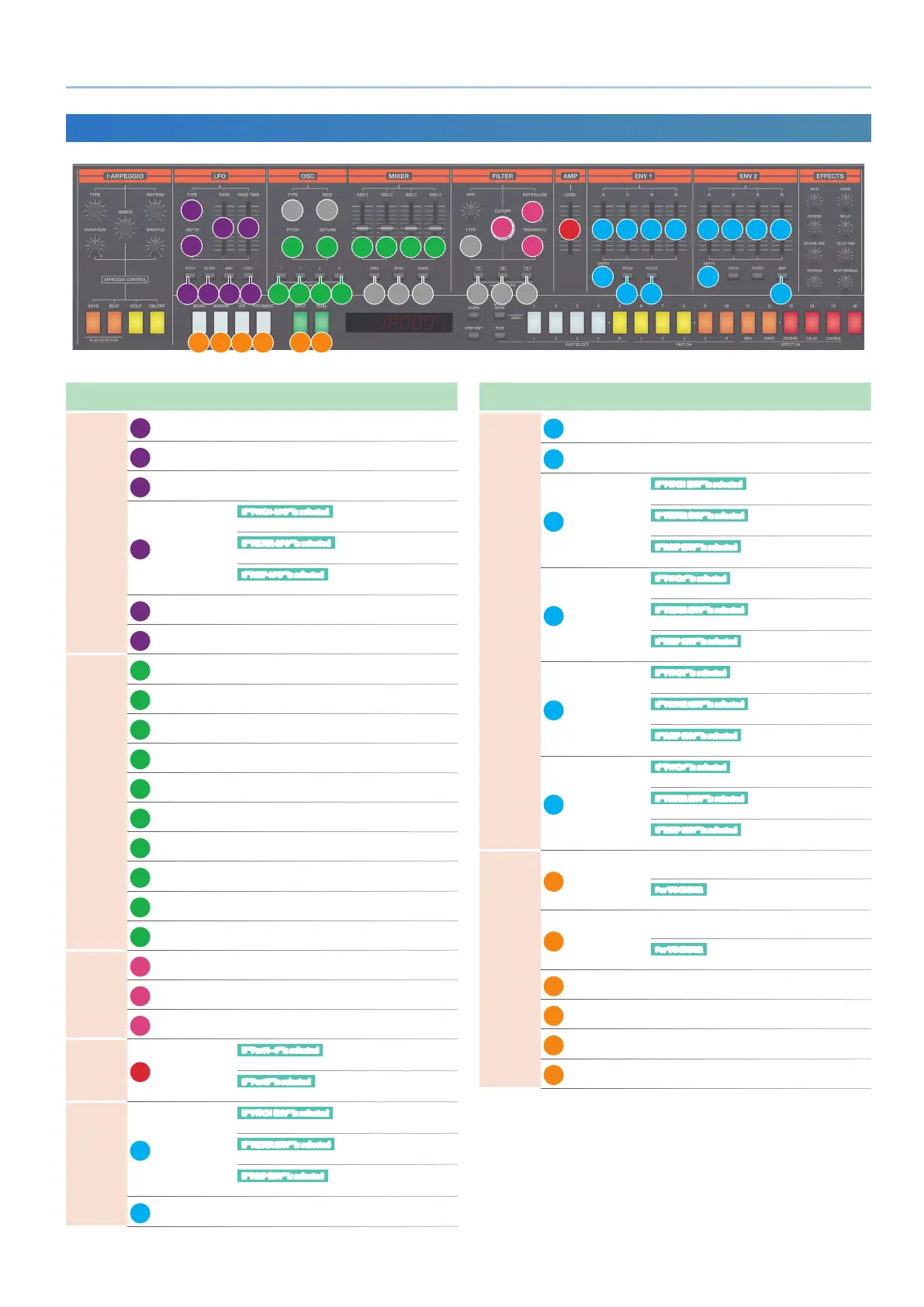

XV-5080, RD-PIANO, and Other Tones (When the SCENE EDIT Page is Shown)
5
7 8
6
1
2 3 4
16
18 20 21 22 23 19
10 12
28
29
30
27
17
9 11 14 13 15 24 25
26
31 36 36 37 37 38 38 39 39
32 32
33
34 35
40 41 43 42 44 45
