Roland JUPITER-X Reference Manual

31

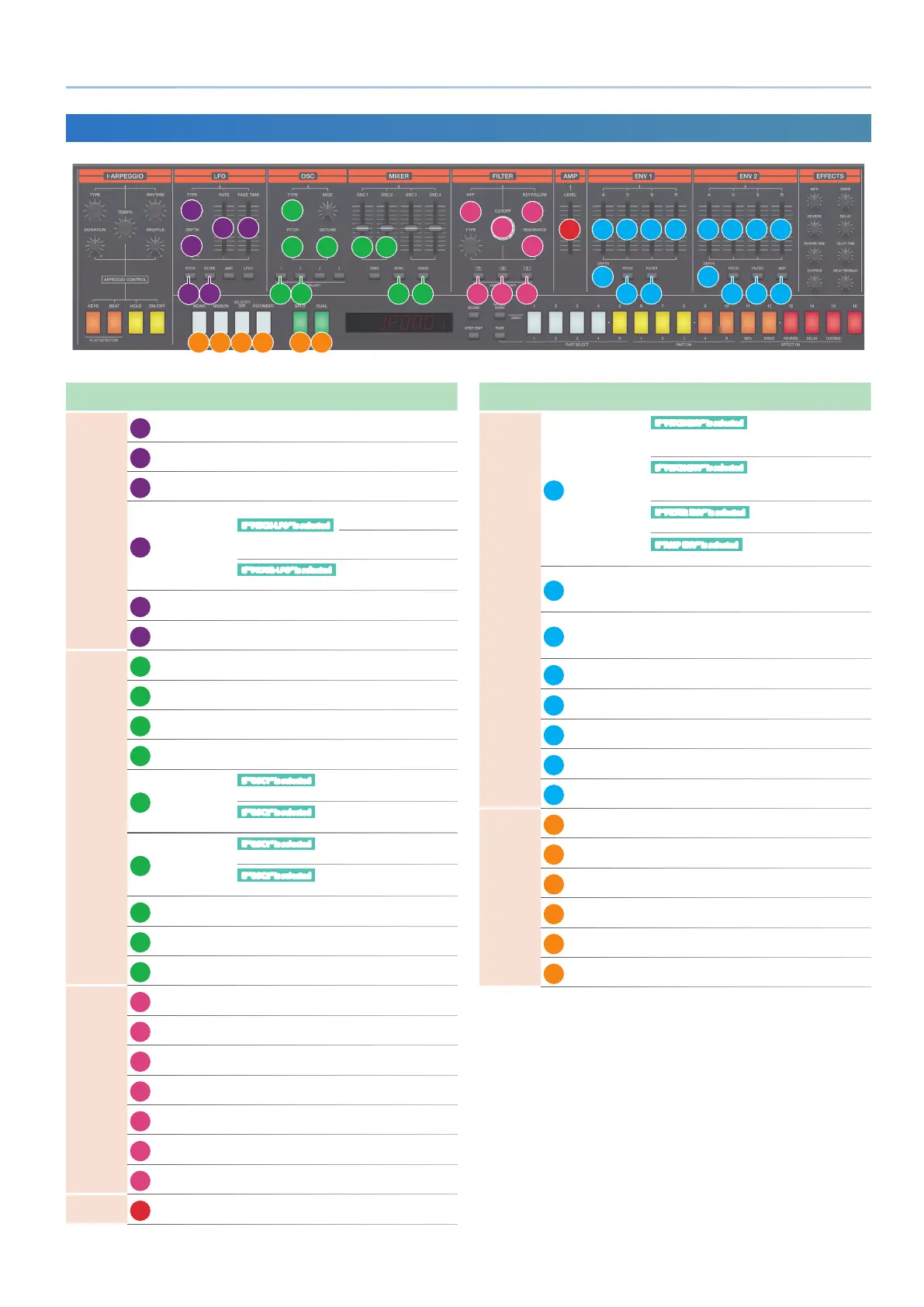

Editing a Tone (TONE EDIT)
Section Controller Parameter
Destination or operation when
used with the [SHIFT] button
LFO
1
Pitch Select PITCH-LFO -
2
FILTER Select FILTER-LFO -
3
TYPE LFO WAVEFORM JX8P: LFO WAVEFORM
4
DEPTH
If “PITCH-LFO” is selected
OSC LFO MOD
If “OSC1” is selected
JX8P: OSC1 LFO MOD
If “OSC2” is selected
JX8P: OSC2 LFO MOD
If “FILTER-LFO” is selected
FILTER MOD
JX8P: FILTER MOD
5
RATE LFO RATE JX8P: LFO RATE
6
FADE TIME LFO DELAY TIME JX8P: LFO DELAY TIME
OSC
7
OSC1 SEL Select OSC1 -
8
OSC2 SEL Select OSC2 -
9
SYNC
SYNC MOD MODE
ON/OFF
JX8P: OSC2 MOD MODE
10
XMOD
XMOD MOD MODE
ON/OFF
JX8P: OSC2 MOD MODE
11
TYPE
If “OSC1” is selected
OSC1 WAVEFORM
JX8P: OSC1 WAVEFORM
If “OSC2” is selected
OSC2 WAVEFORM
JX8P: OSC2 WAVEFORM
12
Pitch
If “OSC1” is selected
OSC1 TUNE
JX8P: OSC1 TUNE
If “OSC2” is selected
OSC2 TUNE
JX8P: OSC2 TUNE
13
DETUNE OSC2 FINE TUNE JX8P: OSC2 FINE TUNE
14
OSC1 LEVEL OSC1 LEVEL JX8P: OSC1 LEVEL
15
OSC2 LEVEL OSC2 LEVEL JX8P: OSC2 LEVEL
FILTER
16
[R] Change FILTER TYPE JX8P: VINTAGE FLT TYPE
17
[M] Change FILTER TYPE JX8P: VINTAGE FLT TYPE
18
[S] Change FILTER TYPE JX8P: VINTAGE FLT TYPE
19
HPF HPF-STEP JX8P: HPF-STEP
20
KEY-FOLLOW FLT KEY FOLLOW JX8P: FLT KEY FOLLOW
21
CUTOFF CUTOFF JX8P: CUTOFF
22
RESONANCE RESONANCE JX8P: RESONANCE
AMP
23
LEVEL AMP LEVEL JX8P: AMP LEVEL
Section Controller Parameter
Destination or operation when
used with the [SHIFT] button
ENV1/2
24
DEPTH
If “PITCH ENV” is selected
If “OSC1” is selected
OSC1 PIT ENV
JX8P: OSC1 PIT ENV
If “PITCH ENV” is selected
If “OSC2” is selected
OSC2 PIT ENV
JX8P: OSC2 PIT ENV
If “FILTER ENV” is selected
FLT ENV DEPTH
JX8P: FLT ENV DEPTH
If “AMP ENV” is selected
Not operable
-
25
Pitch
JX8P: For the ENV
specied in OSC ENV
MODE
Select PITCH ENV
-
26
FILTER
JX8P: For the ENV
specied in FILTER ENV
MODE
Select FILTER ENV
-
27
AMP
Select AMP ENV
(always)
-
28
A ENV1/2 ATTACK JX8P: ENV1/2 ATTACK
29
D ENV1/2 DECAY JX8P: ENV1/2 DECAY
30
S ENV1/2 SUSTAIN JX8P: ENV1/2 SUSTAIN
31
R ENV1/2 RELEASE JX8P: ENV1/2 RELEASE
EDIT
32
MONO MONO JX8P: KEY MODE
33
UNISON UNISON JX8P: KEY MODE
34
VELOCITY OFF VELOCITY OFF
SCENE PART EDIT
> KBD
Velo
35
PORTAMENTO PORTAMENTO JX8P: PORTA TIME
36
SPLIT SPLIT -
37
DUAL DUAL L/R DUAL
* For other parameters, refer to “Parameter Guide” (PDF).
* JX8P parameters are in TONE EDIT.
JX-8P
3
5 6
4
1
2
11
12 14 15 13
8
19
21
22
20
7 9 10 16 17
18
23 28 28 29 29 30 30 31 31
24 24
25
26 27
32 33 35 34 36 37
25
26

Roland JUPITER-X Specifications

Power

power supply	AC 117–240 V, 50/60 Hz
power consumption	20W

Sound and Effects

preset tones	4, 000 or greater
user tones	256
drum kits	90 or greater

Connectivity

bluetooth profile support	A2DP, GATT
headphones jacks	Stereo miniature phone type, Stereo 1/4-inch phone type
main out jacks	1/4-inch phone type, XLR type

Weight and Dimensions

width	1, 090 mm
depth	447 mm
height	119 mm
weight	16.9 kg
