50

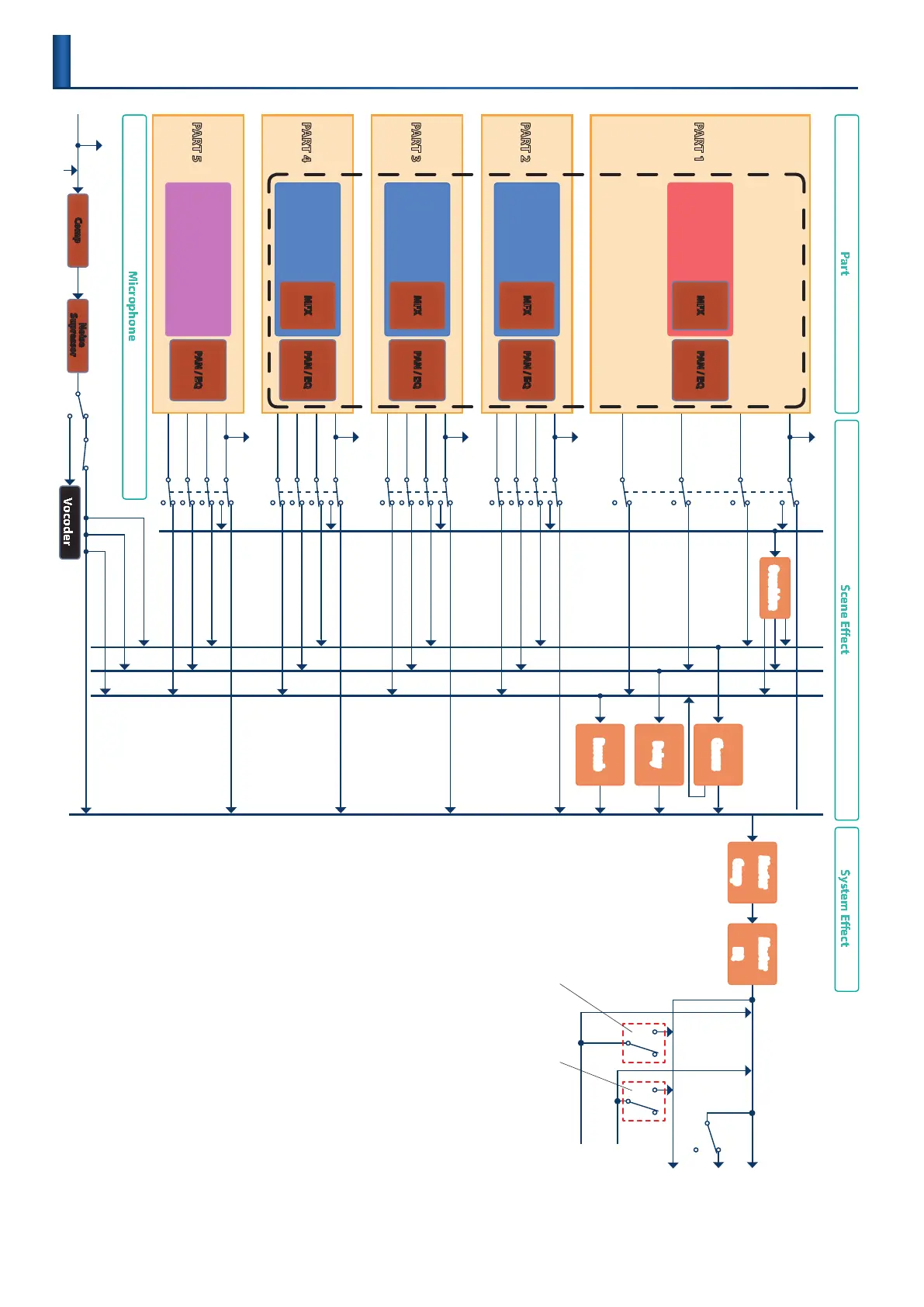

Sound Engine Routing Details
5 The RD and VOCODER models can be selected only for PART 1.
5 DRUM KIT can be selected only for PART 5.
5 The MFX of PART 5 can be specied if the SCENE setting Follow Tone MFX
is OFF.
5 The “Tone Remain” function, which maintains continuity of the sound
when you switch sounds, operates on PART 1–4 (the area within the
dashed line). However, if the RD or VOCODER model (selectable only for
PART 1) is selected, the Tone Remain function does not operate.
5 Bluetooth audio is only for input. It is not possible to output to a
Bluetooth speaker or headphones.
OUTPUT
SPEAKER
USB OUT
Reverb
Delay
Overdrive
THRU
DRIVE
OUTPUT
THRU
DRIVE
(mute)
THRU
DRIVE
(mute)
THRU
DRIVE
(mute)
CHORUS SEND
DELAY SEND
REVERB SEND
USB IN 1
USB IN 2
CHORUS SEND
DELAY SEND
REVERB SEND
OUTPUT
USB IN 3
CHORUS SEND
DELAY SEND
REVERB SEND
OUTPUT
USB IN 4
CHORUS SEND
DELAY SEND
REVERB SEND
OUTPUT
USB IN 5
CHORUS SEND
DELAY SEND
REVERB SEND
OUTPUT
MIC REVERB SEND
MIC DELAY SEND
MIC CHORUS SEND
MIC THRU SW
Noise
Supressor
Comp
USB OUT MIC
USB IN MIC
Chorus
Master
Comp
Master
EQ
PART 2
Tone
MFX PAN / EQ
PART 3
Tone
MFX PAN / EQ
PART 4
Tone
MFX PAN / EQ
PART 5
Tone (drum kit)
PAN / EQ
PART 1
Tone
MFX PAN / EQ
USB AUDIO
USB THRU
AUX/BT
USB THRU
AUX IN/Bluetooth Audio
USB IN
DEFAULT: OFF DEFAULT: OFF
To Next Page
