Roland JUPITER-X Reference Manual

35
Editing a Tone (TONE EDIT)
Section Controller Parameter
Destination or operation when
used with the [SHIFT] button
CTRL
1
VOLUME VOLUME -
2
WHEEL1
Assigned function
(*2)
SCENE COMMON EDIT >
WHEEL1
3
WHEEL2
Assigned function
(*2)
SCENE COMMON EDIT >
WHEEL2
4
SL1
Assigned function
(*2)
SCENE COMMON EDIT
> SL1
5
SL2
Assigned function
(*2)
SCENE COMMON EDIT
> SL2
6
S1
Assigned function
(*2)
SCENE COMMON EDIT
> S1
7
S2
Assigned function
(*2)
SCENE COMMON EDIT
> S2
8
S3
Assigned function
(*2)
SCENE COMMON EDIT
> S3
I-ARP
9
TYPE Type
ARP COMMON EDIT >
Type
10
TEMPO Change BPM Change BPM in 0.01 units
11
RHYTHM Rytm
ARP COMMON EDIT >
Rytm
12
DURATION G-Duration
ARP COMMON EDIT >
G-Duration
13
SHUFFLE G-Shue
ARP COMMON EDIT >
G-Shue
EFFECTS
14
MFX
Assign Parameters
(*3)
The “SCENE PART MFX >
FllwToneMFX” parameter is “ON.”
Parameter corresponding
to “TONE MFX” (*2)
The “SCENE PART MFX >
FllwToneMFX” parameter is “OFF.”
Parameter corresponding
to “SCENE PART MFX” (*2)
15
REVERB
The “SCENE PART EDIT >
Output” parameter is “THRU.”
Rev Send
SCENE PART EDIT > Rev
Send
The “SCENE PART EDIT >
Output” parameter is “DRIVE.”
Ren Send Lev
SCENE EFFECT: OD > Rev
Send Lev
16
REVERB TIME
The “SYSTEM EFFECT: Rev >
Source” parameter is “SYS.”
Time
SYSTEM EFFECT: Rev
> Time
The “SYSTEM EFFECT: Rev >
Source” parameter is “SCENE.”
Time
SCENE EFFECT: Rev >
Time
17
CHORUS
The “SCENE PART EDIT >
Output” parameter is “THRU.”
Cho Send
SCENE PART EDIT > Cho
Send
The “SCENE PART EDIT >
Output” parameter is “DRIVE.”
Cho Send Lev
SCENE EFFECT: OD > Cho
Send Lev
Section Controller Parameter
Destination or operation when
used with the [SHIFT] button
EFFECTS
18
DRIVE Drive
SCENE EFFECT: OD >
Drive
19
DELAY
The “SCENE PART EDIT >
Output” parameter is “THRU.”
Dly Send
SCENE PART EDIT > Dly
Send
The “SCENE PART EDIT >
Output” parameter is “DRIVE.”
Dly Send Lev
SCENE EFFECT: OD > Dly
Send Lev
20
DELAY TIME
The “SYSTEM EFFECT: Dly >
Source” parameter is “SYS.”
The “Dly Sync” parameter
is “OFF.”
Dly Msec
SYSTEM EFFECT: Dly >
Dly Msec
The “SYSTEM EFFECT: Dly >
Source” parameter is “SYS.”
The “Dly Sync” parameter
is “ON.”
Dly Note
SYSTEM EFFECT: Dly >
Dly Note
The “SYSTEM EFFECT: Dly >
Source” parameter is “SCENE.”
The “Dly Sync” parameter
is “OFF.”
Dly Msec
SCENE EFFECT: Dly >
Dly Msec
The “SYSTEM EFFECT: Dly >
Source” parameter is “SCENE.”
The “Dly Sync” parameter
is “ON.”
Dly Note
SCENE EFFECT: Dly >
Dly Note
21
DELAY
FEEDBACK
The “SYSTEM EFFECT: Dly >
Source” parameter is “SYS.”
Feedback
SYSTEM EFFECT: Dly >
Feedback
The “SYSTEM EFFECT: Dly >
Source” parameter is “SCENE.”
Feedback
SCENE EFFECT: Dly >
Feedback
* 1 For parameters whose function can be assigned, the factory-set
destination is listed. If the system parameter “Source” setting of a
controller is set to “SYSTEM,” you’ll move to the corresponding SYSTEM
parameter.
& “System Parameter List” (p. 44)
* 2 The functions that can be assigned dier depending on the controller.
& “List of functions that can be assigned to the controllers” (p. 47)
* 3 The corresponding parameter diers depending on the Type of MFX.
& “MFX Assign Parameters” (p. 36)

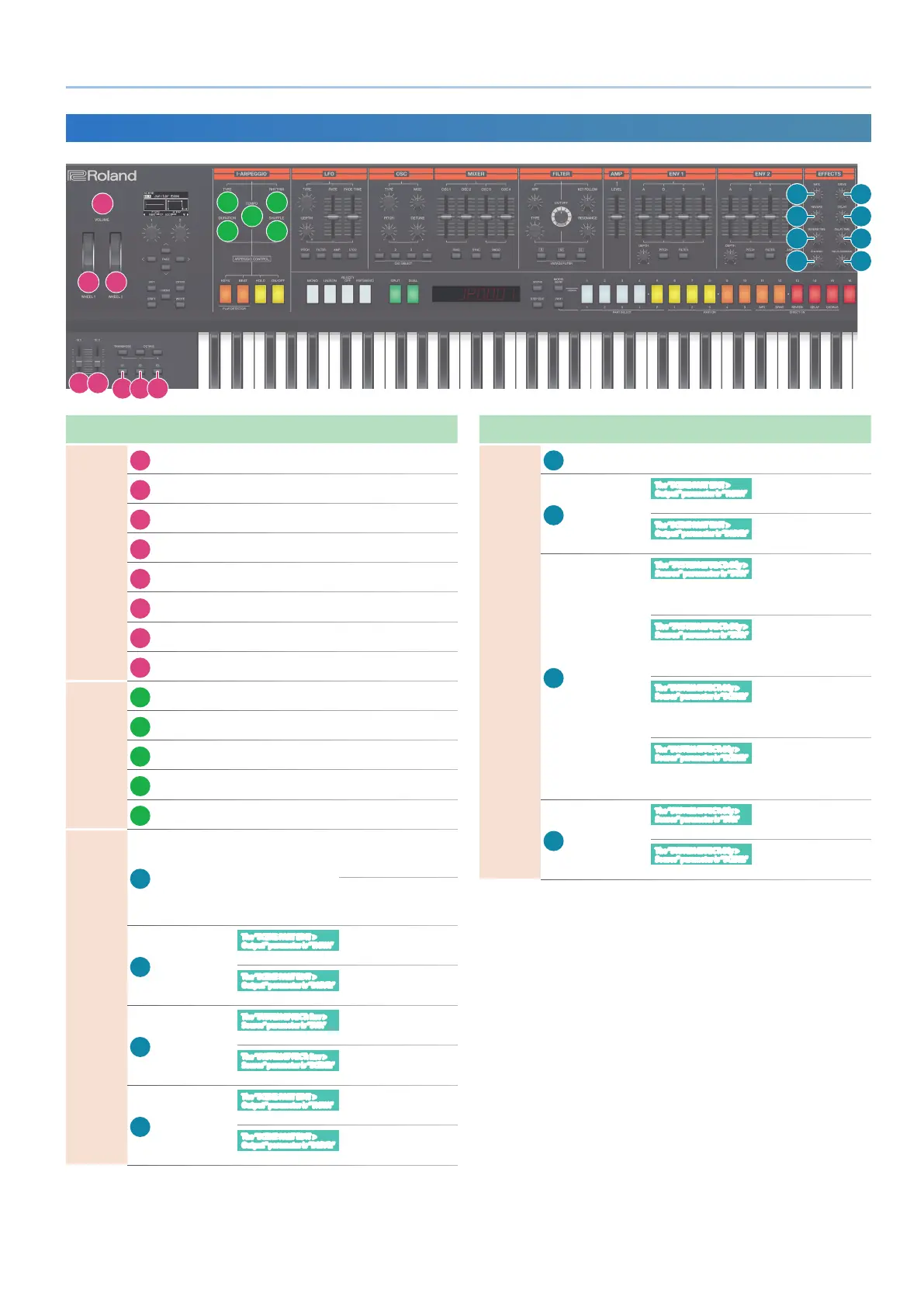

Controllers Common to All Models
4 5
1
2 3
12
11
13
10
9
18
19
20
6
7
8
14
15
16
17 21
