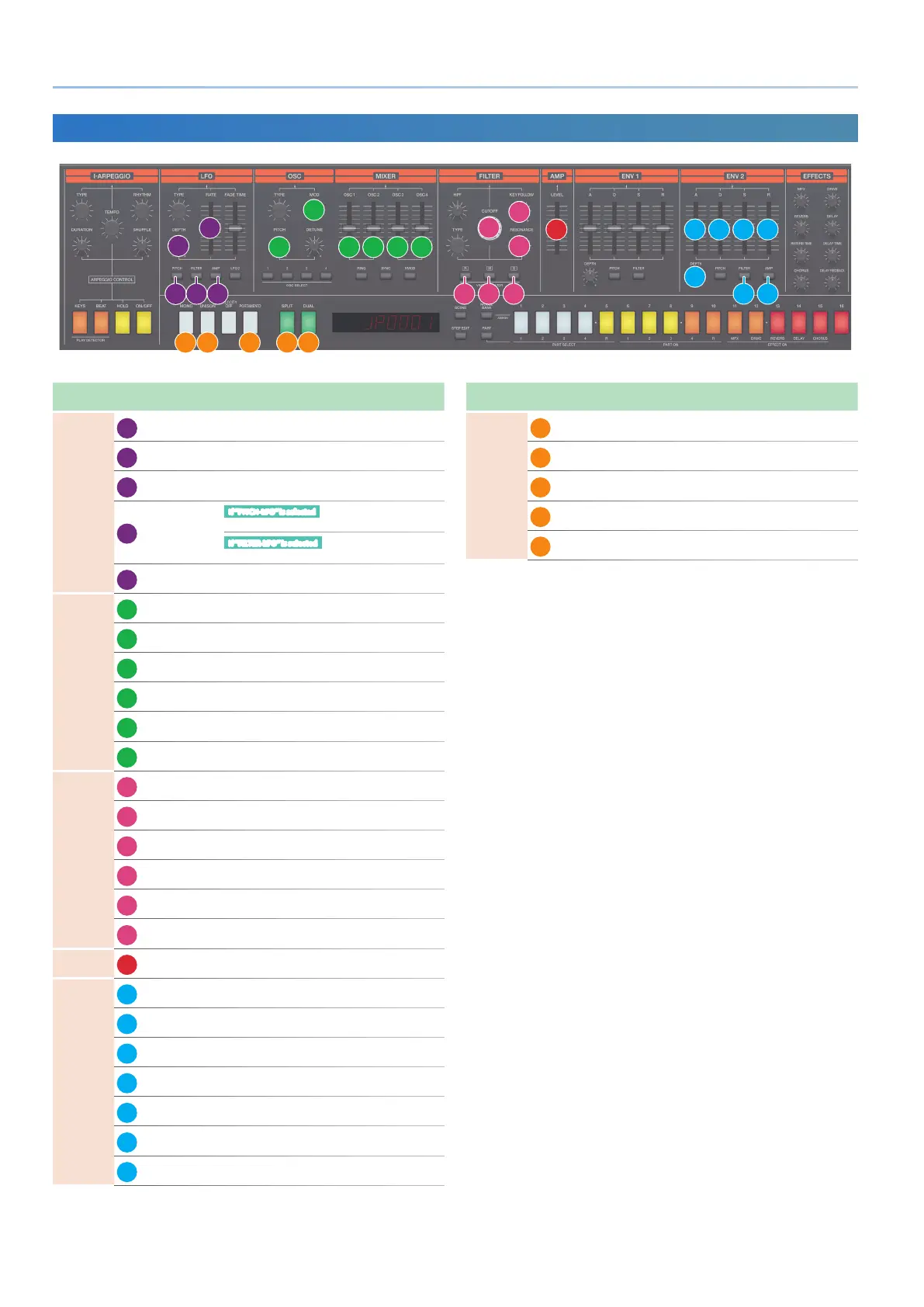

Editing a Tone (TONE EDIT)
Section Controller Parameter
Destination or operation when
used with the [SHIFT] button
LFO
1
Pitch Select PITCH-LFO -
2
FILTER Select FILTER-LFO -
3
TYPE LFO WAVEFORM SH: LFO WAVEFORM
4
DEPTH
If “PITCH-LFO” is selected
OSC LFO MOD
SH: OSC LFO MOD
If “FILTER-LFO” is selected
FILTER MOD
SH: FILTER MOD
5
RATE LFO RATE SH: LFO RATE
OSC
6
MOD PULSE WIDTH MOD SH: PULSE WIDTH MOD
7
Pitch OSC RANGE SH: OSC RANGE
8
OSC1 LEVEL PW LEVEL SH: PW LEVEL
9
OSC2 LEVEL SAW LEVEL SH: SAW LEVEL
10
OSC3 LEVEL SUB OSC LEVEL SH: SUB OSC LEVEL
11
OSC4 LEVEL NOISE LEVEL SH: NOISE LEVEL
FILTER
12
[R]
Change FILTER TYPE
SH: VINTAGE FLT TYPE
13
[M]
Change FILTER TYPE
SH: VINTAGE FLT TYPE
14
[S]
Change FILTER TYPE
SH: VINTAGE FLT TYPE
15
KEY-FOLLOW FLT KEY FOLLOW SH: FLT KEY FOLLOW
16
CUTOFF CUTOFF SH: CUTOFF
17
RESONANCE RESONANCE SH: RESONANCE
AMP
18
LEVEL AMP LEVEL SH: AMP LEVEL
ENV2
19
DEPTH FLT ENV DEPTH SH: FLT ENV DEPTH
20
FILTER Select G-AMP SH: AMP ENV SEL
21
AMP Select ENV F&A SH: AMP ENV SEL
22
A ENV ATTACK SH: ENV ATTACK
23
D ENV DECAY SH: ENV DECAY
24
S ENV SUSTAIN SH: ENV SUSTAIN
25
R ENV RELEASE SH: ENV RELEASE
Section Controller Parameter
Destination or operation when
used with the [SHIFT] button
EDIT
26
MONO MONO SH: KEY MODE
27
UNISON UNISON SH: KEY MODE
28
PORTAMENTO PORTAMENTO SH: PORTA TIME
29
SPLIT SPLIT -
30
DUAL DUAL L/R DUAL
* For other parameters, refer to “Parameter Guide” (PDF).
* SH
parameters are in TONE EDIT.
SH-101
5
4
1
2 3
7 8 9 10 11
16
17
15
6
12 13
14
18 22 23 24 25
19
21 20
26 27 28 29 30

Roland JUPITER-X Specifications

Power

power supply	AC 117–240 V, 50/60 Hz
power consumption	20W

Sound and Effects

preset tones	4, 000 or greater
user tones	256
drum kits	90 or greater

Connectivity

bluetooth profile support	A2DP, GATT
headphones jacks	Stereo miniature phone type, Stereo 1/4-inch phone type
main out jacks	1/4-inch phone type, XLR type

Weight and Dimensions

width	1, 090 mm
depth	447 mm
height	119 mm
weight	16.9 kg
