Roland JUPITER-X Reference Manual

5

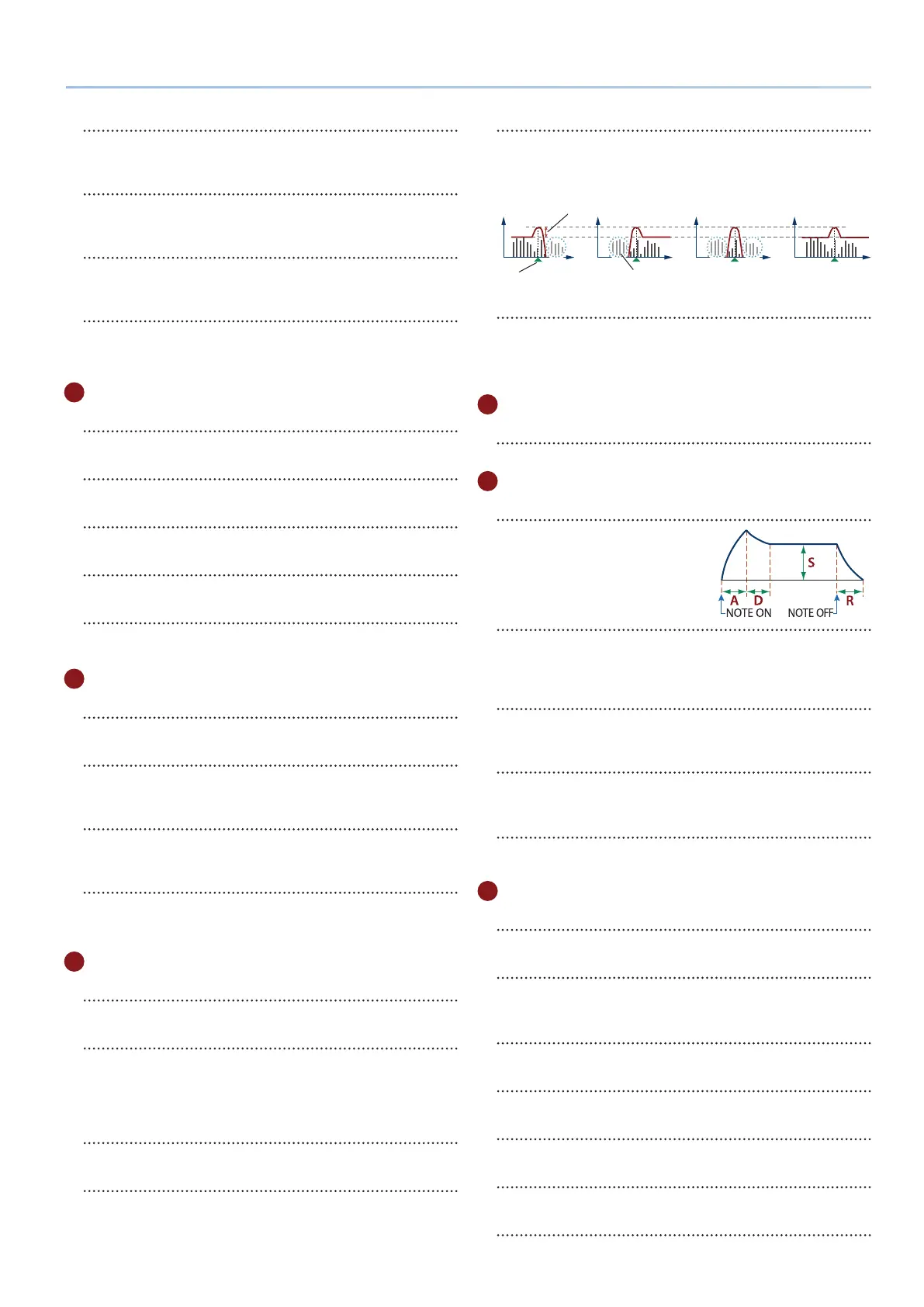

Panel Descriptions
[PITCH] button
If you press this button to make it light, the [DEPTH] knob
adjusts the vibrato depth.
[FILTER] button
If you press this button to make it light, the [DEPTH] knob
adjusts the wah depth.
[AMP] button
If you press this button to make it light, the [DEPTH] knob
adjusts the tremolo depth.
[LFO 2] button
There are two LFOs. If you press this button to make it light, the
controls of the LFO section make settings for LFO2.
When the button is unlit, this section makes settings for LFO1.
4
OSC (Oscillator) section
[TYPE] knob
Selects the oscillator waveform.
[MOD] knob
Adjusts the depth of modulation.
[PITCH] knob
Adjusts the pitch of the oscillator.
[DETUNE] knob
Finely adjusts the pitch of the oscillator.
OSC SELECT [1] [2] [3] [4] buttons
Selects the oscillator that is edited.
You can also select multiple oscillators.
5
MIXER section
[OSC 1] [OSC 2] [OSC 3] [OSC 4] ‘sliders
Adjusts the volume of each oscillator.
[RING] button
Produces a metallic tonal character by multiplying OSC1 and
OSC2. Use the [MOD] knob to adjust the amount of change.
[SYNC] button
Creates a complex waveform by forcibly restarting OSC1 in
synchronization with the cycle of OSC2.
[XMOD] button
Species the amount by which the OSC2 waveform varies the
frequency of OSC1. Use the [MOD] knob to adjust the amount
of change.
6
FILTER section
[HPF] knob
Species the cuto frequency of the high-pass lter.
[KEY FOLLOW] knob
Allows the lter cuto frequency to vary according to the key
that you play. If this knob is turned toward the right, the cuto
rises for higher notes. If it is turned toward the left, the cuto
falls for higher notes.
[CUTOFF] knob
Adjusts the cuto frequency of the lter.
[TYPE] knob
Species the type of lter.
[RESONANCE] knob
Resonance emphasizes the sound in the region of the lter
cuto frequency.
LPF HPF BPF PKG
Cuto frequency
Resonance
Cut region
VINTAGE FILTER [R] [M] [S] ‘buttons
If a vintage type model is selected, these buttons change the
type of lter.
[R] models a Roland lter, and [M] and [S] model the lters of
vintage synthesizers made by other manufacturers.
7
AMP section
[LEVEL] slider
Adjusts the volume.
8
ENV 1/ENV 2 section
[A] [D] [S] [R] sliders
A: Attack time
D: Decay time
S: Sustain level
R: Release time
[DEPTH] knob
Used in conjunction with the [PITCH] button and [FILTER]
button, this knob species the depth of each envelope. If the
knob is in the center, no eect is applied.
[PITCH] button
If this button is on (lit), the [DEPTH] knob and [A] [D] [S] [R]
sliders edit the PITCH envelope.
[FILTER] button
If this button is on (lit), the [DEPTH] knob and [A] [D] [S] [R]
sliders edit the FILTER envelope.
[AMP] button (ENV 2 only)
If this button is on (lit), the [A] [D] [S] [R] sliders edit the AMP
envelope.
9
EFFECTS section
[MFX] knob
Adjusts the MFX depth (individually for each part).
[DRIVE] knob
Adjusts the amount of distortion (for all parts together).
* Valid only for parts whose Part: Output is “DRIVE”
[REVERB] knob
Adjusts the depth of reverb (individually for each part).
[REVERB TIME] knob
Species the length of reverb (for all parts together).
[CHORUS] knob
Adjusts the amount of chorus (individually for each part).
[DELAY] knob
Adjusts the amount of delay (individually for each part).
[DELAY TIME] knob
Adjusts the delay time (for all parts together).

Roland JUPITER-X Specifications

Power

power supply	AC 117–240 V, 50/60 Hz
power consumption	20W

Sound and Effects

preset tones	4, 000 or greater
user tones	256
drum kits	90 or greater

Connectivity

bluetooth profile support	A2DP, GATT
headphones jacks	Stereo miniature phone type, Stereo 1/4-inch phone type
main out jacks	1/4-inch phone type, XLR type

Weight and Dimensions

width	1, 090 mm
depth	447 mm
height	119 mm
weight	16.9 kg
