Panel Descriptions

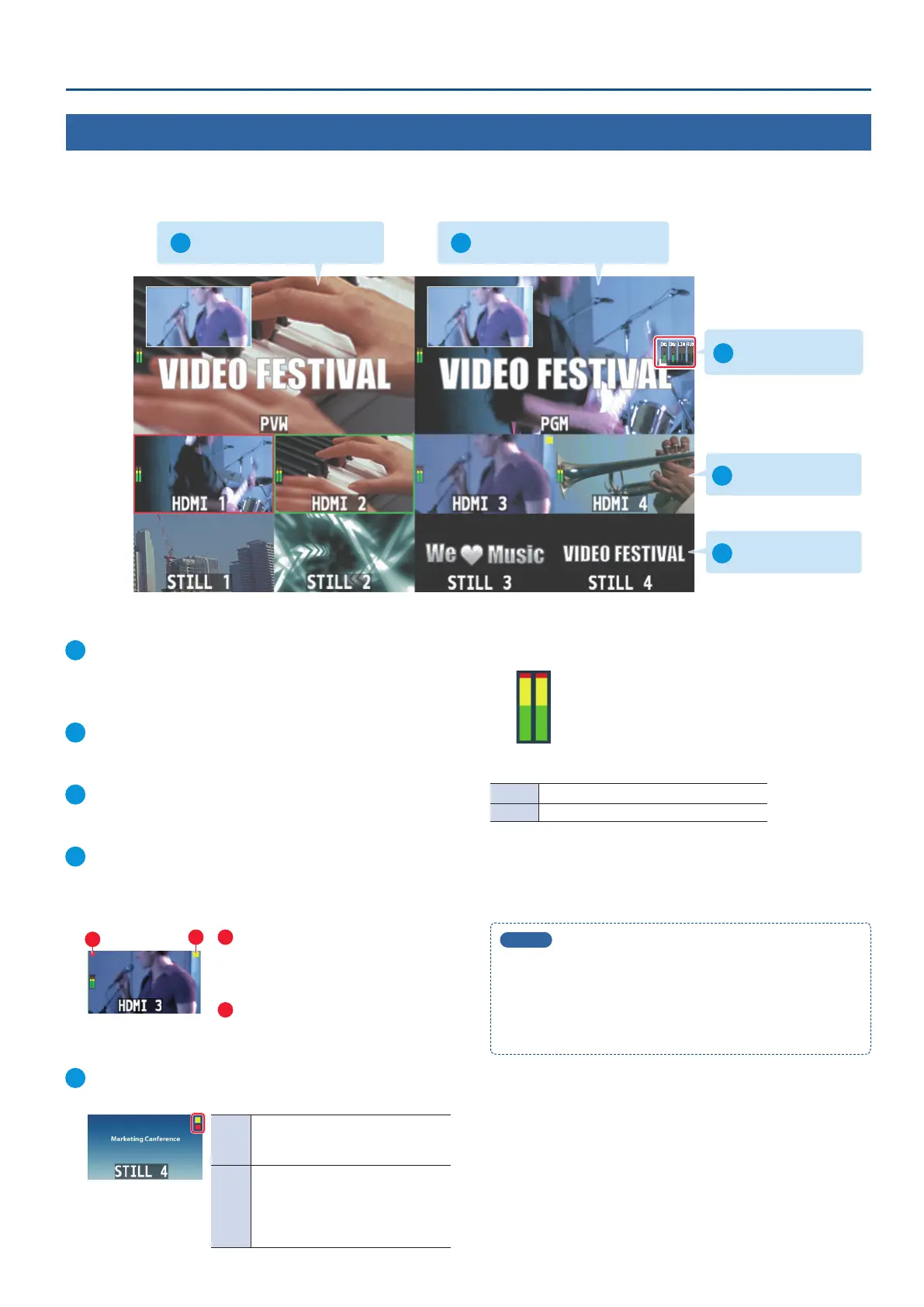

Multi-View Display
This unit supports multi-view output. This feature lets you split up the screen into sections and display the nal output video, preview video, input
video and so on with an external monitor.
The multi-view is output from the OUTPUT 2 connector by factory default.
1 PVW (preview) section 2 PGM (program) section
1 PVW (preview) section
Displays the preview output video (the video to be output next).
* The fade-in/out eect (p. 23) is not reected here.
2 PGM (program) section
Displays the nal output video.
3 Audio level meter
Displays the level meter for audio input from the audio jacks.
4 Input videos section
Displays video input via INPUT 1–4 connectors.
The nal video output and preview output video (the video to be
output next) are displayed with tally frames.
1
2
1
REC indicator
If a camera that supports the REC status
function is connected, this is shown
when the camera’s REC button is pressed.
2
PinP indicator
Shows that this has been selected as a
video source for PinP compositing.
5 Still images section
Shows the loaded still images (p. 20, 21).
Yellow
PinP indicator
Shows that this has been selected as
a video source for PinP compositing.
Red
STILL indicator
Shows that a still image is being output.
* Only when pressing the [1/5]–[4/8]
buttons and outputting a still image
(p. 22).
Audio level meter indication
Red: Excessive
Yellow: Suitable
Green: Insucient
(dB)
-30
-20
-6
0
-50
The following status marks are shown below the level meter.
MT The mute function (p. 37) is on.
A.F The audio follow function (p. 36) is on.
MEMO
5
For details on the cameras that support the REC status
function, refer to the Roland website.
https://proav.roland.com/
5
The menu is shown on the monitor that’s connected to the
OUTPUT 2 connector.
3 Audio level meter
4 Input videos section
5 Still images section
