2.7.5 Static pressure
Note
For Static pressure sensor calibration, see page 92.

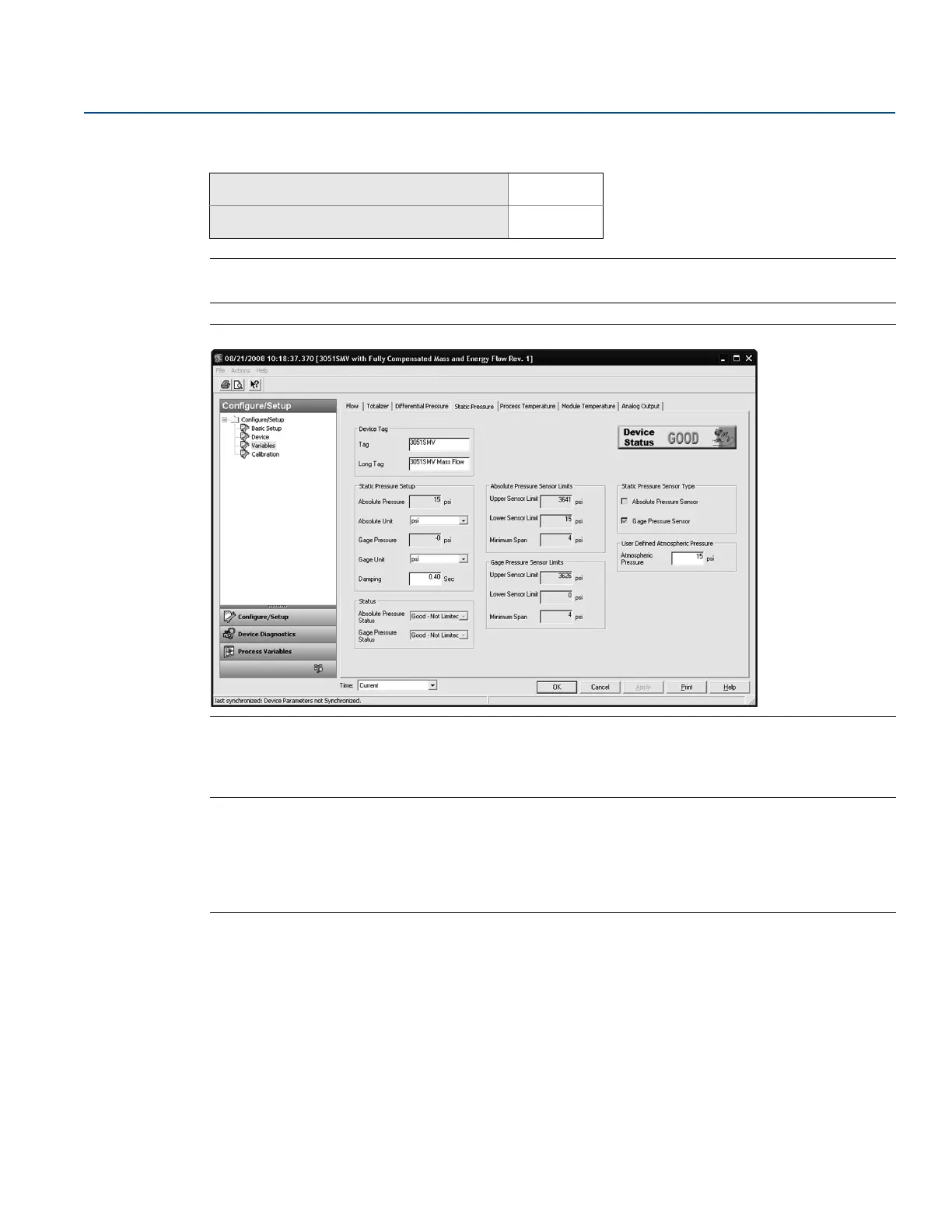

Figure 2-37. Variables - Static Pressure Tab
Under the Static Pressure Setup heading, edit the Absolute Pressure Units and Gage Pressure Units as
needed. The static pressure Damping may also be edited.
Note
The transmitter may be equipped with either an absolute or gage static pressure sensor type depending
on specified model code. The type of static pressure sensor equipped in the transmitter can be
determined by referring to the Static Pressure Sensor Type heading. The static pressure type not being
measured is a calculated value using the atmospheric pressure value as specified under the User-Defined
Atmospheric Pressure heading.
The Sensor Limits and Minimum Span for the absolute and gage static pressure can be viewed under the
Sensor Limit headings.
Mass and energy flow Fast Keys
1, 4, 1, 5
Direct process variable output Fast Keys
1, 4, 1, 2
