Rosemount 3051S - A.2 Dimensional Drawings; Dimensional Drawings

Specifications and Reference Data
135
Specifications and Reference Data
September 2017
Reference Manual
00809-0100-4803, Rev GA
A.2 Dimensional drawings
Process adapters (option D2) and Rosemount 305 integral manifolds must be ordered with the transmitter.

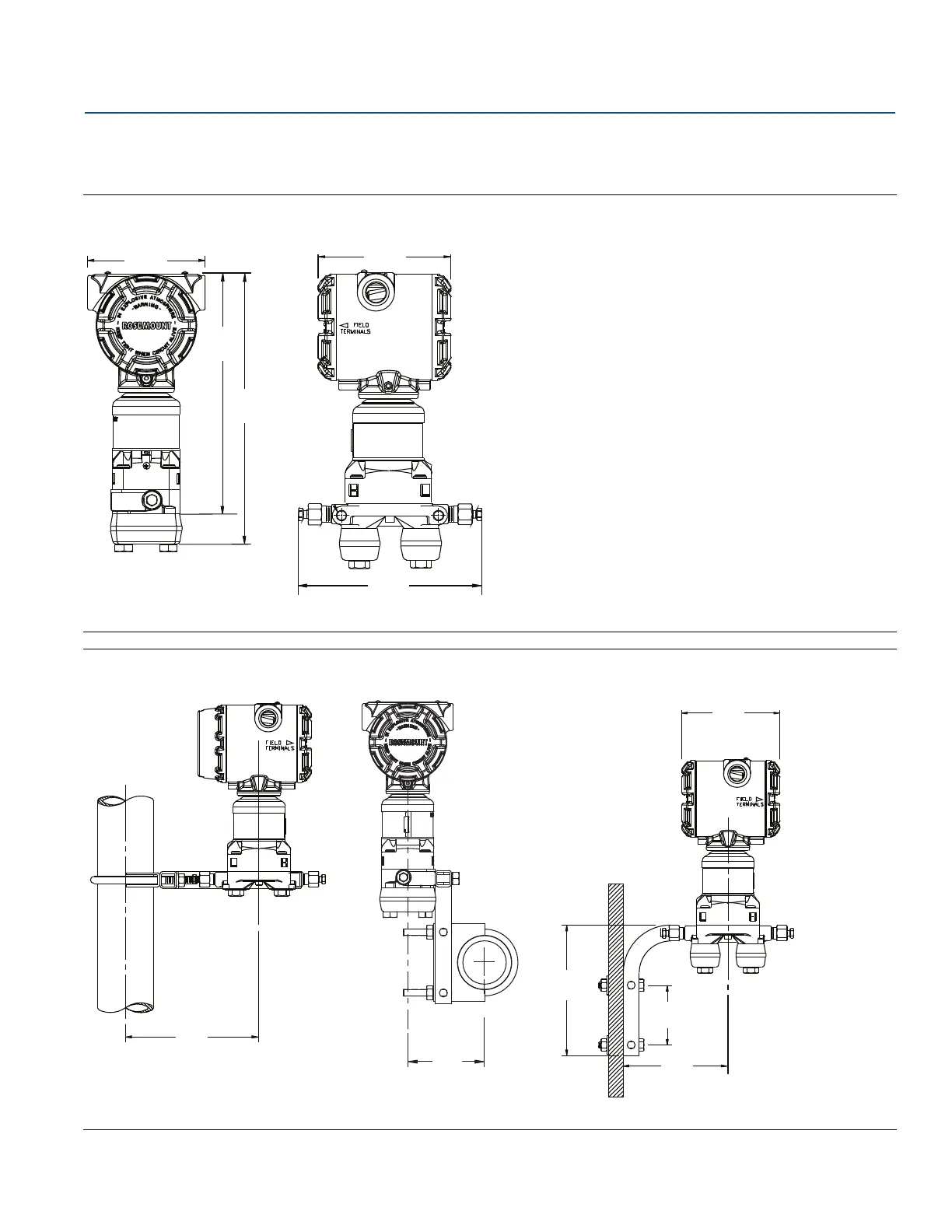

Figure A-1. Plantweb Housing with Coplanar
™
SuperModule
™
Platform and Rosemount 305 Coplanar Integral
Manifold
Dimensions are in inches (millimeters).
Figure A-2. Coplanar Flange Mounting Configurations
Dimensions are in inches (millimeters).
4.51
(115)
6.55
(
166
)
4.20
(107)
8.57
(218)
9.67
(246)
Pipe mount Panel mount
6.25
(159)
3.54
(90)
4.51
(115)
6.15
(156)
2.81
(71)
4.73
(120)
