Rosemount 8712
Model 10D1430 Sensor
(Remote) to
Rosemount 8712
Transmitter
Connect coil drive and electrode cables as shown in Figure E-15.

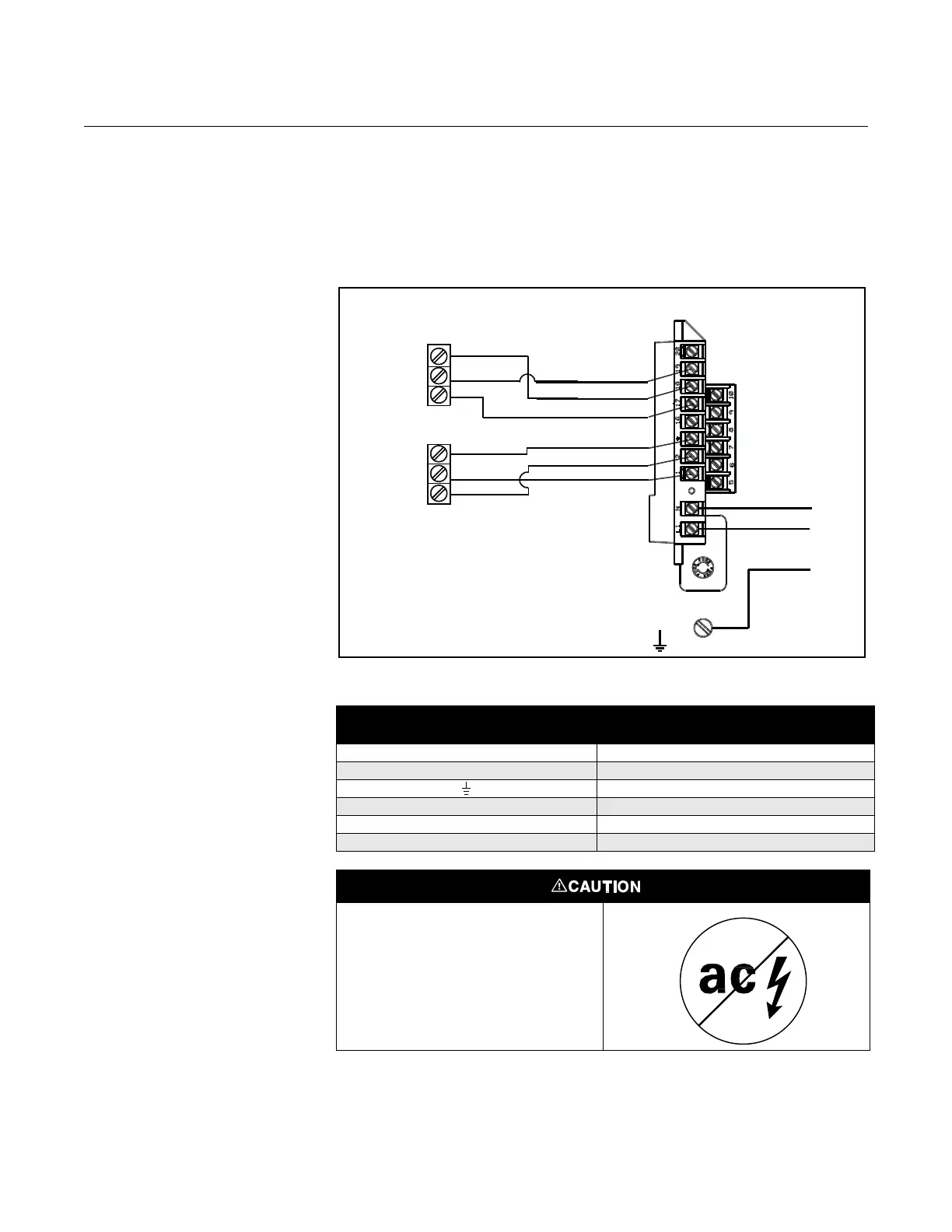

Figure E-15. Wiring Diagram for
Fischer and Porter Sensor
Model 10D1430 (Remote) and
Rosemount 8712
Table E-13. Fischer and Porter Model 10D1430 (Remote) Sensor
Wiring Connections
Rosemount 8712
Fischer and Porter
Model 10D1430 (Remote) Sensors
1L1
2 8
G
17 3
18 1
19 2
ROSEMOUNT 8712 TRANSMITTER
1
2
3
G
L1
8
Coil Connections
Electrode Connections
MODEL 10D1430
SENSOR
This is a pulsed DC magnetic flowmeter.
Do not connect AC power to the sensor
or to terminals 1 and 2 of the
transmitter, or replacement of the
electronics board will be necessary.
