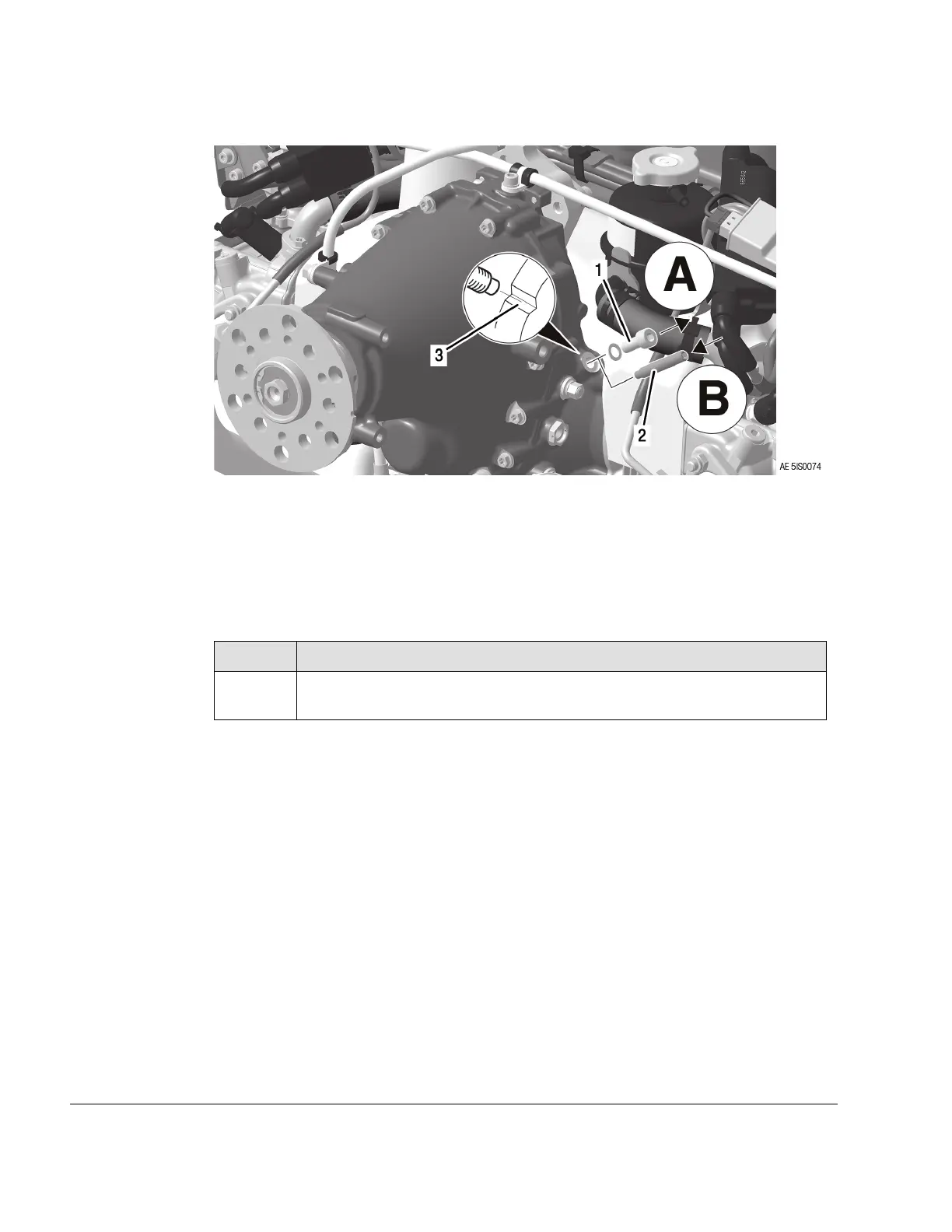

Figure 7.6: Locking/Loosen of the crankshaft. TYPICAL
1
Plug screw M8x20
2
Sealing ring
3 Crankshaft 4 Thread bolt
Loosen of the
crankshaft
After completion of work/check:
Step
Procedure
1 Remove the thread bolt (2) and refit crankshaft plug screw M8x20 (1) along
with a new sealing ring with a torque of 15 Nm (133 in.lb).
