Rotax 915 i A SERIES - Lubrication

BRP-Rotax
MAINTENANCE MANUAL
LUBRICATION
Overview

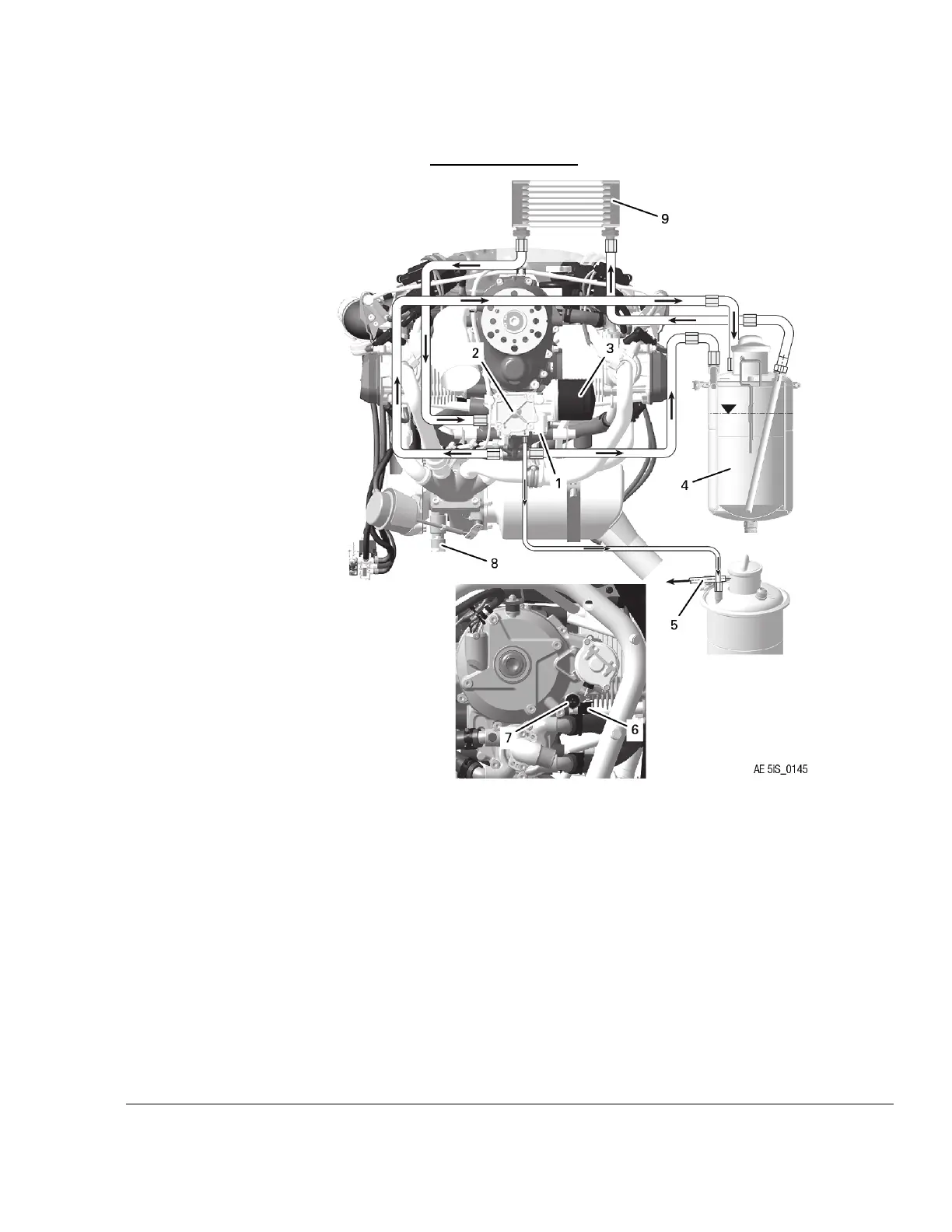

Figure 7.12
1
Plug screw
2
Oil pump
3 Oil filter 4 Oil tank
5
Venting tube
6
Oil temperature sensor
7
Oil pressure sensor
8
Turbo charger with dry sump
9 Oil radiator
