BRP-Rotax
MAINTENANCE MANUAL
ELECTRIC SYSTEM

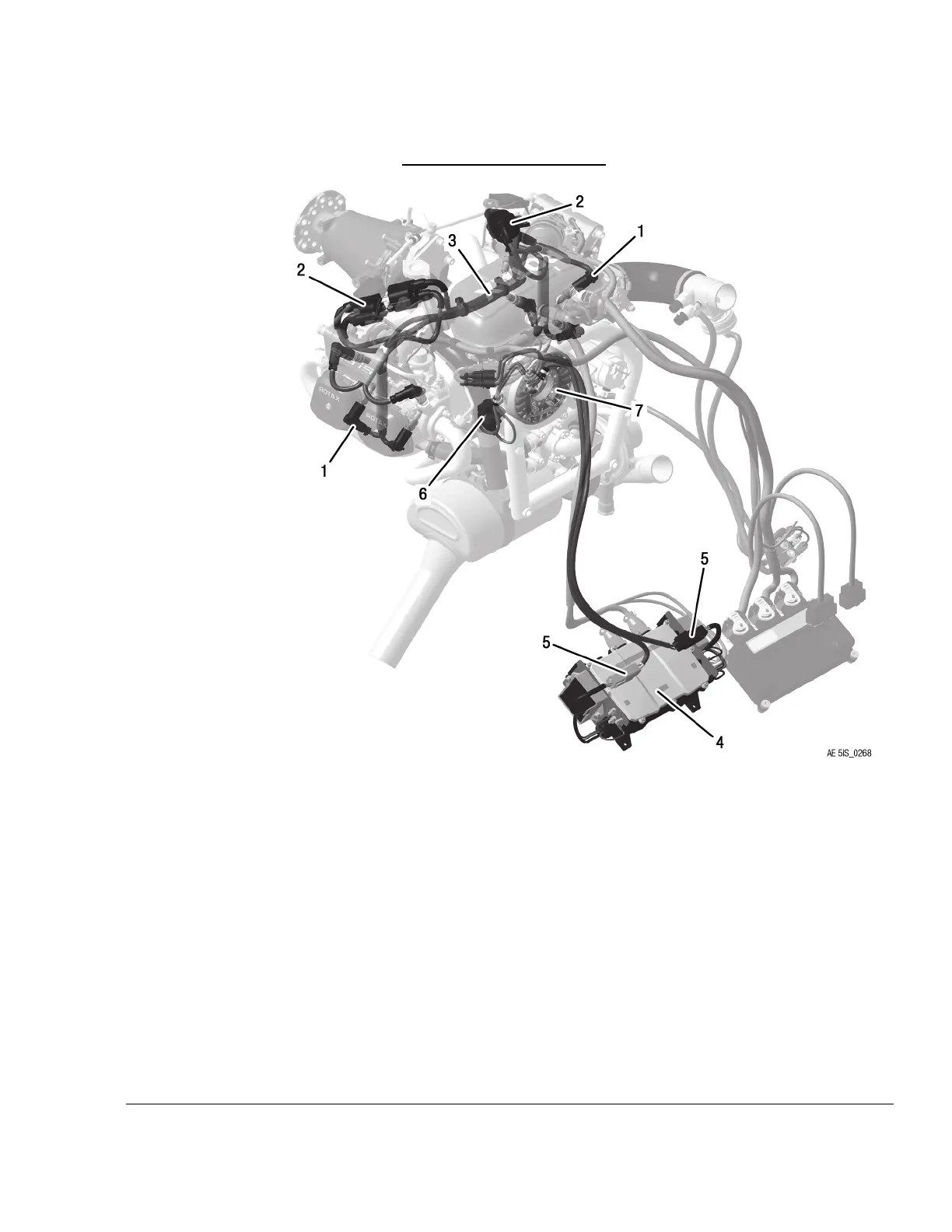

Figure 7.18: Overview
1
Spark plug connectors
2
Double ignition
3
Ignition cable
4 FUSE BOX
5
Plug connectors
6
Crankshaft position sensor
7
Stator assy.
Effectivity: 915 i A Series
Edition 0/Rev. 0
12–20–00
Page 39
December 01 2017
