BRP-Rotax
MAINTENANCE MANUAL

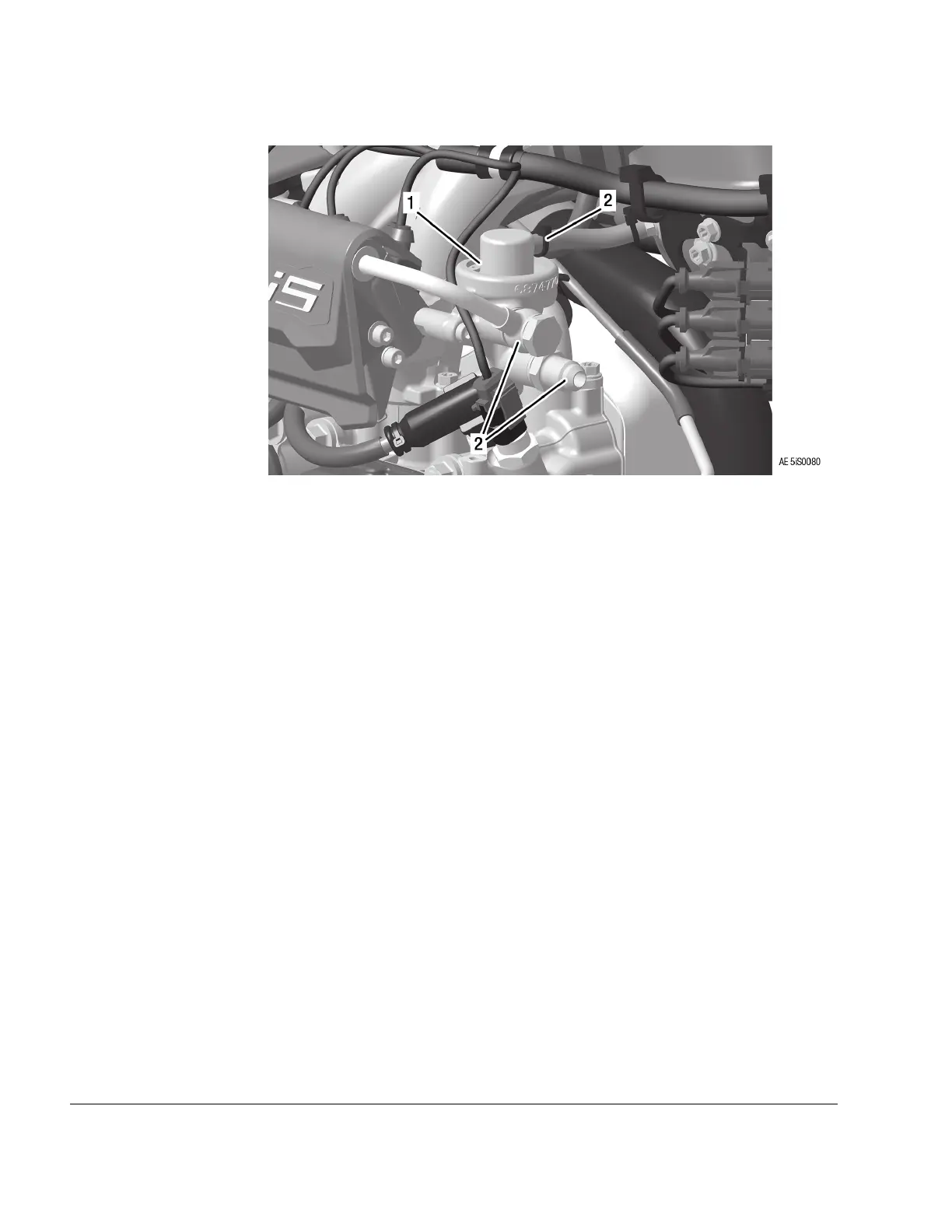

Figure 7.11: Fuel pressure regulator
1
Fuel pressure regulator
2 Connections
FUEL INJECTORS
General note Check for leaks.
FUEL RAIL
General note Check for leaks.
12–20–00
Page 24
December 01 2017
Effectivity: 915 i A Series
Edition 0/Rev. 0
