BRP-Rotax
MAINTENANCE MANUAL

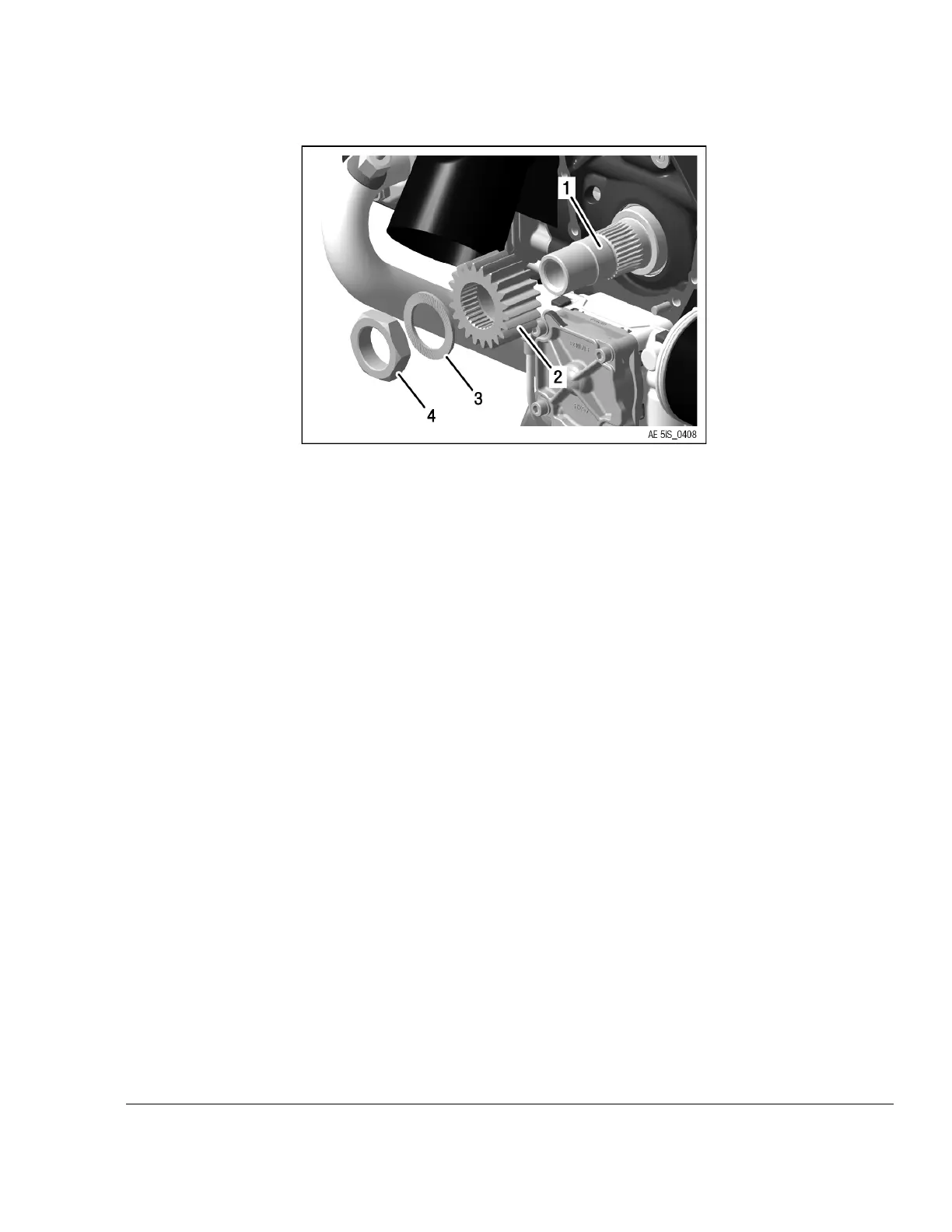

Figure 5.5: A1
1 Crankshaft 2
Drive gear
3 Friction washer 4 Hex. nut M30x1.5
Effectivity: 915 i A Series
Edition 0/Rev. 0
05–50–00
Page 7
December 01 2017
