Salus AX10RF - AS20 WRF;BRF Thermostat with AX10 RF Receiver for Zone Valve Operation (RX2)

5.8
1 2 3 4 5 6 7
PM

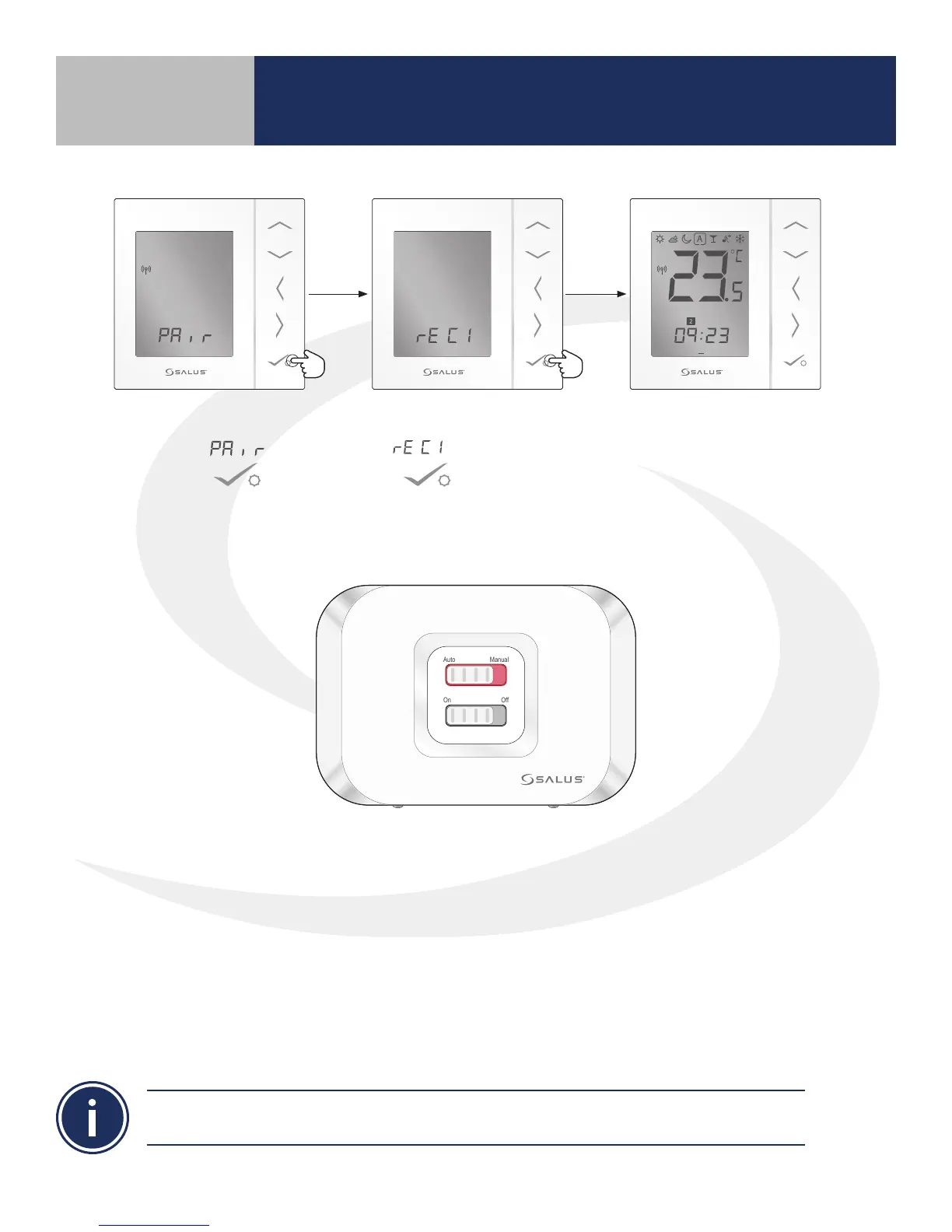

4. When Thermostat
displays , press
conrm .
5. When the display shows
, press conrm
.
The AS20WRF/BRF Thermostat will
display the current temperature
and an icon showing the
temperature mode.
6. Once the display shows the current temperature, conrm that the LED back light on the Auto/
Manual switch is a constant red. The AX10RF Receiver is now paired.
Auto Manual
On Off
AS20WRF/BRF Thermostat with AX10RF Receiver
for Zone Valve Operation (RX2)
Be sure the switch on the inside cover of the AX10RF Receiver has been congured to RX2, for zone
valve operation and the receiver has been wired as indicated in Section 3, Installation. To begin
pairing, all of the required components are to be powered: AS20WRF/BRF Thermostat and AX10RF
Receiver. The lighted LED button on the AC10RF Coordinator should be solid red. The switches on
the cover of the Receiver should be in Auto and On positions respectively.
Each wireless system will support only one receiver in RX1 mode and one in RX2 mode. These
two components can be used together to provide boiler switching and zone valve operation.
Section 5
Device Pairing & Setup without Internet
