4.14
Section 4
AS20WRF/BRF Thermostat with
AX10RF Receiver for Boiler Switching (RX1)
Be sure the switch on the inside cover of the AX10RF Receiver has been
congured to RX1, for boiler demand switching, and the Receiver has been
wired as indicated in Section 3, Installation. To begin pairing, all of the required
components are to be powered: AS20WRF/BRF Thermostat and AX10RF Receiver.

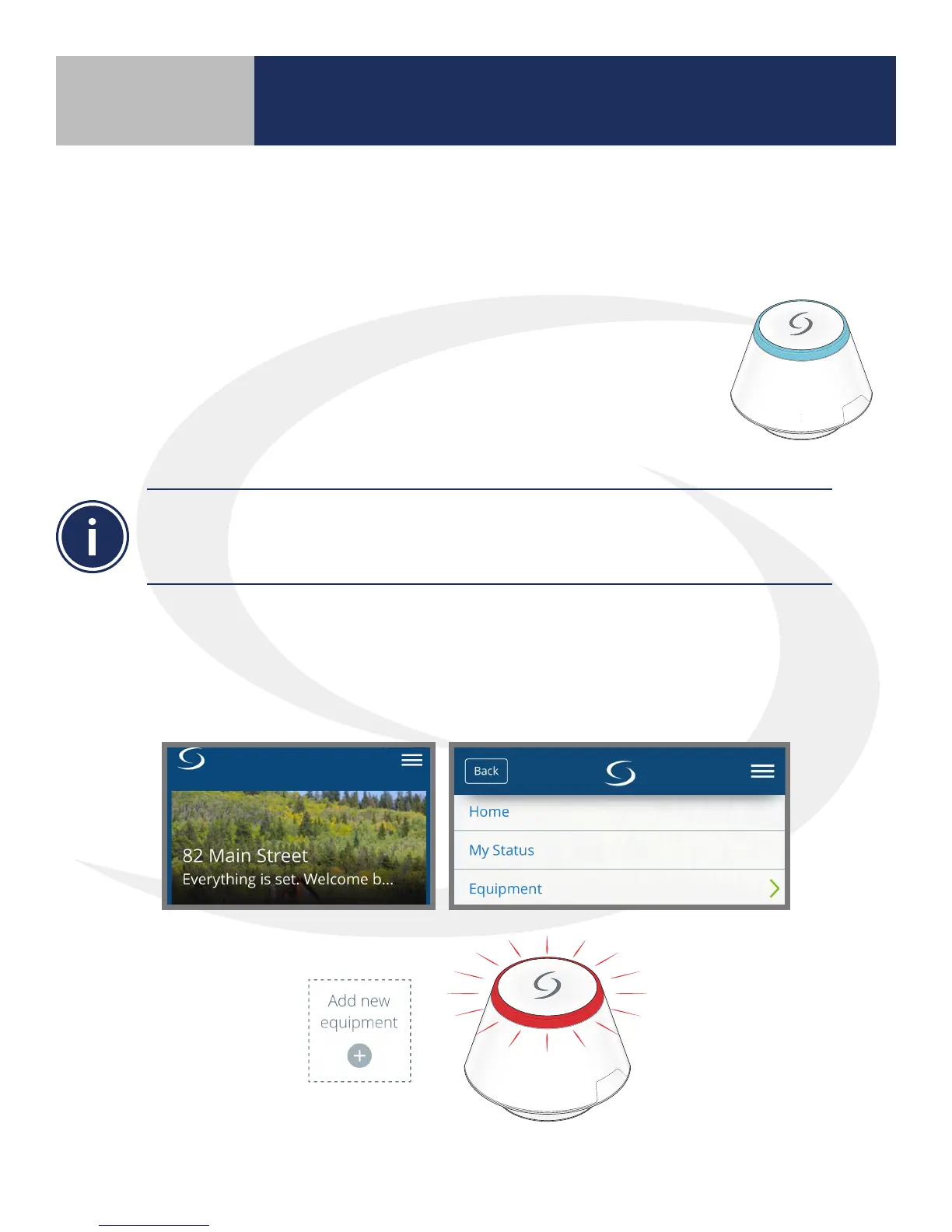

The LED ring on the SG888ZB Gateway should be solid blue, indicating it is
connected to the internet. The switches on the cover of the Receiver should be
in Auto and On positions respectively.
Pairing the AX10RF in the RX1 conguration with an AS20WRF/BRF Thermostat is only required
when used in a 1 to 1 relationship without an AKL Wiring Center.
Each system will only support one AX10RF congured as RX1 and one congured as RX2.
1. Open the SALUS Smart Home mobile application and select the drop down
menu from the upper right side of the screen select:
Equipment  All Equipment  Add New Equipment  Scan for Equipment
Device Pairing & Setup
with Internet Connection
