302 • SPS-300 P-Mode Password Control
The communications cable contractors should ensure that the Communication cable is pulled and
the Termination Block mounted as close as possible to the SPS-2000/SPS-500 devices. If it is
not their responsibility to terminate the cable, then they must ensure that there is 3 feet (1m) of
cable left for this purpose.
If the CAT 5 communications cabling system is to be terminated by a cabling specialist, then the
cabling companies must conform to the EIA/TIA 568B termination standard.

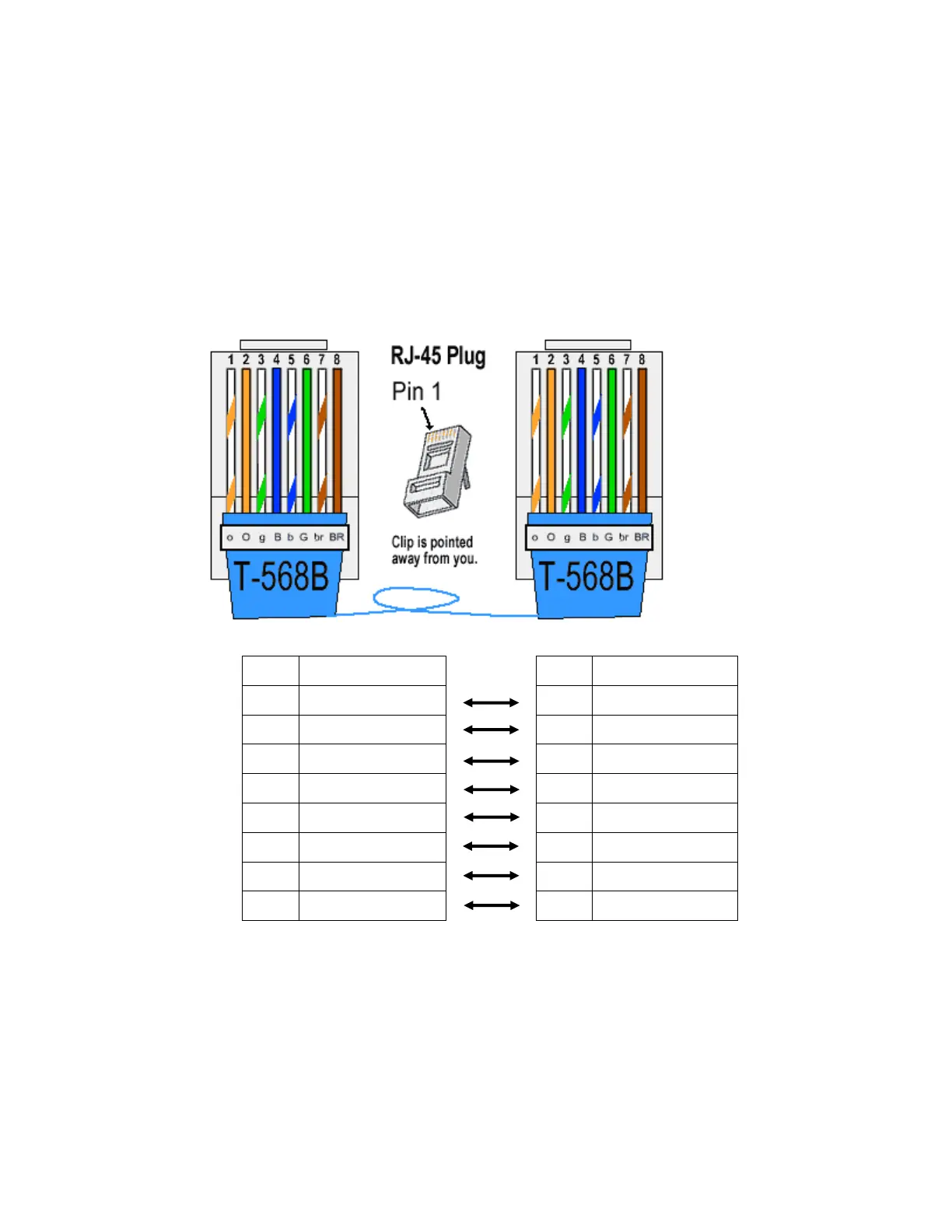

Communication Cable Termination
Straight Thru Cable - Color Coding and Terminal Connection
Pin # Color Pin # Color
1 Orange/White 1 Orange/White
2 Orange 2 Orange
3 Green/White 3 Green/White
4 Blue 4 Blue
5 Blue/White 5 Blue/White
6 Green 6 Green
7 Brown/White 7 Brown/White
8 Brown 8 Brown
