12
r
FOCUS
button
Adjusts the focus. (p.28)
e
ZOOM button
Zooms in and out the images. (p.28)
q
ON/STAND-BY
button
Turns the projector on or off. (pp.24,25)
!0
INPUT
button
Selects an input source Input 1, Input 2, Input 3 or
Input 4. (pp.32-34)
u
AUTO PC ADJ.
button
Automatically adjusts the computer image to its
optimum setting. (pp.28, 36)
y
POINT
buttons
- Select an item or adjust the value in the On-
Screen MENU. (p.26)
- Pan the image in DIGITAL ZOOM + mode. (p.44)

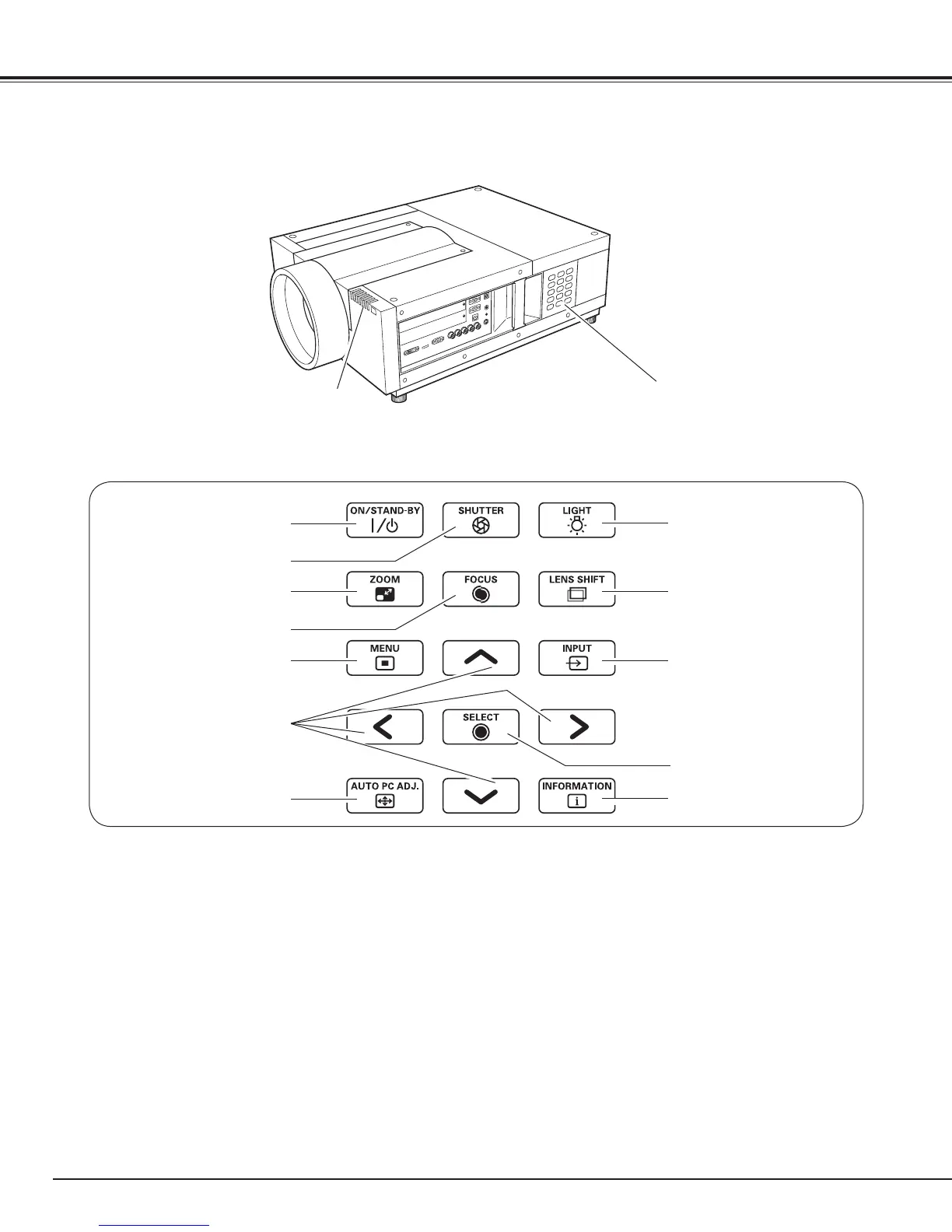

Side Control and Indicators
o
LENS SHIFT
button
Selects the LENS SHIFT function. (p.28)
!1
SELECT
button
Used to execute the selected item. (p.26) It is also
used to make the image larger in DIGITAL ZOOM +
mode and smaller in DIGITAL ZOOM - mode. (p.44)
t
MENU
button
Opens or closes the On-Screen MENU. (pp.26, 27)
Part Names and Functions
Side Control
Indicators
Side Control
q
w
e
r
t
i
u
!1
!0
o
w
SHUTTER button
Closes and opens up the built-in shutter. (p.28)
!2 INFORMATION button
Displays the input source information (p.28).
!2
i
LIGHT
button
Lights the side control and around terminals. (p.28)
