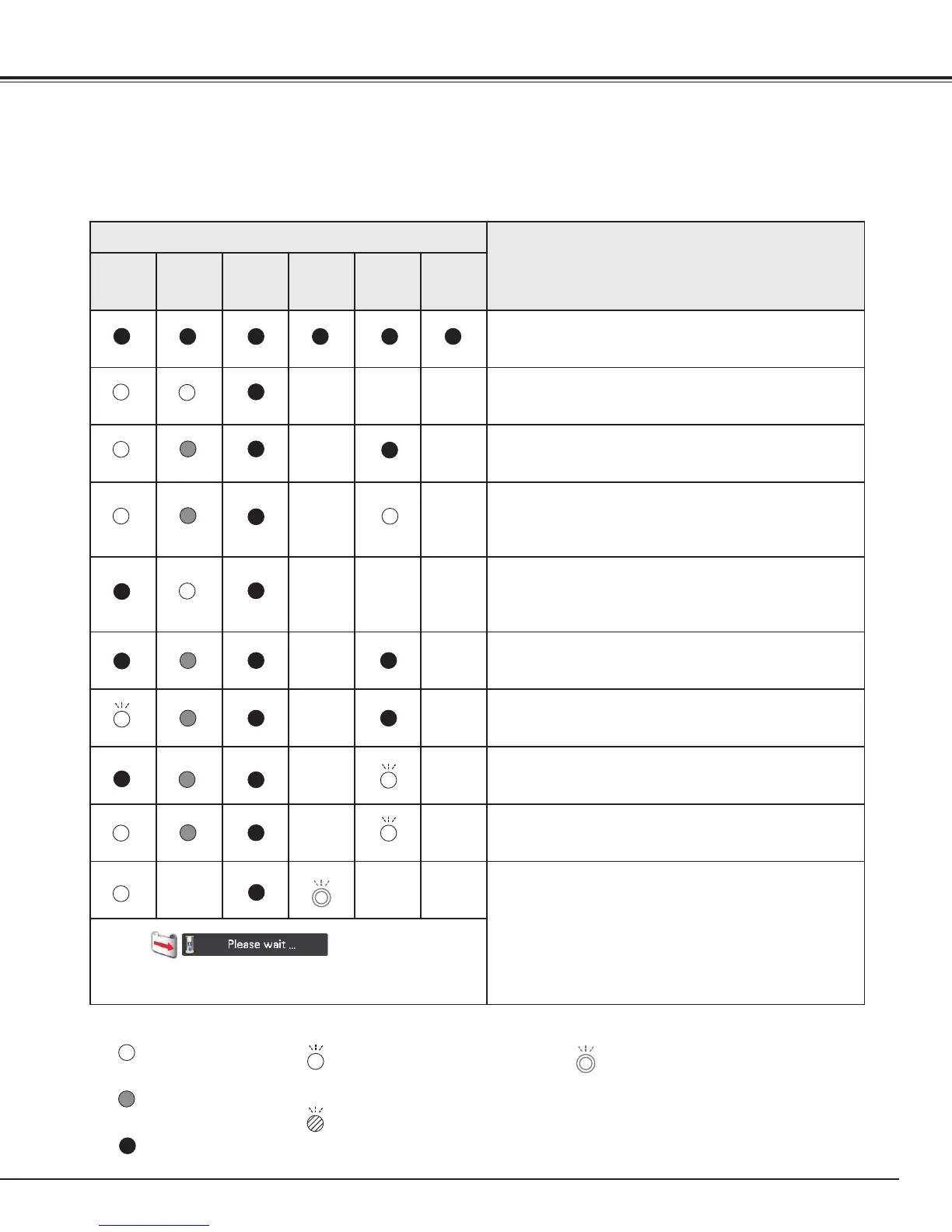

Indicators and Projector Condition
Check the indicators for the projector condition.
The projector is operating normally.
• • • on
• • • off
• • • blinking at the normal rate
(approx. 1 second ON,
1 second OFF)
• • • dim
• • • blinking slow
(approx. 2 seconds ON,
2 seconds OFF)
• • • blinking fast
(approx. 0.5 seconds ON,
0.5 seconds OFF)
Indicators
Projector Condition
POWER
green
LAMP
red
WARNING
TEMP.
red
WARNING
FILTER
orange
SHUTTER
blue
LAMP 1/2
REP.
orange
The projector is off. (The main On/Off switch is OFF
position or the AC power cord is unplugged.)
The projector is in stand-by mode. Press the ON/
STAND-BY button to turn on the projector.
The projector is operating normally.
(The Shutter is open)
The projector is operating normally.
(The Shutter is closed)
The projector is preparing for stand-by or the
projection lamp is being cooled down. The projector
cannot be turned on until cooling is completed and
the POWER indicator lights green.
The projection lamp is being cooled down in the
Power management mode.
The projector is in the Power management mode.
The projection lamp is being cooled down in the
Shutter management mode.
The projector is in the Shutter management mode.
Press the ON/STAND-BY button to turn on the
projector.
The filter is scrolled using the FILTER button on
the remote control or the Filter control function in
the setting menu. When the filter is being scrolled,
the Filter replacement icon and “Please wait...”
message (Fig. 1) appear on the screen.
✽
✽
✽
✽
Fig.1 Filter replacement icon and “Please wait...”
✽
✽
✽
✽
✽
✽
✽
✽
✽
✽
✽
✽
✽
✽
✽
✽
✽
• • • Differs according to conditions.
✽
