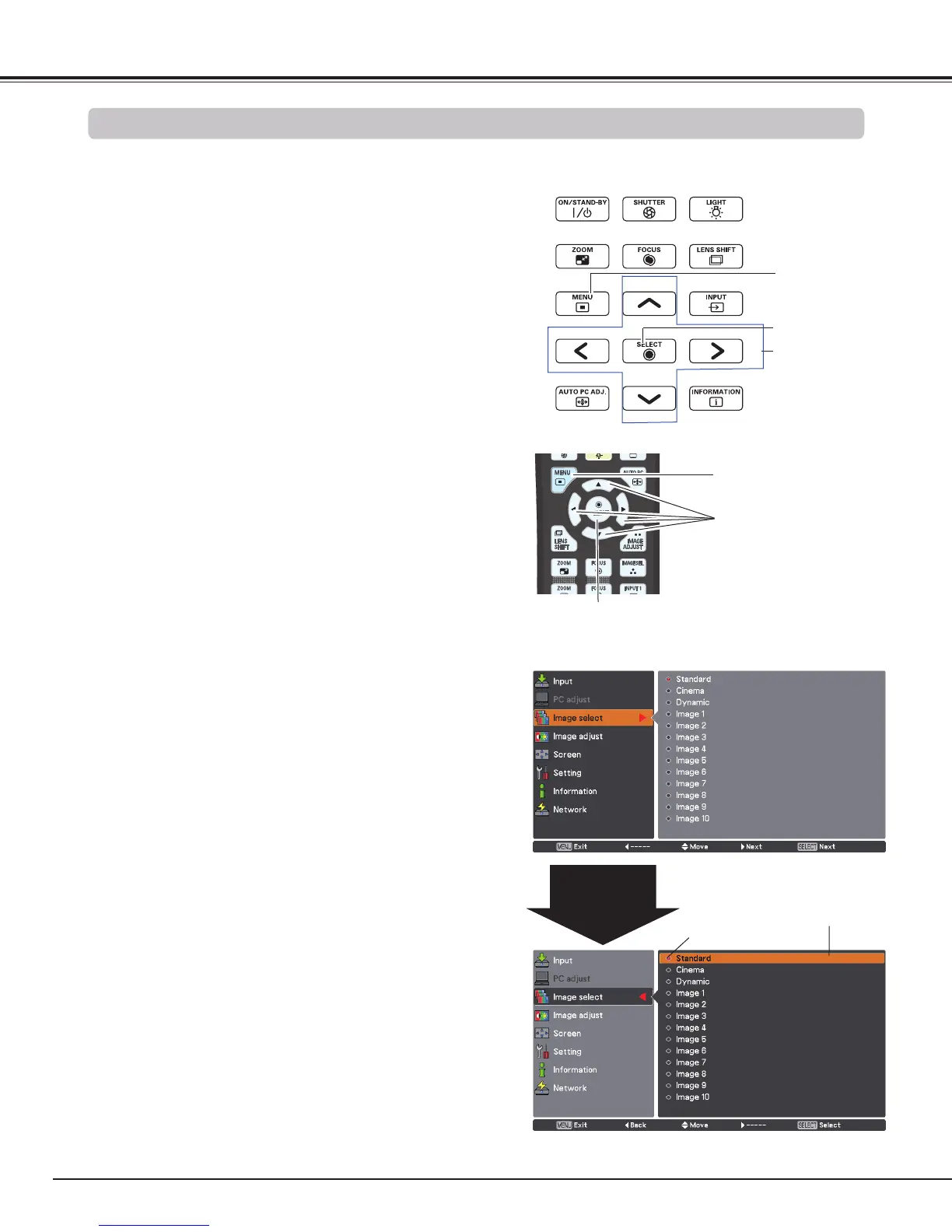

How to Operate the On-Screen Menu
Basic Operation
The projector can be adjusted or set via the on-screen
menu. The menu has a hierarchical structure, with
a main menu that is divided into submenus, which
are further divided into other submenus. For each
adjustment and setting procedure, refer to respective
sections in this manual.
Use the Point ed buttons to highlight or select a main
menu item. Press the Point 8 or the SELECT button
to access the submenu items. (The selected item is
highlighted in orange.)
Use the Point ed buttons to select the desired
submenu item and press the SELECT button to set or
access the selected item.
Press the MENU button on the side control or the
remote control to display the on-screen menu.
1
2
3
Use the Point ed7 8 buttons to adjust the setting or
switch between each option and press the SELECT
button to activate it and return to the submenu.
4
Press the Point 7 button to return to the main menu.
Press the MENU button to exit the on-screen menu.
5
Side Control
MENU button
On-screen menu
Remote Control
POINT buttons
SELECT button
MENU button
The selected item is
highlighted in orange.
The
currently
set item is
marked.
POINT buttons
SELECT button
Point 8
or
SELECT button

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
