Computer Input
Some computers employ special signal formats which may not be tuned by Multi-Scan system of this projector.
Manual PC Adjustment enables you to precisely adjust several parameters to match those special signal formats.
The projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to
recall the setting for a specific computer.
Use the Point 7 8 buttons to adjust the value, eliminating a
flicker from the image displayed (from 0 to 31).
Use the Point 7 8 buttons to adjust the number of total dots
in one horizontal period to match your PC image.
Use the Point 7 8 buttons to adjust the horizontal picture
position.
Use the Point 7 8 buttons to adjust the vertical picture
position.
Press the SELECT button to show H-sync freq. and V-sync
freq. of the connected computer.
Use the Point 7 8 buttons to adjust the clamp level. When
the image has dark bars, try this adjustment.
Use the Point 7 8 buttons to adjust the horizontal area
displayed by this projector.
Use the Point 7 8 buttons to adjusts the vertical area
displayed by this projector.
1
2

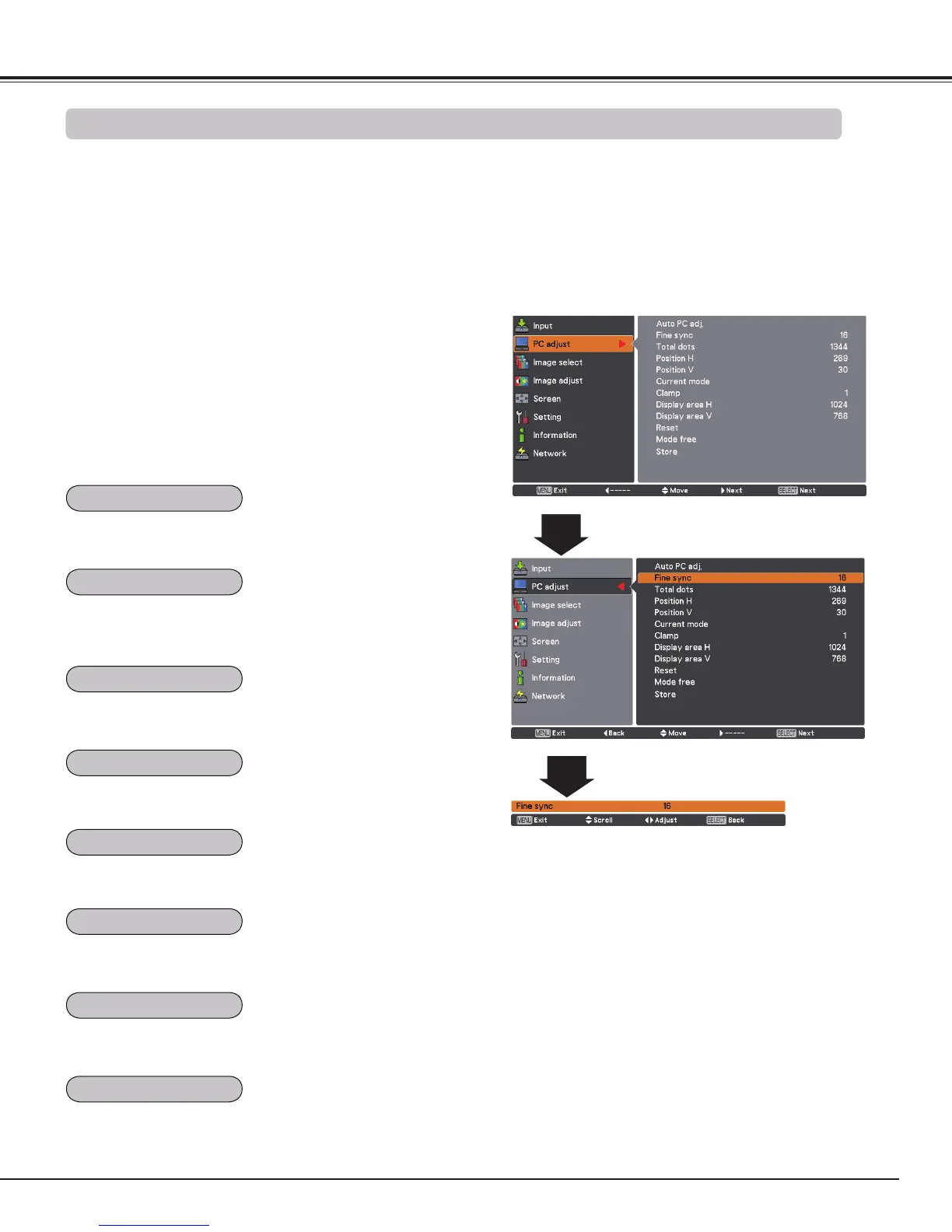

Press the MENU button to display the On-Screen Menu.
Use the Point ed buttons to select PC adjust and then
press the Point 8 or the SELECT button.
Use the Point ed buttons to select the desired item
and then press the SELECT button to display the
adjustment dialog box. Use the Point 7 8 buttons to
adjust the setting value.
Manual PC Adjustment
Fine sync
Total dots
Position H
Position V
Current mode
Clamp
Display area H
Display area V
