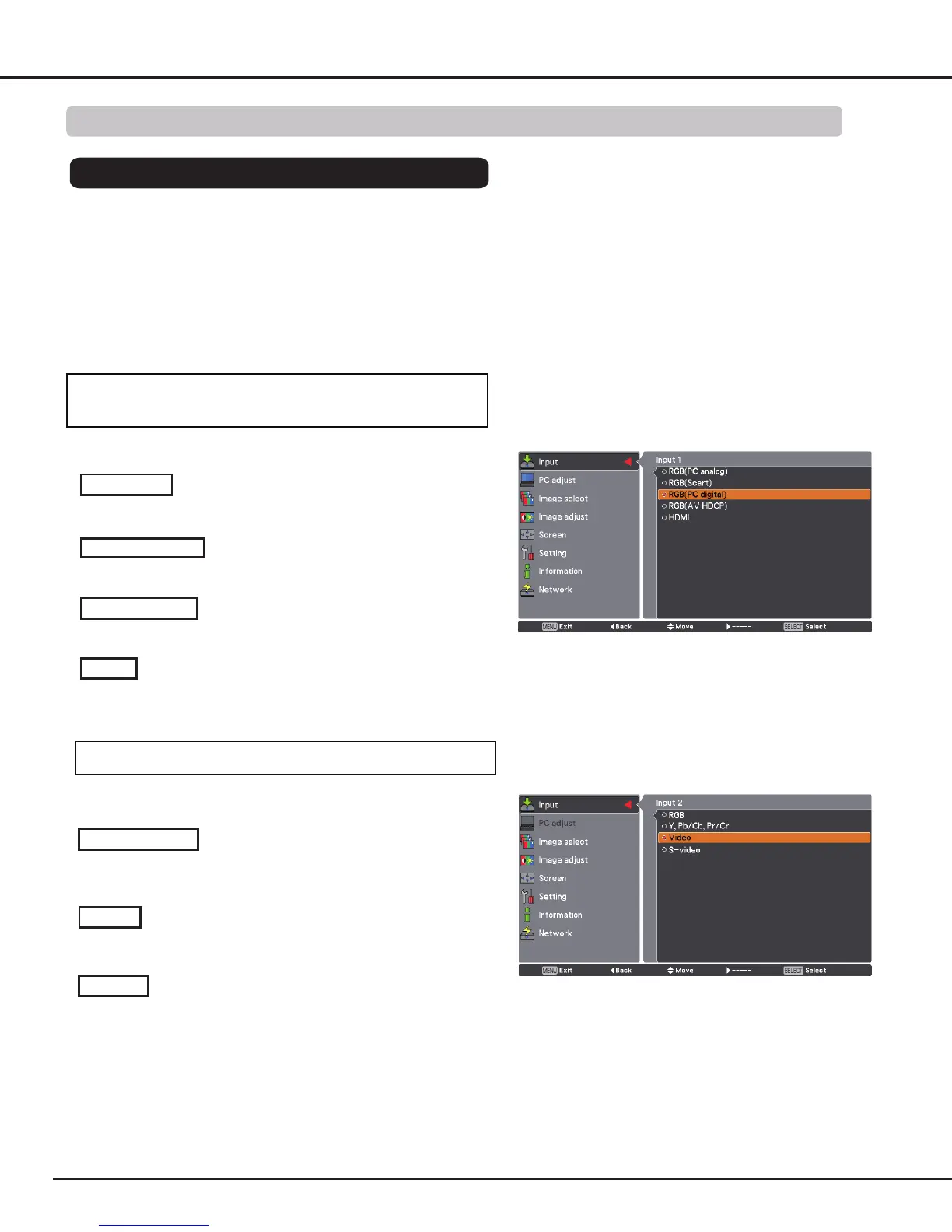

Input Selection
When the video input signal is connected
to the Y, Pb/Cb, Pr/Cr jacks, select Y, Pb/
Cb, Pr/Cr.
When the video input signal is connected
to the VIDEO jack, select Video.
When connecting to video equipment, select the type of
Video source in the Source Select Menu.
Video
Y, Pb/Cb, Pr/Cr
When connecting to video equipment, select the type of
Video source in the Source Select Menu.
INPUT 1 MENU
HDMI
RGB(Scart)
When scart video equipment is connected to the INPUT 1
(ANALOG) terminal, select RGB (Scart).
When the video signal is connected to the HDMI terminal,
select HDMI.
INPUT 2 MENU
1
2
3
Press the MENU button to display the On-Screen
Menu. Use the Point ed buttons to select Input and
then press the Point 8 or the SELECT button.
Use the Point ed buttons to select the desired input
and then press the Point 8 button to access the
submenu items.
Use the Point ed buttons to select the desired
source and then press the SELECT button.
Menu Operation
WHEN SELECTING INPUT 1 (COMPUTER INPUT
TERMINALS )
WHEN SELECTING INPUT 2 (5 BNC INPUT JACKS )
✔Note:
• When the video input signal is connected to the Y-Pb/Cb-Pr/
Cr jacks, Y,Pb/Cb,Pr/Cr takes precedence of RGB.
• Y,Pb/Cb,Pr/Cr input can accept the component signal and
the analog RGB signal. When analog RGB signal is not
recognized in Y,Pb/Cb,Pr/Cr input source, set to RGB input
manually.
RGB(AV HDCP)
If the HDCP-compatible signal source is connected to the
INPUT 1 (DIGITAL) terminal, select RGB (AV HDCP).
When the video input signal is connected to
the S-VIDEO jack, select S-Video.
S-Video
Video Input Source Selection
RGB(PC digital)
When your computer is connected to INPU T 1 (DIGITAL)
terminal, select RGB (PC digital).

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
