Sanyo PLC HF10000L User Manual

Remote Control

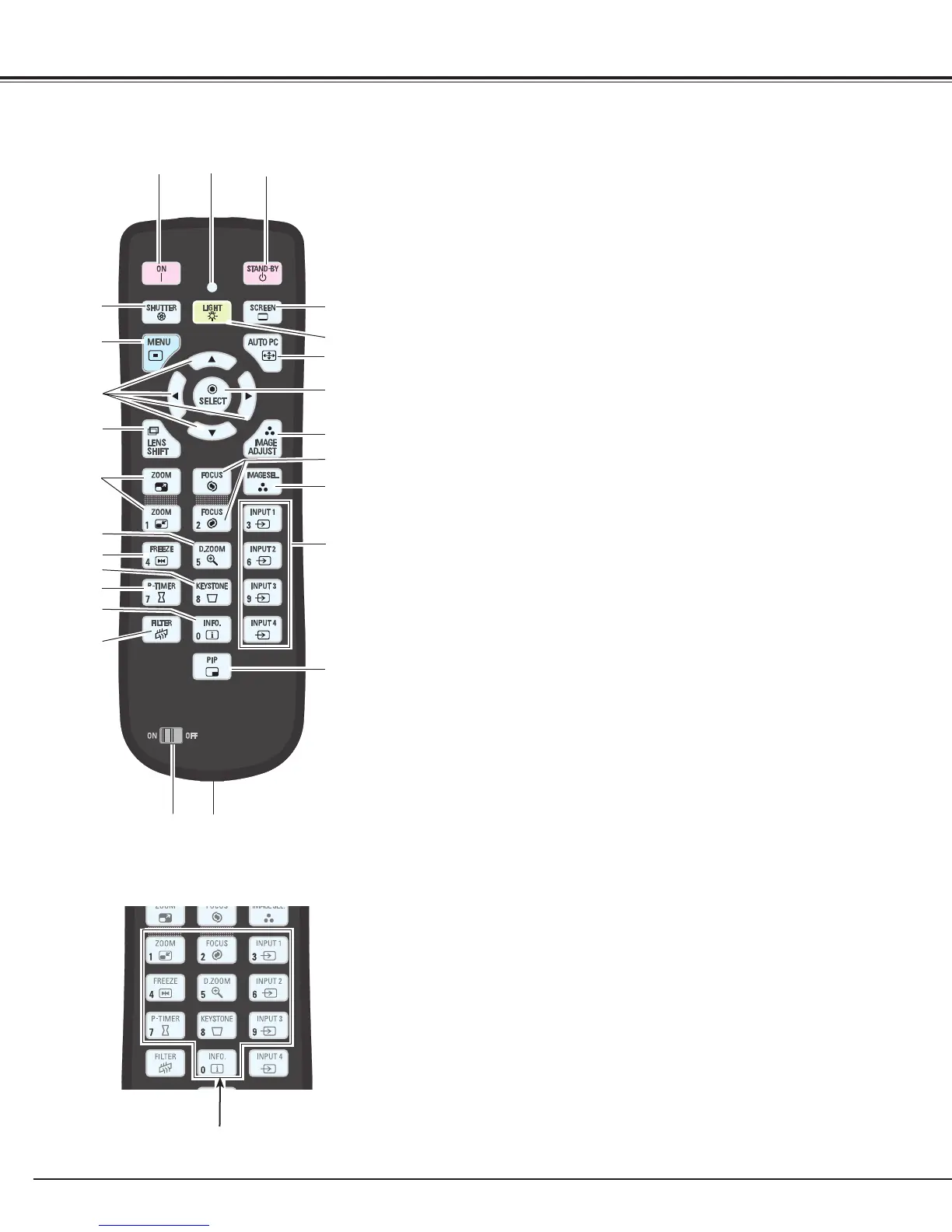

Part Names and Functions
!6
LIGHT button
Lights the buttons on the remote control for about 10 seconds.
t
MENU button
Opens or closes the On-Screen MENU. (pp.26, 27)
y POINT ed 7 8 buttons
– Select an item or adjust the value in the ON-SCREEN MENU. (p.26)
–Pan the image in DIGITAL ZOOM +/– mode. (p.44)
u
LENS SHIFT button
Selects the LENS SHIFT function. (p.29)
@0
FOCUS buttons
Adjusts the focus. (p.29)
i
ZOOM buttons
Zoom in and out the images. (p.29)
!0
FREEZE button
Freezes the picture on the screen. (p.30)
!2
P-TIMER button
Operates the P-TIMER function. (pp.30, 68)
!1
KEYSTONE button
Corrects keystone distortion. (pp.31, 45, 52)
q
STAND-BY button
Turns the projector off. (p.25)
!7
AUTO PC button
Automatically adjusts the computer image to its optimum setting.
(pp.29, 36)
r
SHUTTER button
Close
s
the built-in shutter for light blocking. (pp.28, 29)
!8
SELECT
button
–Executes the selected item. (p.26)
– Expands or compresses the image in the DIGITAL ZOOM +/-
mode. (p.44)
@1
IMAGE SEL. button
Selects the image level. (pp.30, 39, 47)
@2
INPUT 1, 2, 3, and 4
button
s
Select an input source. (pp.32-34)
!9
IMAGE ADJUST button
Enters the image level adjustment mode. (pp.29, 40-42, 48-50)
!3 INFO. button
Displays the input source information. (p.29)
!5 SCREEN button
Selects the screen size. (pp.43-45, 51-52)
o D.ZOOM
button
Select the Digital zoom +/- mode and resize the image. (pp.29, 44)
14
!4 FILTER button
Scrolls the filter. (p.30)
@3
PIP button
Operates the Picture In Picture function. (p.30)
e
ON button
Turns the projector on. (p.24)
w
SIGNAL EMISSION indicator
Lights red while a signal is being sent from the remote control unit
to the projector.
@4 ON/OFF switch
When using the remote control, set this switch to “ON”.
@5 Wired Remote Jack
Connects the remote control cable (not supplied) to this jack
when using as a wired remote control.
q
t
e
!4
r
!7
!9
@0
@1
!5
!6
@2
u
y
i
!8
@4
@3
@5
w
!1
!3
!2
o
!0
@6
@6 Number buttons
Use these buttons when setting the remote control codes (p.16)
or when entering the PIN code numbers (pp. 24, 60, 64).

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
