18
Installation
Picture Level and Pitch Adjustment
ADJUSTABLE
FEET
REAR ADJUSTABLE
FEET (Refer to p.10)

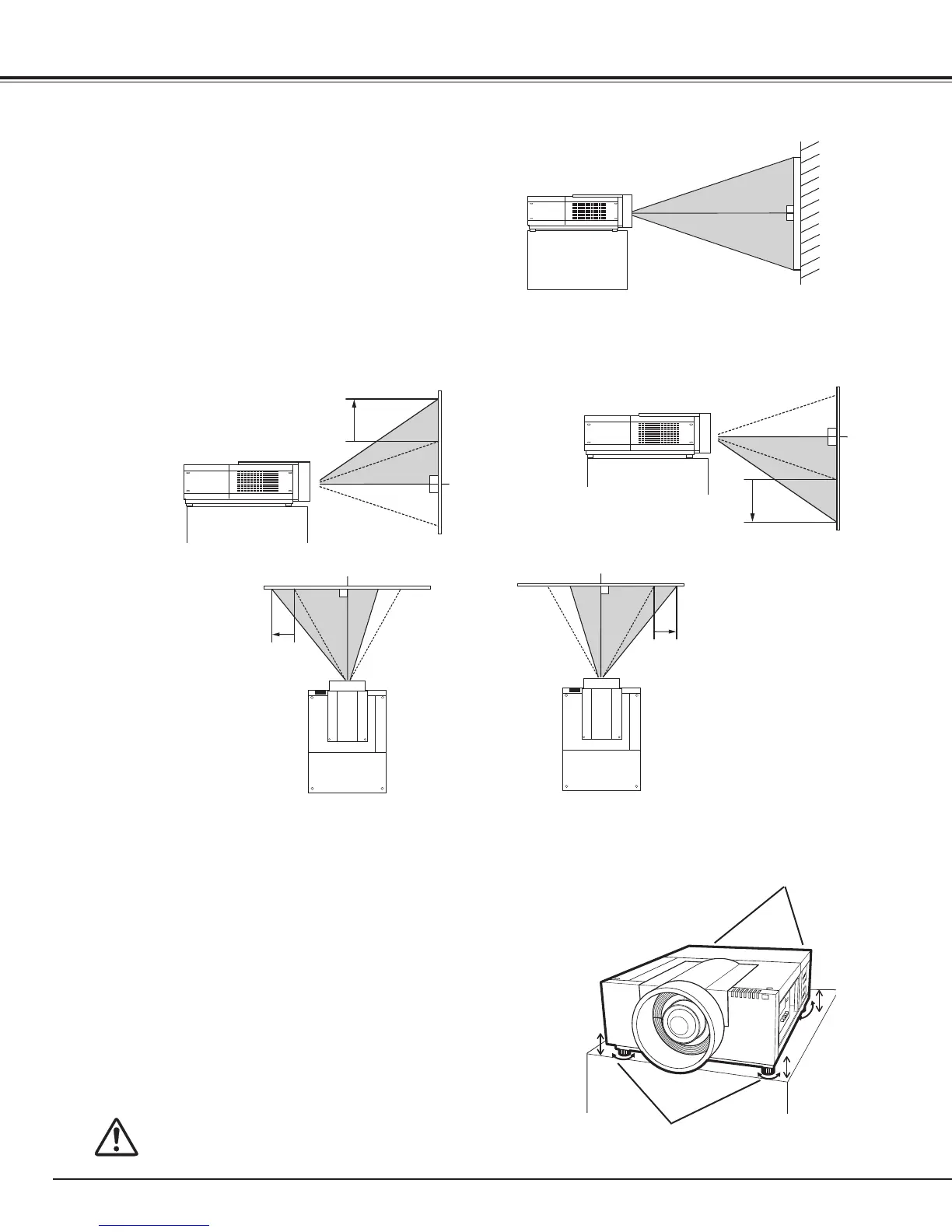

Projection lens can be moved from side to side and up and down with the motor-driven lens shift function. This
function makes the positioning of images easy on the screen. The amount of lens shift range varies depending
on the lens. The shift ranges shown below apply to the LNS-S03 lens. (See page 28)
Lens Shift Adjustment
When the lens is shifted to top.
The display position can be
shifted upward up to 50%
elevation of the display.
When the lens is shifted to bottom.
The display position can be
shifted downward up to 50%
low level of the display.
When the lens is shifted to leftmost.
The display position can be
shifted to the left in up to
10% width of the display.
When the lens is shifted to rightmost.
The display position can be
shifted to the right in up to
10% width of the display.
The projection angle is adjustable up to 2.8 degrees
upward and downward respectively by rotating front and
back feet .
To raise the projector, rotate the feet clockwise.
To lower the projector or to retract the adjustable feet,
rotate the feet counterclockwise.
To correct keystone distortion, press the KEYSTONE
button on the remote control or select Keystone from the
menu (see pages 31, 45, 52).
Do not rotate the adjustable feet when you
see the red line on the adjustable feet. The
adjustable feet may fall off.
Positioning Projector
This projector is designed to project on a flat projection
surface.
✔Note:
•
Brightness in room has a great influence on picture
quality. It is recommended to limit ambient lighting in
order to provide the best image.
SCREEN
