Image Adjust Menu

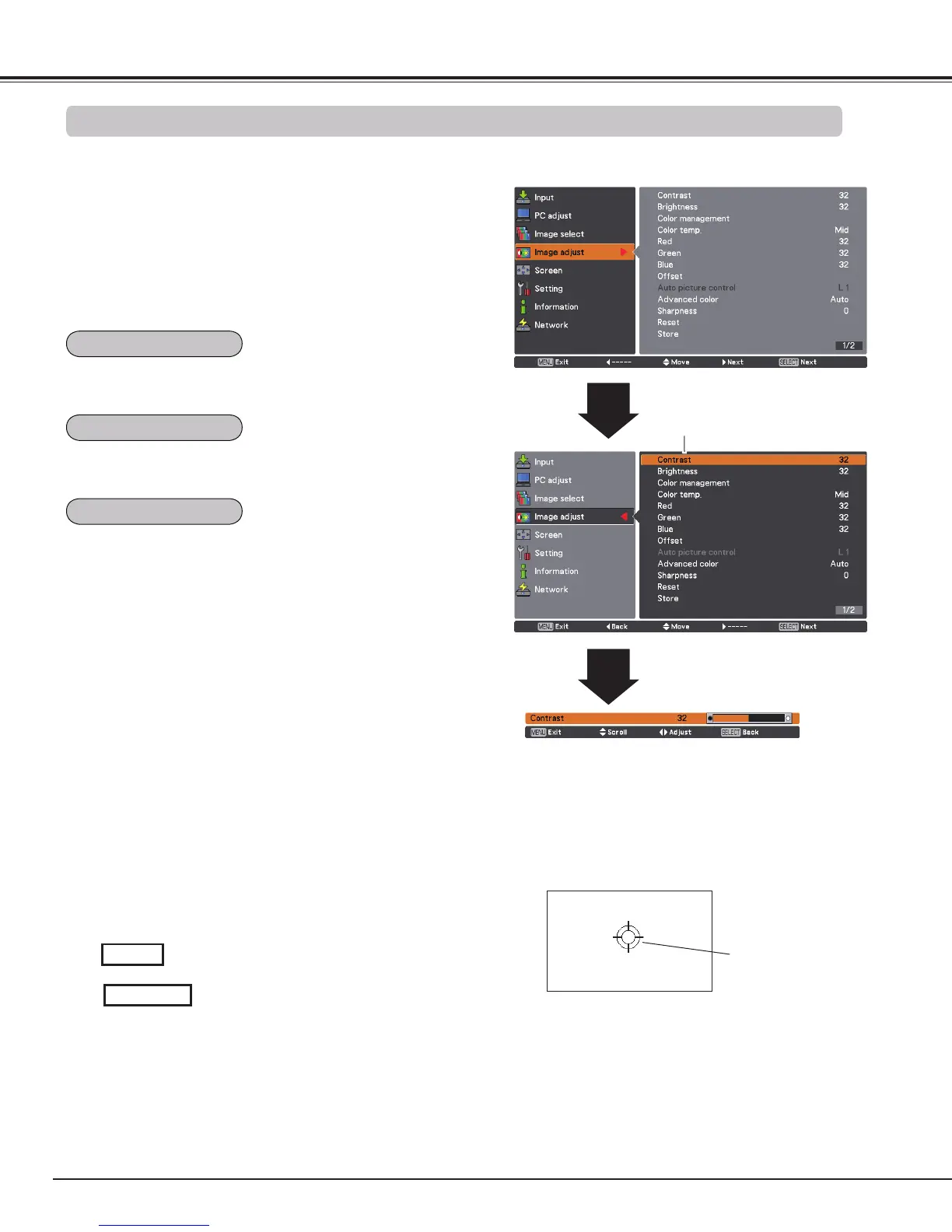

Press the MENU button to display the On-Screen
Menu. Use the Point ed buttons to select Image
adjust and then press the Point 8 or the SELECT
button.
1
2
Use the Point ed buttons to select the desired item
and then press the SELECT button to display the
adjustment dialog box. Use the Point 7 8 buttons to
adjust the setting value.
Press the Point 7 button to decrease the contrast; press the
Point 8 button to increase the contrast (from 0 to 63).
Press the Point 7 button to decrease the brightness; press
the Point 8 button to increase the brightness (from 0 to 63).
Use the Point 7 8 buttons
to adjust the setting value.
Selected Image mode
Image Adjustment
Computer Input
The Color Management function can be used to adjust the LEVEL,
PHASE, and GAMMA of the selected display colors (except for
black, white, and gray) on the screen and replace these colors with
other colors if required.
You can store up to eight (8) color management data.
1
Select and highlight Color Management by using the Point
ed buttons and press the SELECT button. The projected
image freezes, and the COLOR MANAGEMENT POINTER
appears.
Use the Point ed7 8 buttons to move the pointer to the
spot where you want to adjust the color and then press the
SELECT button. The COLOR SELECTION window appears,
and the color in the center of the pointer is selected and you
can adjust the color.
2
Use the Point ed7 8 buttons to adjust the LEVEL and
PHASE of the color, and then press the SELECT button to
confirm the setting. Then use the Point ed buttons to adjust
the GAMMA for the color and press the SELECT button to
accept the setting. After adjusting, press the SELECT button
to go to the COLOR MANAGEMENT LIST.
3
COLOR SELECTION MODE
Go to the COLOR MANAGEMENT LIST.
LIST
Return to the COLOR MANAGEMENT POINTER. (If you press
the MENU button on the side control or the remote control ,
it returns to the COLOR MANAGEMENT POINTER and you
will need to reselect and readjust the color.)
COLOR M.
COLOR MANAGEMENT
POINTER
POINTER MODE
✔Note
When White balance Red, Green or Blue is adjusted,
Color temp. will change to Adj.
Contrast
Brightness
Color management
Select and highlight Color Management by using the Point
buttons and press the SELECT button.

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
