WHEN SELECTING INPUT 2 (5 BNC INPUT JACKS )

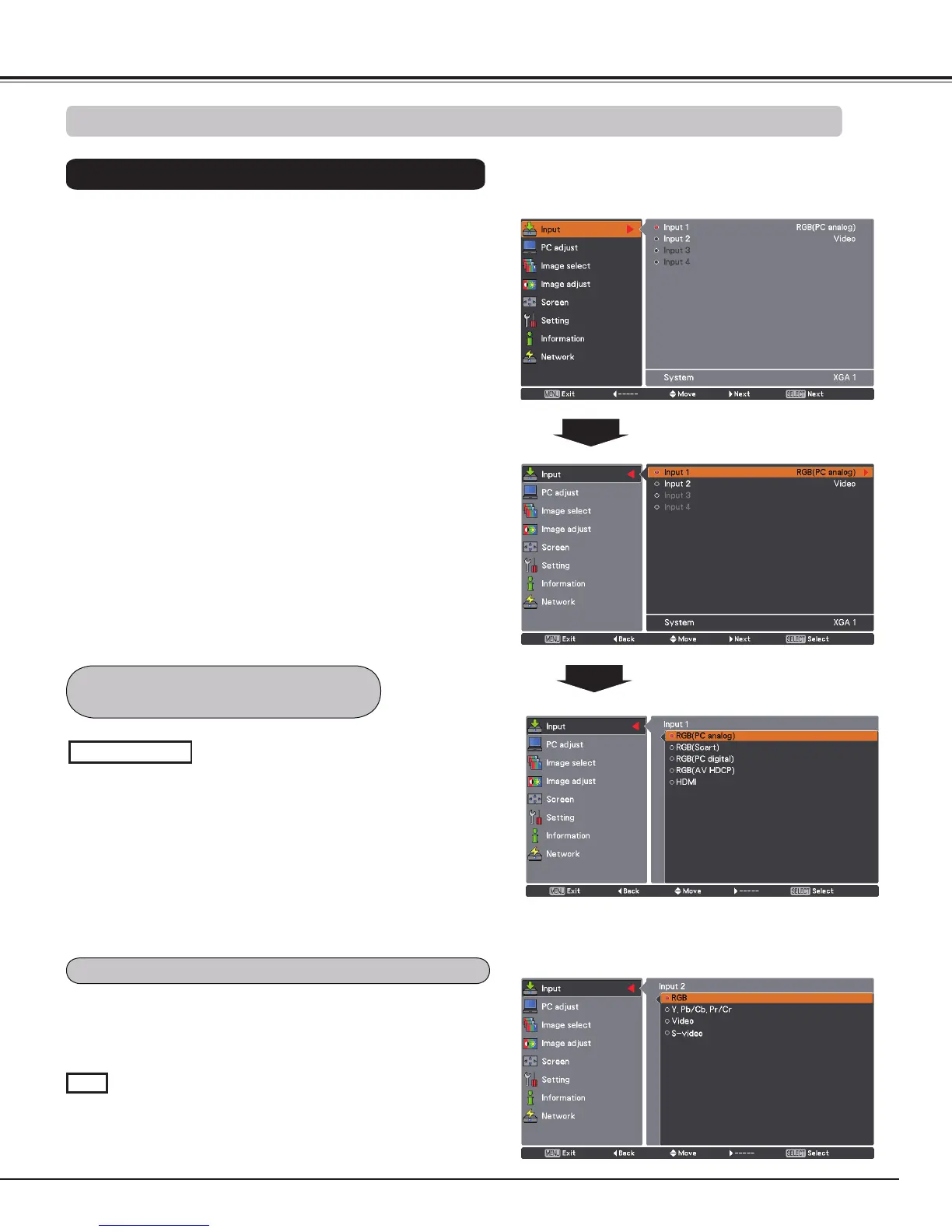

INPUT MENU
When your computer is connected to the INPUT 1
(ANALOG) terminal, select RGB (PC analog).
RGB(PC analog)
✔Note:
• Input source changes if the INPUT 1 button on the remote
control is pressed.
When connecting the computer output [5 BNC Type (Green,
Blue, Red, Horiz. Sync, and Vert. Sync.)] from the computer
to G, B, R, H/HV, and V jacks:
When your computer is connected to the INPUT 2 (5
BNC INPUT JACKS) terminal, select RGB.
RGB
1
2
3
Press the MENU button to display the On-Screen
Menu. Use the Point ed buttons to select Input and
then press the Point 8 or the SELECT button.
Use the Point ed buttons to select the desired input
and then press the Point 8 button to access the
submenu items.
Use the Point ed buttons to select the desired
source and then press the SELECT button.
INPUT 2 MENU
Computer Input Source Selection
Menu Operation
Input Selection
WHEN SELECTING INPUT 1
(COMPUTER INPUT TERMINALS )
✔Note:
• “Input 3” and/or “Input 4” are selectable only when interface
board(s) are connected to either or both of the slots.
