Installation

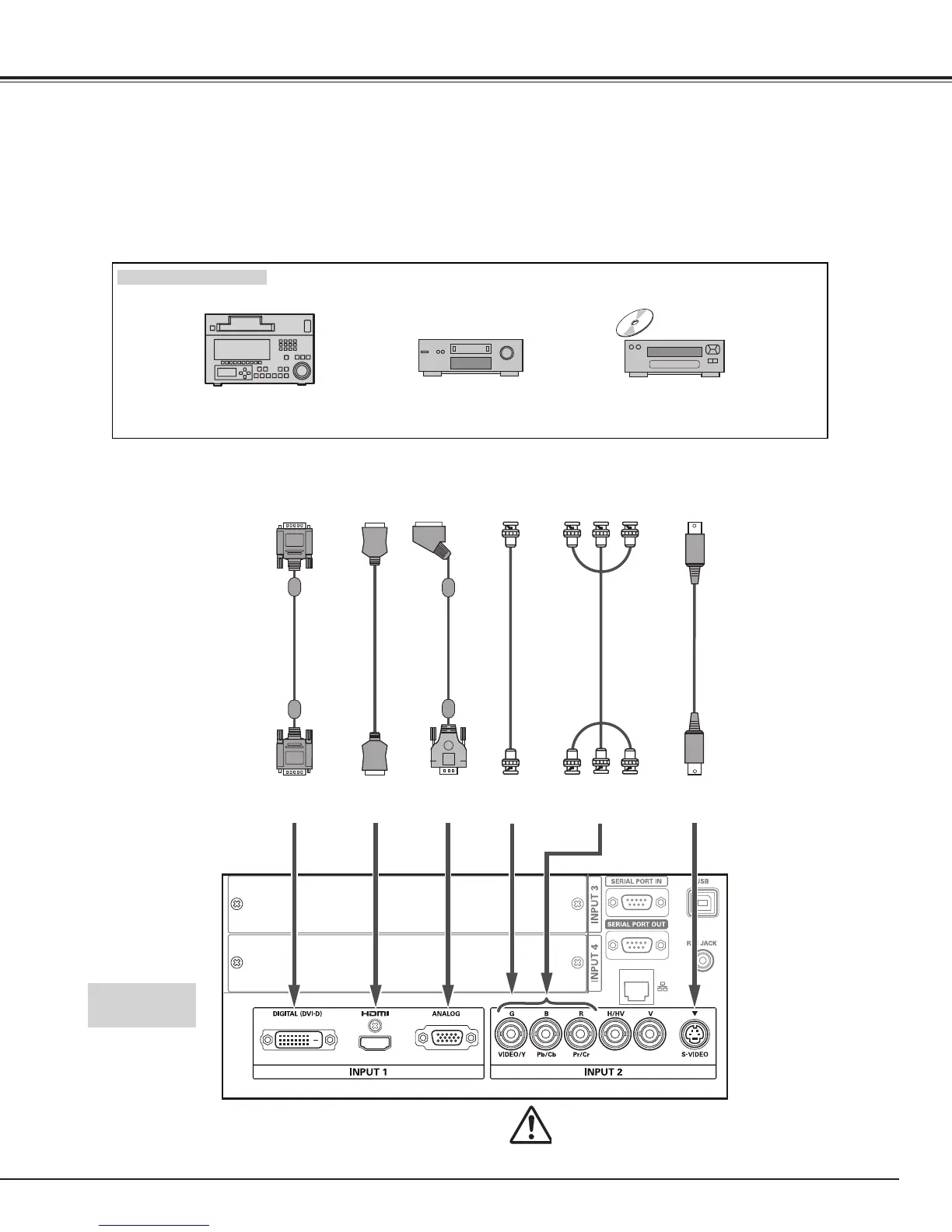

Connecting to Video Equipment
Video Source (example)
Professional Digital VCR
Video Disc Player
RGB SCART
21-pin Output
VIDEO/Y, Pb/Cb, Pr/Cr
Component video output equipment.
(such as DVD player or
high-definition TV source.)
Composite
Video Output
BNC
Cable
DVI-D Cable
SCART-VGA
Cable
Unplug the power cords of both the
projector and external equipment from the
AC outlet before connecting cables.
S-Video Output
S-VIDEO
Cables used for connection
• Video Cable (BNC x 3, BNC x 1) • HDMI Cable
• SCART-VGA Cable
• DVI-D Cable
• S-Video Cable
( Cables are not supplied with the projector.)
ANALOG
Terminals of
the projector
BNC
Cable
S-video
cable
HDMI
DIGITAL
(DVI-D)
VIDEO
HDMI Cable
HDMI
Output
Digital Output
(HDCP compatible)
Component Video
Output
