Sanyo PLC HF10000L User Manual

17
Installation
Lens Installation
Before setting up the projector, install Projection Lens on the projector.
Before installation, check where the projector is used and prepare a suitable lens. For the specifications of
Projection Lens, contact sales dealer where you purchased the projector.
- Do not use the optional lens below for this projector. Otherwise damages may result.
LENS MODEL NO. : LNS-T01, LNS-T01Z
- Lens installation and replacement should be performed by the qualified service personnel.
- When setting the projector after lens installation, be sure to replace a Lens Cap to protect a
surface.
- When carrying or holding up the projector, be careful not to put your hands on lens part. It may
damage lens, cabinet, or mechanical parts.

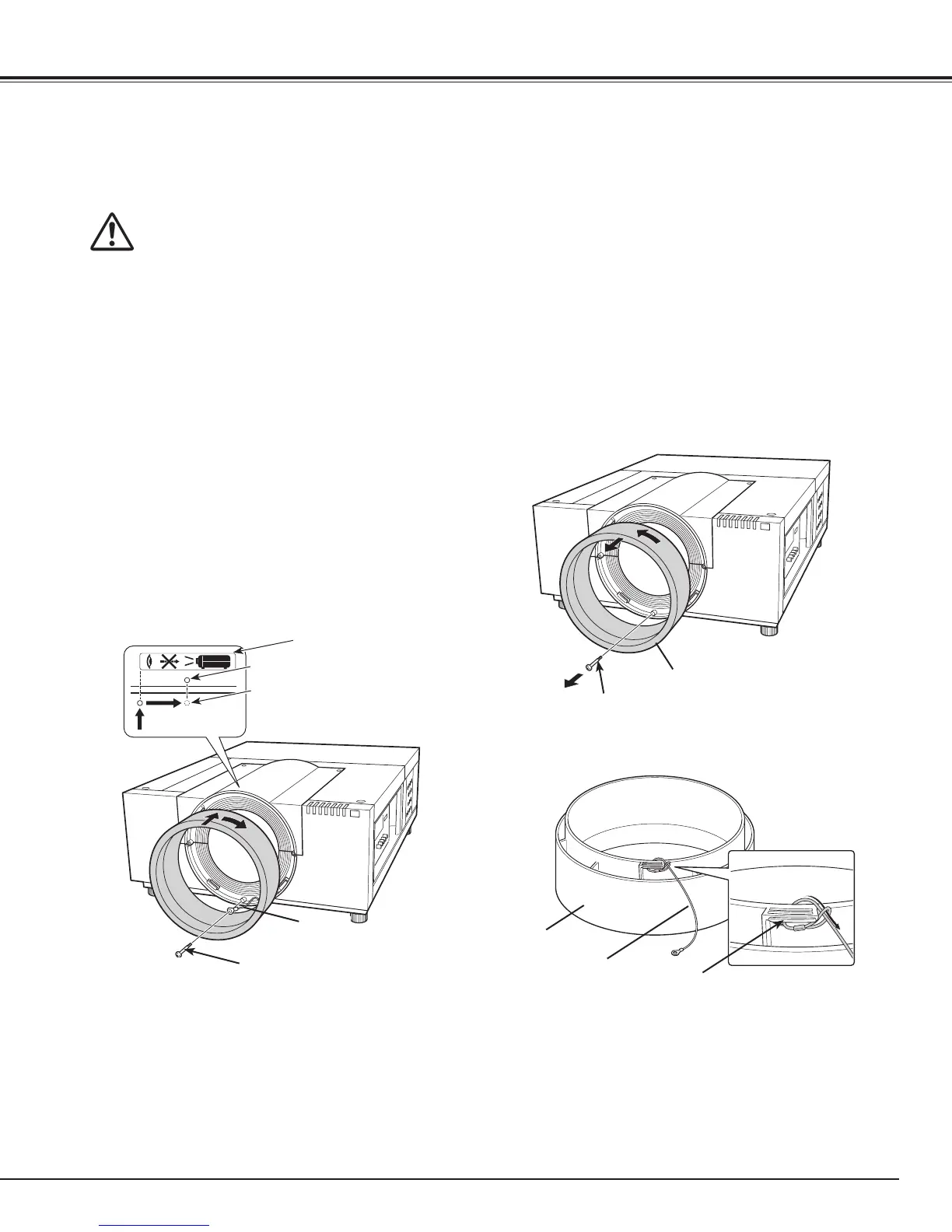

Attaching the Strap
Connect the lens mount cover and the projector with the
strap (supplied) to prevent the lens mount cover from
falling down.
Fig. 1
Fig. 3
Label
Matchmark (dot) on the cabinet
Matchmark (dot) on the lens mount
cover
Strap
Remove the screw. (See Fig. 1)
Turn the lens mount cover counter-clockwise.
(See Fig. 1)
1
2
Thread one end of the strap through the loop hole
on the lens mount cover. (See Fig. 2)
3
5
Fig. 2
Strap
Lens Mount Cover
Screw
Fix the other end of the strap to the projector
with the removed screw. (See Fig. 3)
4
✔Note:
• The screw which is packed with the strap is not for use
with this projector.
Lens Mount Cover
Loop Hole
Fit the lens mount cover, align the matchmark on the lens mount
cover with the left edge of the label on the cabinet, and then turn
the lens mount cover clockwise until it clicks. (See Fig.3)
Screw

Sanyo PLC HF10000L Specifications

General

Matrix size	1.65 \
Matrix type	3-panel (p-Si TFT active)
Projection distance	- m
Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	- \
Projector native resolution	-
Keystone correction, horizontal	30 °
Interface	USB
Power LED	Yes
RS-232 ports	2
Dimensions (WxDxH)	530 x 757 x 268 mm
Focus	Auto
Focal length range	- mm
Noise level	43 dB
Noise level (economic mode)	39 dB
Dot clock scanning frequency	230 MHz
Lamp power	380 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Wi-Fi	No
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Product color	Gray
Power consumption (standby)	18 W
Power consumption (typical)	955 W
Cables included	AC, RS-232

Weight and Dimensions

Weight	27600 g
