⑦ R/C JACK
When using the wired remote control, connect the wired remote
control to this jack with a remote control cable (not supplied)
(p.15).
⑮ USB CONNECTOR (Series B)
Use this connector when controlling a computer
with the remote control of the projector. Connect
the USB terminal of your computer to this
connector with the supplied USB cable (p.19).
⑭ AUDIO 2 JACK
Connect the audio output (stereo) signal from a
computer or video equipment (p.21).
⑪ VIDEO INPUT JACK
Connect the component or the composite video
output signal from video equipment to these
jacks (p.20).
③CONTROL PORT CONNECTOR
When controlling the projector with RS-232C, connect the
control equipment to this connector with the serial control cable.
(p.19)
⑧ COMPUTER INPUT TERMINAL (DIGITAL)
Connect the computer output digital signal to this terminal. The
HDTV (HDCP compatible) signal can also be connected (pp.19-
20).
⑤COMPUTER INPUT TERMINAL (ANALOG)
Connect the computer (or RGB scart) output signal to this
terminal (pp.19-20).
⑨ 5 BNC INPUT JACKS
Connect the component or composite video output signal from
video equipment to VIDEO/Y, Pb/Cb, and Pr/Cr jacks or connect
the computer output signal (5 BNC Type [Green, Blue, Red,
Horiz. Sync, and Vert. Sync.]) to G, B, R, H/V, and V jacks
(pp.19-21).
③
Part Names and Functions
⑩ S-VIDEO INPUT JACK
Connect the S-VIDEO output signal from video
equipment to this jack (p.20).
⑬ AUDIO 1 JACK
Connect the audio output (stereo) signal from a
computer or video equipment (p.21).
④ ⑤ ⑧
⑪ ⑬
¸
⑥AUDIO OUTPUT JACK
This jack outputs the audio signal from computer or video
equipment to external audio equipment (p.21).
¸Kensington Security Slot
This slot is for a Kensington lock used to deter
theft of the projector.
*Kensington is a registered trademark of ACCO
Brands Corporation.
① INFRARED REMOTE RECEIVER (Back)
The infrared remote receiver is also located in the front and top
(pp.10, 15).
④ ANALOG OUT TERMINAL
This terminal can be used to output the incoming analog RGB
signal from INPUT 1-3 terminal to the other monitor (pp.19-20).
⑥ ⑦
⑭⑫⑨
②
⑮
② LAN CONNECTION TERMINAL
Connect the LAN cable (refer to the owner’s manual of “Network
Set-up and Operation”).
①
⑩
⑫ AUDIO 3 JACKS (L(MONO)/R)
Connect the audio output signal from video
equipment connected to ⑩ or ⑪ to this jack.
For a mono audio signal (a single audio jack),
connect it to the L (MONO) jack (p.21).

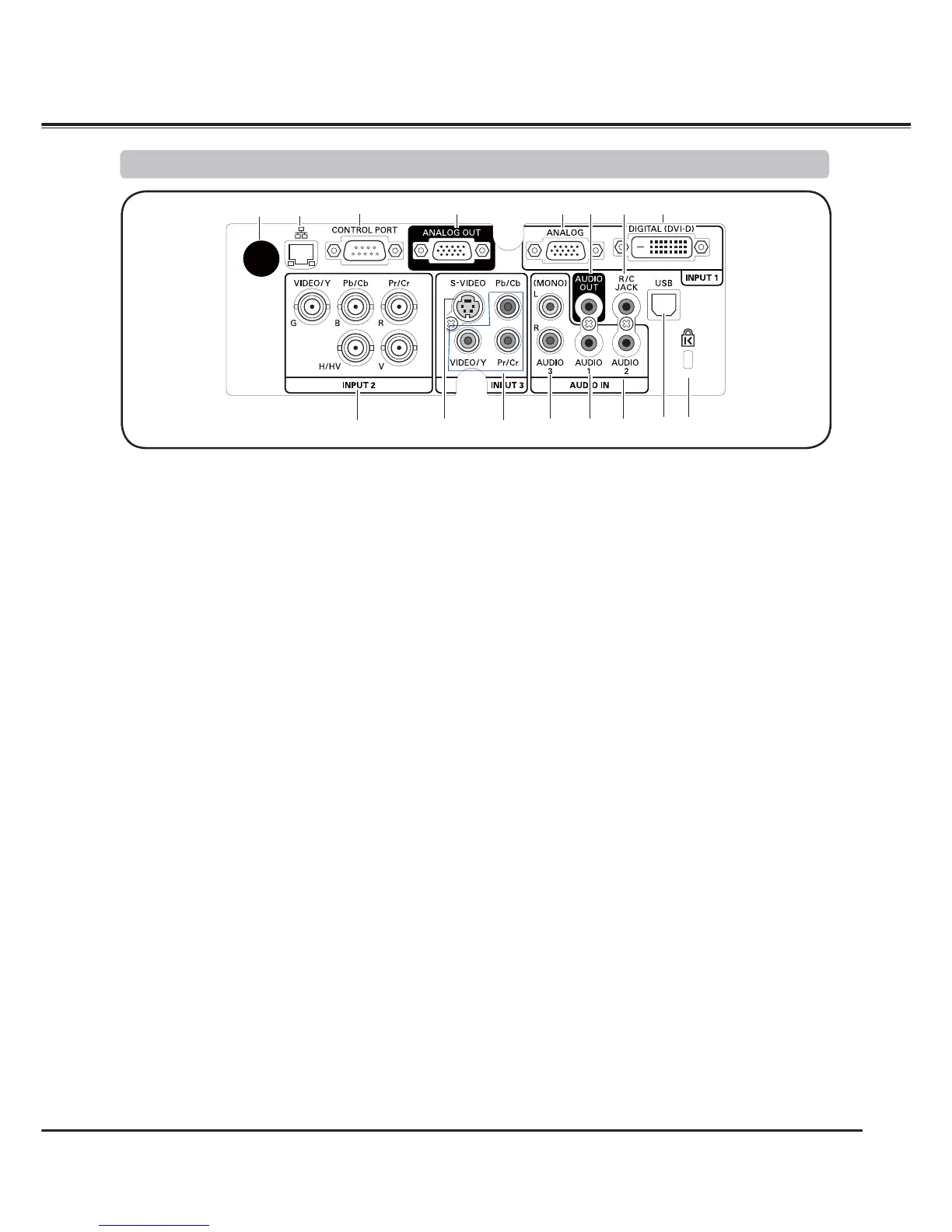

Rear Terminal
