Sanyo PLC-XM100L - Installation; Audio Signal Connections

21
Audio Output
AUDIO IN 1/2
Unplug the power cords of both the
projector and external equipment from the
AC outlet before connecting cables.
Cables used for connection (¼ = Cables not supplied with this projector.)

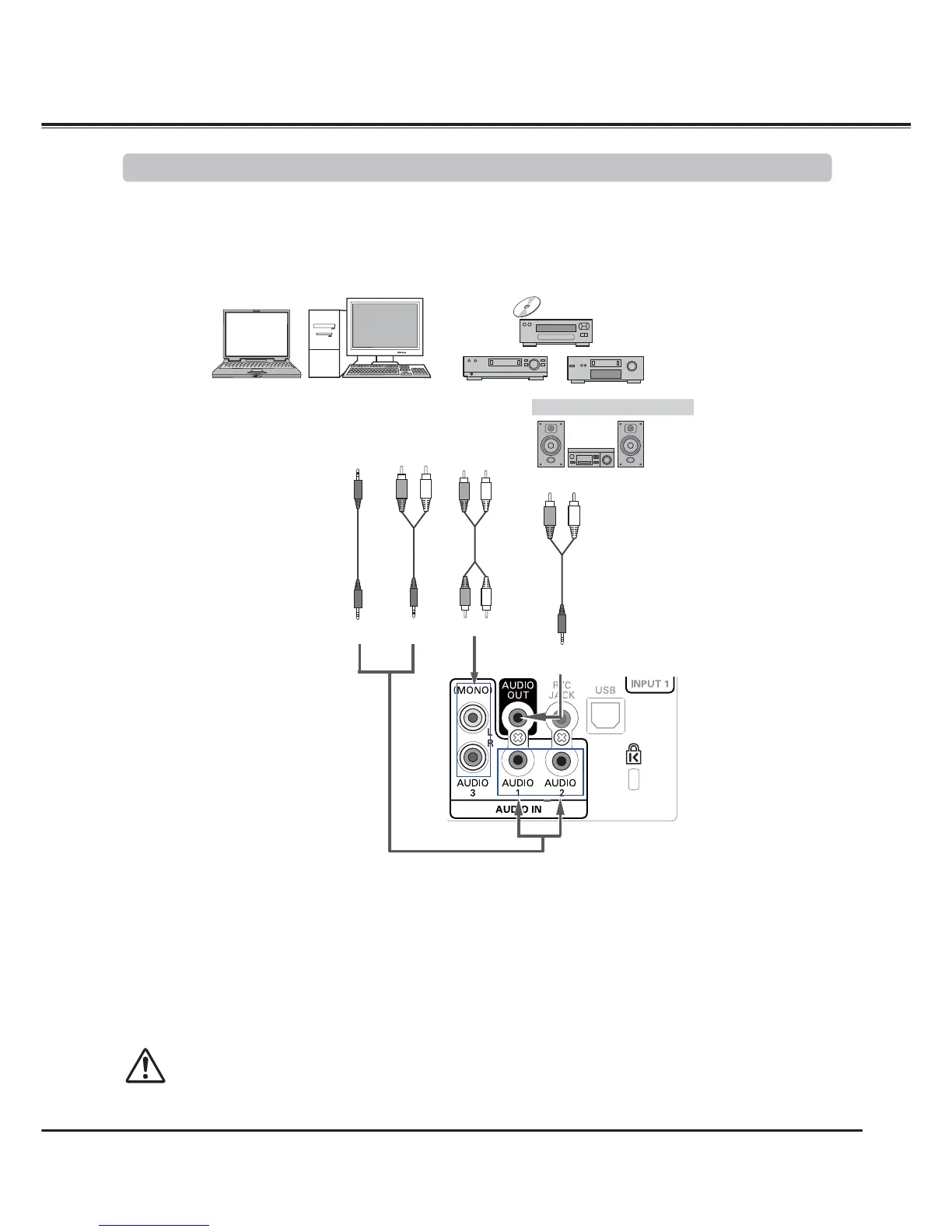

Audio Output
Installation
Audio
cable
(stereo)
(R) (L)
External Audio Equipment
Audio Input
AUDIO OUT
(stereo)
• Audio cable
¼
(R) (L)
(R) (L)
Audio
cable
Audio
cable
(stereo)
Audio
cable
(stereo)
Connecting for Audio Signal
