Sanyo PLC-XM100L User Manual

18

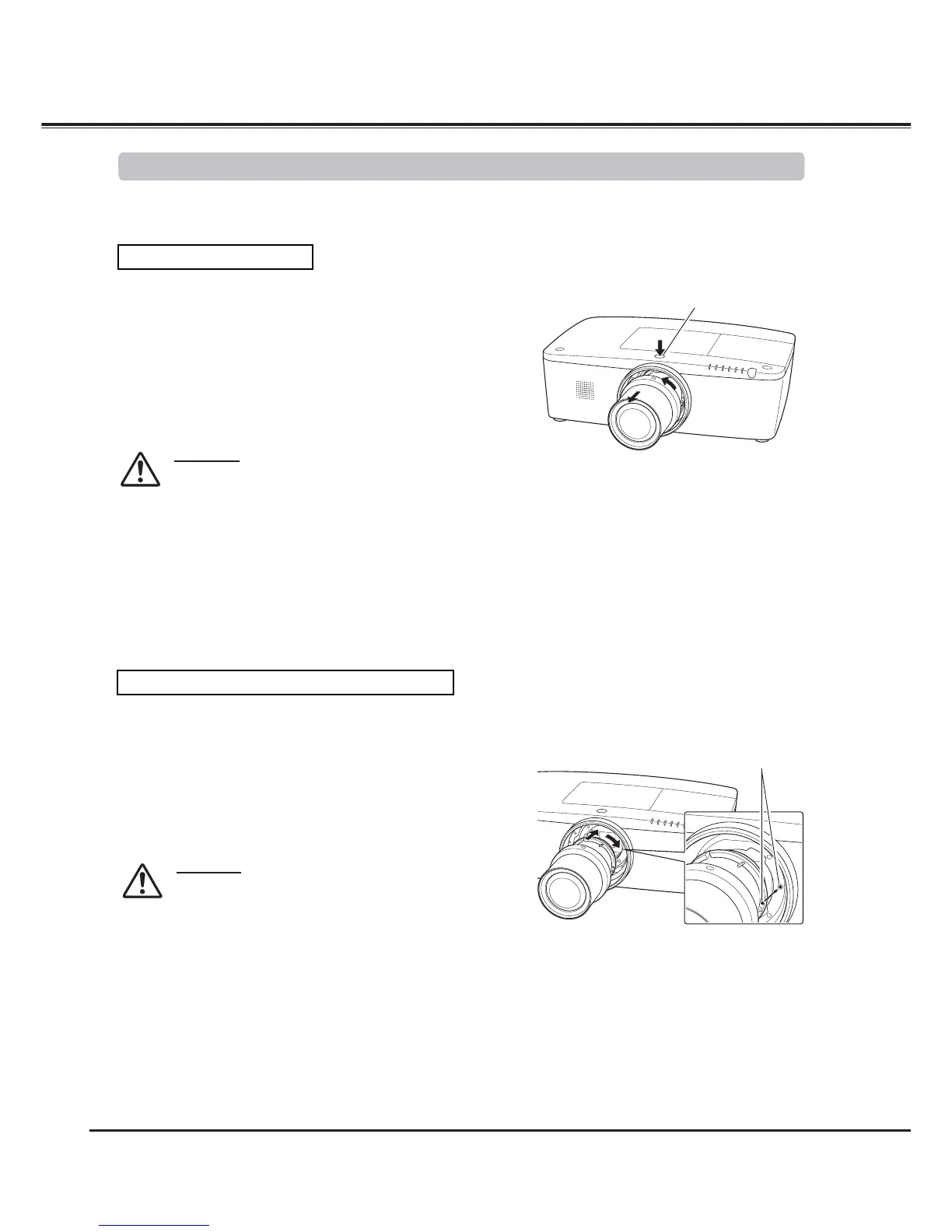

When replacing the lens or using an optional lens, install the lens by following the instructions below. Ask the
sales dealer for detailed information of the optional lens specifications.
Shift the lens to the center position by using the Lens
shift function (p.27).
1
2
Removing the lens
Lens release button
CAUTION
Be careful when handling the lens. Do not drop.
3
Installation
While pressing the Lens release button on the top
of the cabinet, turn the lens counterclockwise until
it stops and pull it out slowly from the projector.
Turn off the projector and unplug the AC power cord.
NOTES ON LENS INSTALLATION
 Ɣ 'RQRWWRXFKRUUHPRYHDQ\SDUWVH[FHSWWKHOHQVDQGUHODWHGSDUWV,WPD\UHVXOWLQ
malfunctions, electrical shock, fire hazard or other accidents.
 Ɣ %HIRUHLQVWDOOLQJRUUHSODFLQJWKHOHQVFKHFNWKDWWKH0RGHO1RRIWKH3URMHFWLRQ/HQV
matches to the projector.
 Ɣ )RUGHWDLOVRIWKHOHQVDQGLQVWDOODWLRQFRQWDFWWKHVDOHVGHDOHUZKHUH\RXSXUFKDVHGWKH
projector.
Fit the lens to the projector by aligning the red dot on
the lens with the red dot of the projector.
1
3
Slowly turn the lens clockwise until it clicks. Make sure
that the lens is fully inserted to the projector.
2
Remove the lens mount cover.
CAUTION
Do not press the lens release button when attaching
the lens.
Lens Installation
Attaching the lens to the projector
Red dots

Sanyo PLC-XM100L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
