Sanyo PLC-XM100L User Manual

23

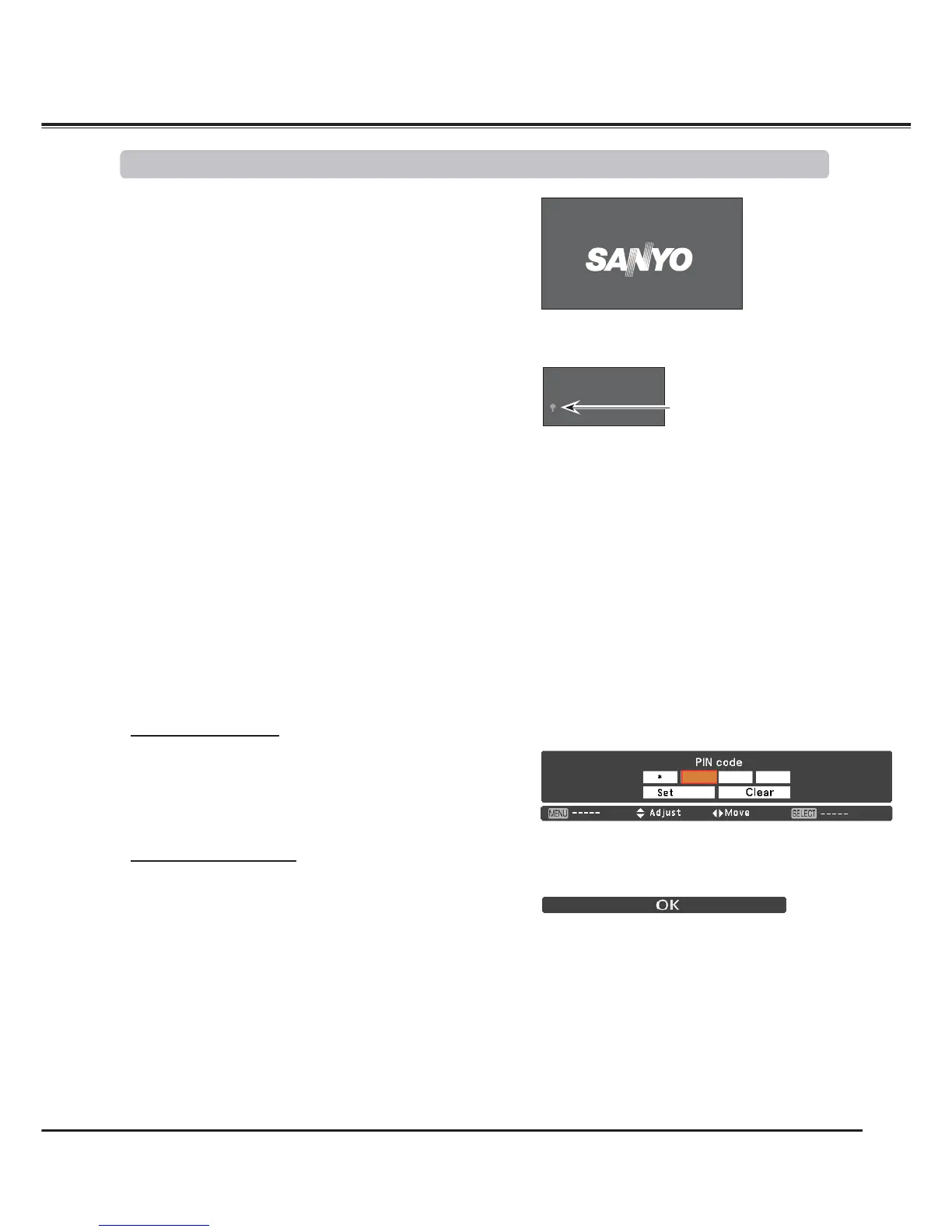

Connect the projector’s AC power cord into an AC outlet. The
LAMP indicator lights red and the POWER indicator lights
green.
Press the ON/STAND-BY button on the side control or the ON
button on the remote control. The LAMP indicator dims and the
cooling fans start to operate. The preparation display appears
on the screen and the countdown starts.
2
3
1
The preparation display will disappear after 30 seconds.
4
After the countdown, the input source that was selected the last
time and the Lamp control status icon (see page 55) appear on
the screen.
Selected Input Source and Lamp control
Complete peripheral connections (with a computer, VCR, etc.)
before turning on the projector.
3Note:
• The Lamp replacement icon and the Filter replacement
or the Filter cartridge replacement icon may appear
on the screen depending on the usage state of the
projector.
• When the filter cartridge replacement icon keeps
appearing on the screen at turning on the projector for
some time and no action is taken to replace the filter
cartridge, the projector will be automatically shut down
in 3 minutes after turning on to protect the projector.
(pp. 63-65, 78)
Basic Operation
16
(See page 55 for Lamp control status.)
Lamp control status
Input 1
RGB(PC analog)
If the projector is locked with a PIN code, PIN code input dialog
box will appear.
3Note:
• When the Logo select function is set to
Off, the logo will not be
shown on the screen (p.52).
• When
Countdown off or Off is selected in the Display function,
the countdown will not be shown on the screen (p.52).
• When the Input button function is set to
Mode 3, the input signal
will be searched automatically (p.51).
• If you press the ON/STAND-BY button on the side control or the
remote control during the countdown period, you can skip the
countdown and go to the normal operations.
After the OK icon disappears, you can operate the projector.
PIN Code Input Dialog Box
3Note:
• If the PIN code number is not entered within three
minutes after the PIN code dialog box appeared, the
projector will be turned off automatically.
• The "1234" is set as the initial PIN code at the factory.
Enter a PIN code
8VHWKH3RLQWŸźEXWWRQVRQWKHVLGHFRQWURORU1XPEHUEXWWRQVRQ
the remote control to enter a number.
When using side control
8VHWKH3RLQWŸźEXWWRQVRQWKHVLGHFRQWUROWRVHOHFWDQXPEHU
3UHVVWKH3RLQWŹEXWWRQWRIL[WKHQXPEHUDQGPRYHWKHUHG
frame pointer to the next box. The number changes to ¼. Repeat
this step to complete entering a four-digit number. After entering
the four-digit number, move the pointer to “Set”. Press the
SELECT button so that you can start to operate the projector.
When using remote control
Press the Number buttons on the remote control to enter a number
(p.14). When you complete entering a four-digit number, the
pointer moves to “Set”. Press the SELECT button so that you can
start to operate the projector.
,I\RXIL[HGDQLQFRUUHFWQXPEHUXVHWKH3RLQWŻEXWWRQWRPRYH
the pointer to the number you want to correct, and then enter the
correct number.
If you entered an incorrect PIN code, “PIN code” and the number
(¼¼¼¼) will turn red for a moment. Enter the correct PIN code all
over again.
Turning On the Projector

Sanyo PLC-XM100L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
