Sanyo PLC-XM100L User Manual

25
Side Control
MENU button
On-Screen Menu
Remote Control
POINT buttons
SELECT button
MENU button

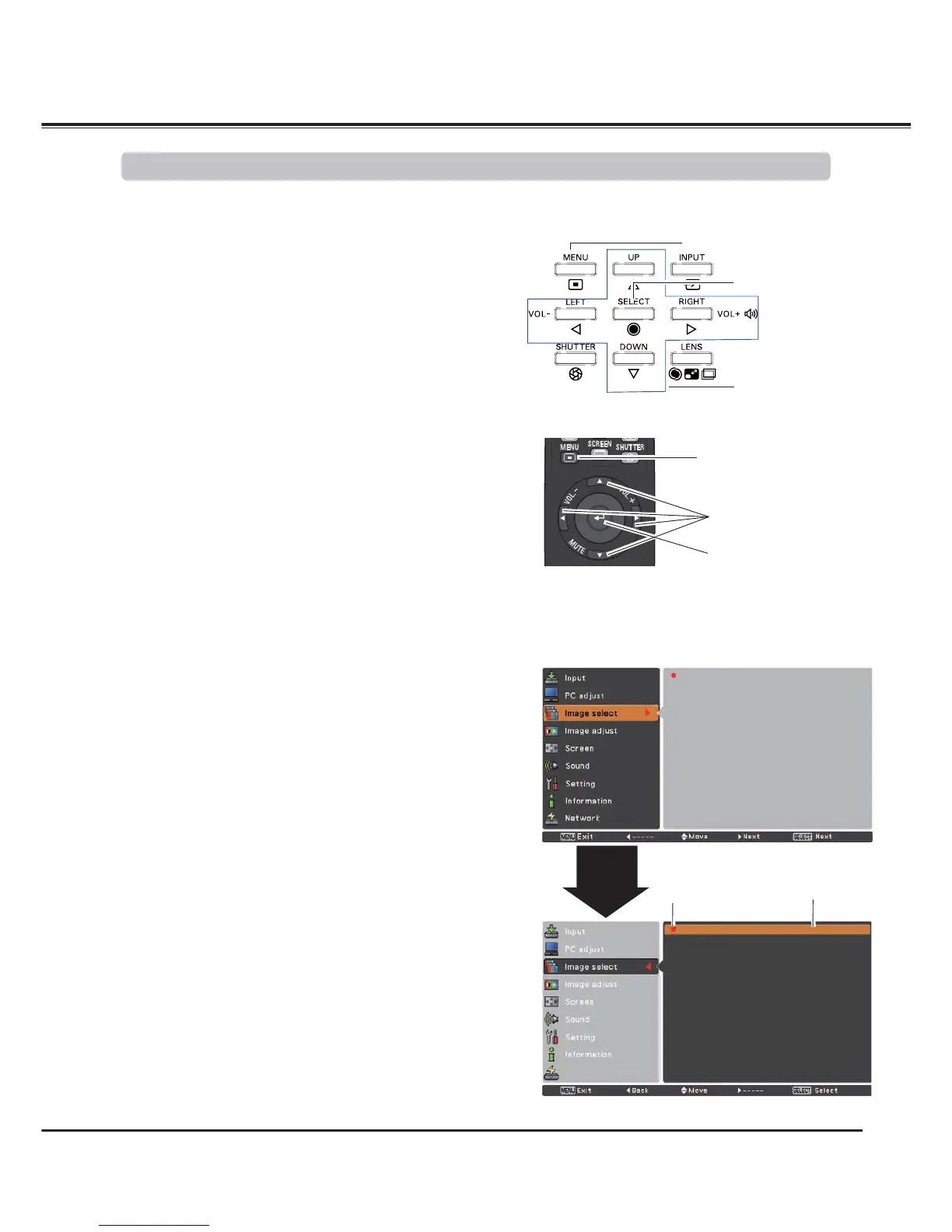

Basic Operation
The projector can be adjusted or set via the On-Screen Menu.
The menus have a hierarchical structure, with a main menu that
is divided into submenus, which are further divided into other
submenus. For each adjustment and setting procedure, refer to
respective sections in this manual.
8VHWKH3RLQWŸźEXWWRQVWRKLJKOLJKWRUVHOHFWDPDLQPHQX
LWHP3UHVVWKH3RLQWŹRUWKH6(/(&7EXWWRQWRDFFHVVWKH
submenu items. (The selected item is highlighted in orange.)
8VHWKH3RLQWŸźEXWWRQVWRVHOHFWWKHGHVLUHGVXEPHQXLWHP
and press the SELECT button to set or access the selected
item.
Press the MENU button on the side control or the remote
control to display the On-Screen Menu.
1
2
3
8VHWKH3RLQWŸźŻŹEXWWRQVWRDGMXVWWKHVHWWLQJRUVZLWFK
between each option and press the SELECT button to activate
it and return to the submenu.
4
3UHVVWKH3RLQWŻEXWWRQWRUHWXUQWRWKHPDLQPHQX3UHVV
the MENU button to exit the On-Screen Menu.
5
Point
Ź or SELECT
button
Standard
Real
Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
Network
The selected item is
highlighted in orange.
The currently
set item is
check marked.
POINT buttons
SELECT button
How to Operate the On-Screen Menu

Sanyo PLC-XM100L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
