Sanyo PLC-XM100L User Manual

19
Monitor Output
BNC
cable
Monitor Output
G B R H/V V
DVI-Digital
cable
VGA
cable
VGA
cable
USB
cable
USB port
Unplug the power cords of both the projector
and external equipment from the AC outlet
before connecting cables.
Cables used for connection (
¼
= Cables not supplied with this projector.)
• VGA Cable (One cable is supplied.)
• DVI-Digital cable
¼
• BNC cable ¼
• Serial Cross cable ¼
• USB cable
Monitor Output
DIGITAL INANALOG INANALOG OUT
USB
Serial Cross
cable
Serial out
CONTROL PORT
Installation
See the next page for the signals that can output to the ANALOG
OUT terminal.

Monitor Input


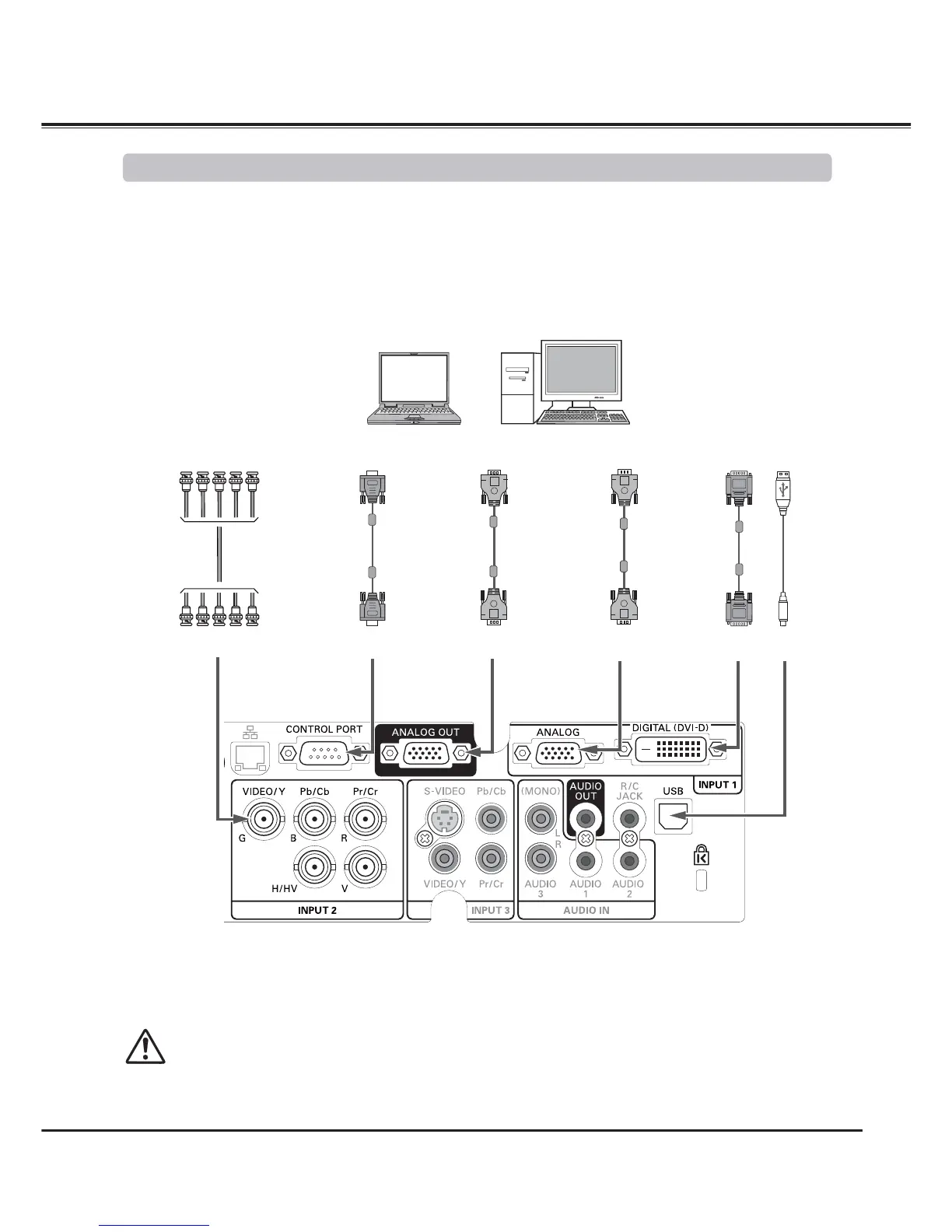

Connecting to a Computer (Digital and Analog RGB)

Sanyo PLC-XM100L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
