Sanyo PLC-XM100L - Installation; Video Equipment Connectivity

20
RGB Scart
21-pin Output
S-video
cable
S-video
Output
Composite
Video
Y - Pb/Cb - Pr/Cr
BNC
cable
Unplug the power cords of
both the projector and external
equipment from the AC outlet
before connecting cables.
Cables used for connection (¼ = Cables not supplied with this projector.)
• Video cable (RCA x 1 or RCA x 3)
¼
• BNC cable (BNC x 1 or BNC x 3)
¼
• S-video cable
¼
• Scart-VGA cable
¼
• DVI-Digital cable
¼
Component
Video Output
Composite
Video
Component
Video Output
(Y, Pb/Cb, Cr/Pr)
Digital Output
(HDCP
compatible)
RCA
cable
DVI-Digital
cable
Scart-VGA
cable
Video
DIGITAL INANALOG IN
ANALOG OUT S-VIDEO
Installation
Input Terminal Monitor Out Cable
Input 1
D-sub15
RGB (PC analog) YES
RGB (SCART) NO
DVI-D
RGB (PC digital) NO
RGB (AV HDCP) NO
Input 2 5 BNC
RGB YES
Video YES
¿
Y, Pb/Cb, Pr/Cr YES
¿
Input 3
RCA
Y, Pb/Cb, Pr/Cr YES
¿
S-video
S-video NO
Video
Video YES
¿
Network
NO
Analog Out Signal Table
Refer to the
Analog Out
Signal Table
(above).
¿
A cable with one
end D-sub 15 and
the other end (Black
box) compatible with
each equipment is
necessary.
Video
Y - Pb/Cb - Pr/Cr

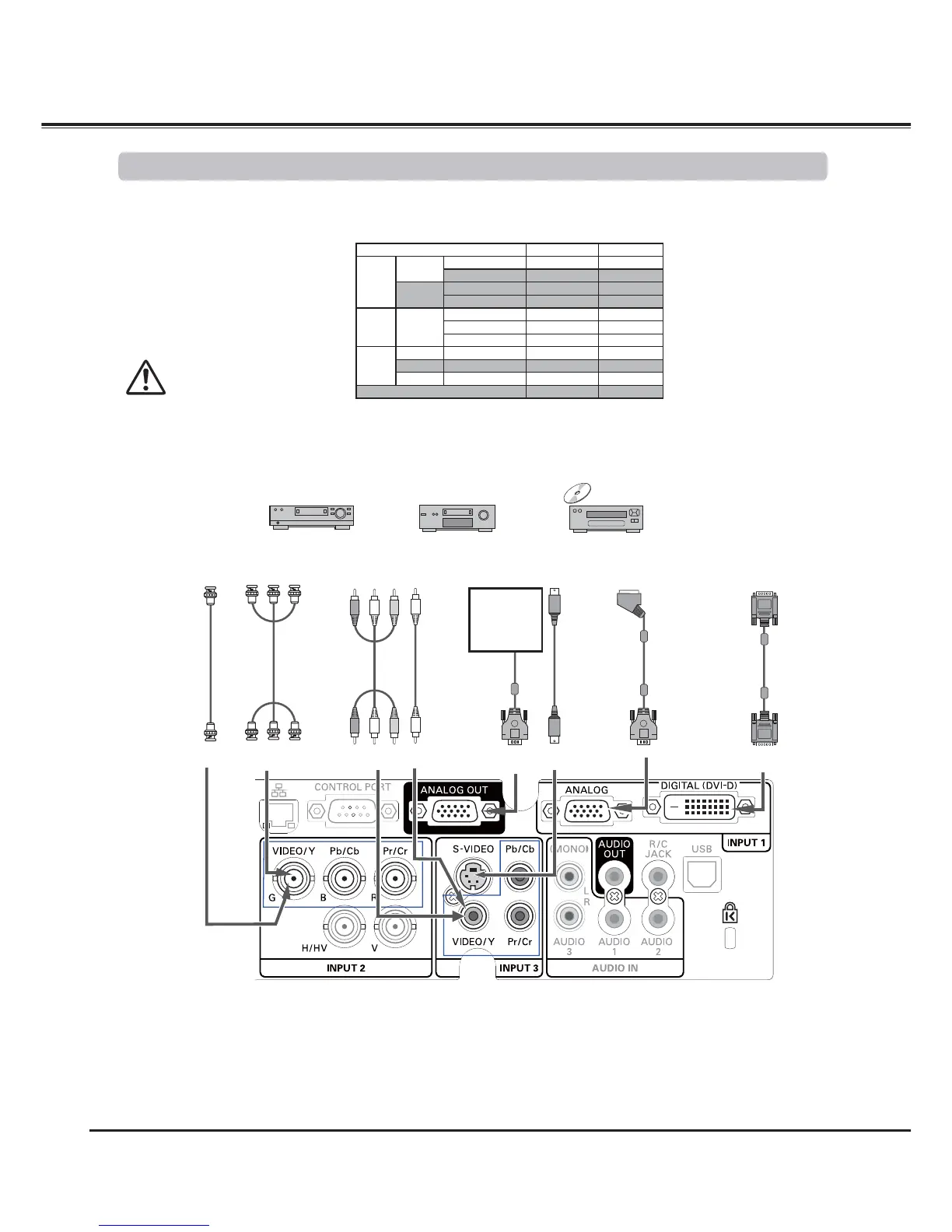

Connecting to Video Equipment (Video, S-video)
