①ON/STAND-BY button
Turn the projector on or off (pp.23-24).
②MENU button
Open or close the On-Screen Menu (p.25).
⑤Point ŸźŻŹ ( VOLUME – / + ) buttons
Select an item or adjust the value in the On-
Screen Menu (p.25).
Pan the image in Digital zoom + mode (p.43).
±$GMXVWWKHYROXPHOHYHOZLWK3RLQWŻŹEXWWRQV
(p.28).
⑩WARNING TEMP. indicator
Blink red when the internal temperature of the
projector exceeds the operating range (pp.69,
76-78).
④
SHUTTER button
Close and open up the built-in shutter. (p.27)
⑧POWER indicator
– Light green while the projector is in stand-by mode.
– Light green during operations.
– Blink green in the Power management mode (p.57).
③SELECT button
Execute the selected item (p.25).
Expand or compress the image in the Digital
zoom mode (p.43).
⑨LAMP indicator
Light red during operations.
⑬LAMP REPLACE indicator
Light orange when the projection lamp reaches
its end of life (pp.66, 77).
⑪WARNING FILTER indicator
Blink slow when the filter is being scrolled
(pp.63, 76).
Blink fast when the filter scroll is not working
properly or the filter cartridge is not installed
(pp.63, 78).
Light orange when the clogging of the filter is
detected or the filter counter reaches a time
set in the timer setting, urging immediate
filter/ filter cartridge replacement (pp.62, 63,
78).

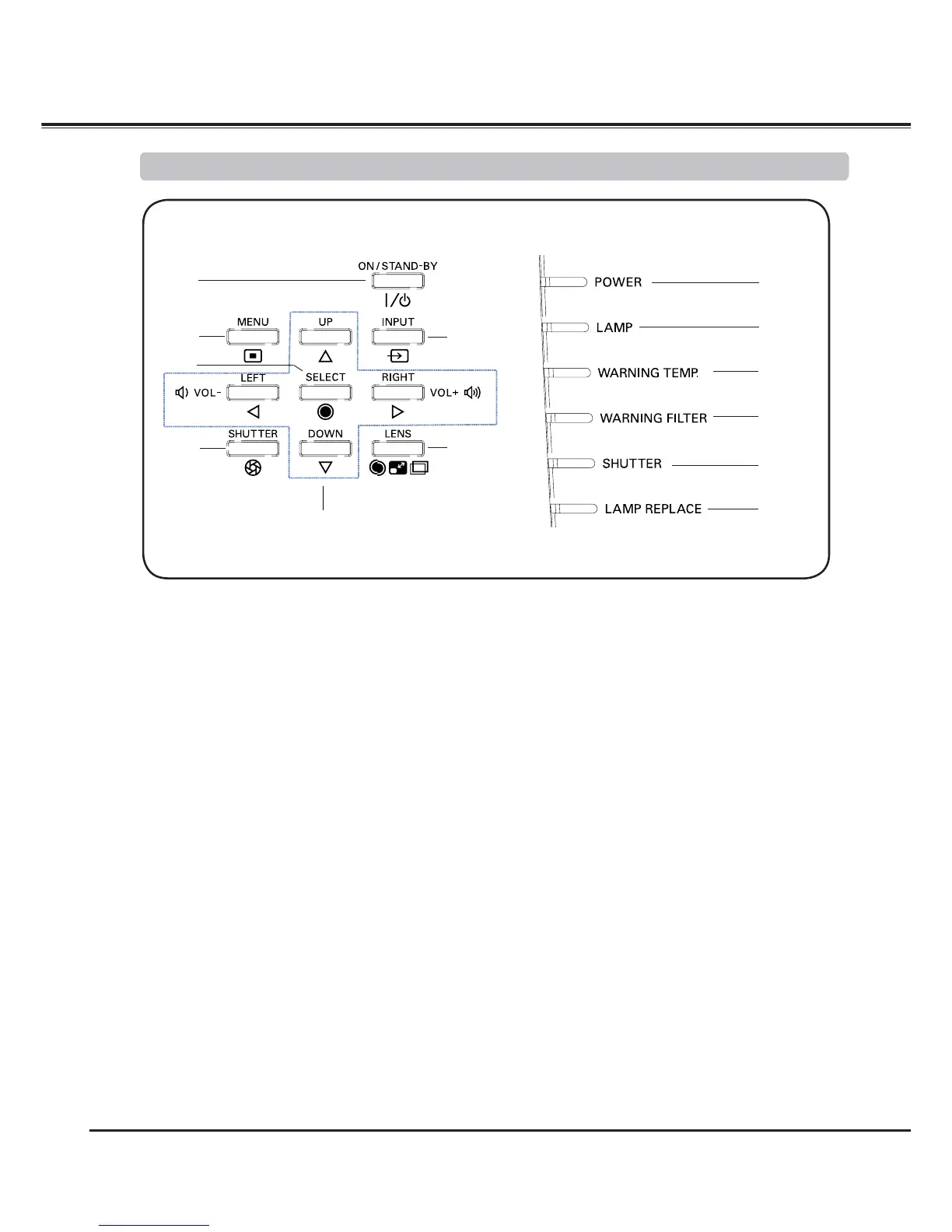

Side Control
Indicators (on the top panel)
Part Names and Functions
⑦INPUT button
Select an input source (pp.33-35).
⑥LENS button
Enter the focus, zoom, and lens shift adjustment
mode (p.27).
⑫
SHUTTER
indicator
Light blue when the shutter is closed (p.76).
Side Control and Indicators

Table of Contents
