Chapter 4 Controlling the Projector
PC adjustment

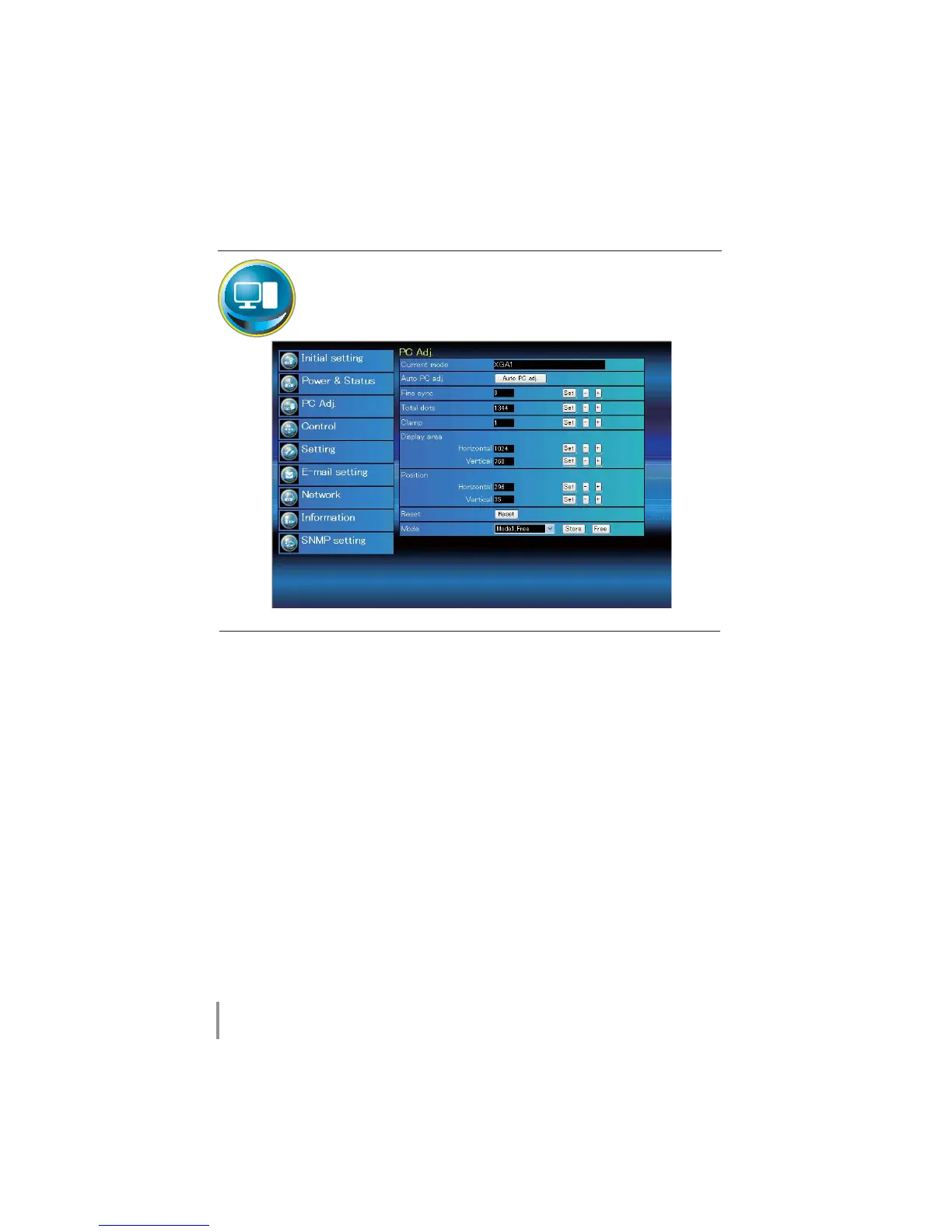

Click PC Adj. on the main menu. This function is to adjust the signal from
the computer connected to the projector to obtain the proper picture
image on the screen.
Item Description
Current mode...... Displays a current mode like VGA, SVGA, XGA. SXGA, UXGA, WXGA, etc. or Mode1 - Mode10
which are the customized mode created by using the "Mode Store" function described
below.
Auto PC adj..........Performs automatic adjustment.
Fine sync ..............Performs Fine Sync adjustment. (0 ~ 31)
Total dots..............Adjust the number of total dots in the horizontal period.
Clamp.........................Adjusts the phase of the clamp.
Display area
Horizontal..........Adjusts the image area horizontally.
Vertical ..............Adjusts the image area vertically.
Position
Horizontal.......Adjusts the horizontal position of the screen.
Vertical ..............Adjusts the vertical position of the screen.
Reset.........................Resets the PC adjustments to the previous levels.
Mode Store..........Stores the PC adjustment values. Select a mode no. [Mode1 - Mode10] from the
pull-down menu.
Mode Free............Clear the PC adjustment values. Select a mode no. [Mode1 - Mode10] from the pull-
down menu.

Sanyo PLC-XM100L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
