35
When the video input signal is connected to the
Y-Pb/Cb-Pr/Cr jacks, select
Y,Pb/Cb,Pr/Cr
.
When the video input signal is connected to the
VIDEO jack, select Video.
When the video input signal is connected to the
S-VIDEO jack, select S-video.
When connecting to video equipment, select the type of Video
source in the Source Select Menu.
When the video input signal is connected to the
Y-Pb/Cb-Pr/Cr jacks, select
Y,Pb/Cb,Pr/Cr
.
When the video input signal is connected to the
VIDEO jack, select Video.
When connecting to video equipment, select the type of Video
source in the Source Select Menu.
Video
Y,Pb/Cb,Pr/Cr
Video
S-video
Input Selection
When connecting to video equipment, select the type of Video
source in the Source Select Menu.
INPUT 1 MENU
RGB(AV HDCP)
RGB(Scart)
When scart video equipment is connected to the INPUT 1
(ANALOG) terminal, select RGB (Scart).
If the HDCP-compatible signal source is connected to the
INPUT 1 (DIGITAL) terminal, select RGB (AV HDCP).
INPUT 2 MENU
Y,Pb/Cb,Pr/Cr
INPUT 3 MENU
Y,Pb/Cb,Pr/Cr
1
2
3
Press the MENU button to display the On-Screen Menu. Use
WKH3RLQWŸźEXWWRQVWRVHOHFWInput and then press the
3RLQWŹRUWKH6(/(&7EXWWRQ
8VHWKH3RLQWŸźEXWWRQVWRVHOHFWWKHGHVLUHGLQSXWDQG
WKHQSUHVVWKH3RLQWŹEXWWRQWRDFFHVVWKHVXEPHQXLWHPV
8VHWKH3RLQWŸźEXWWRQVWRVHOHFWWKHGHVLUHGVRXUFH and
then press the SELECT button.

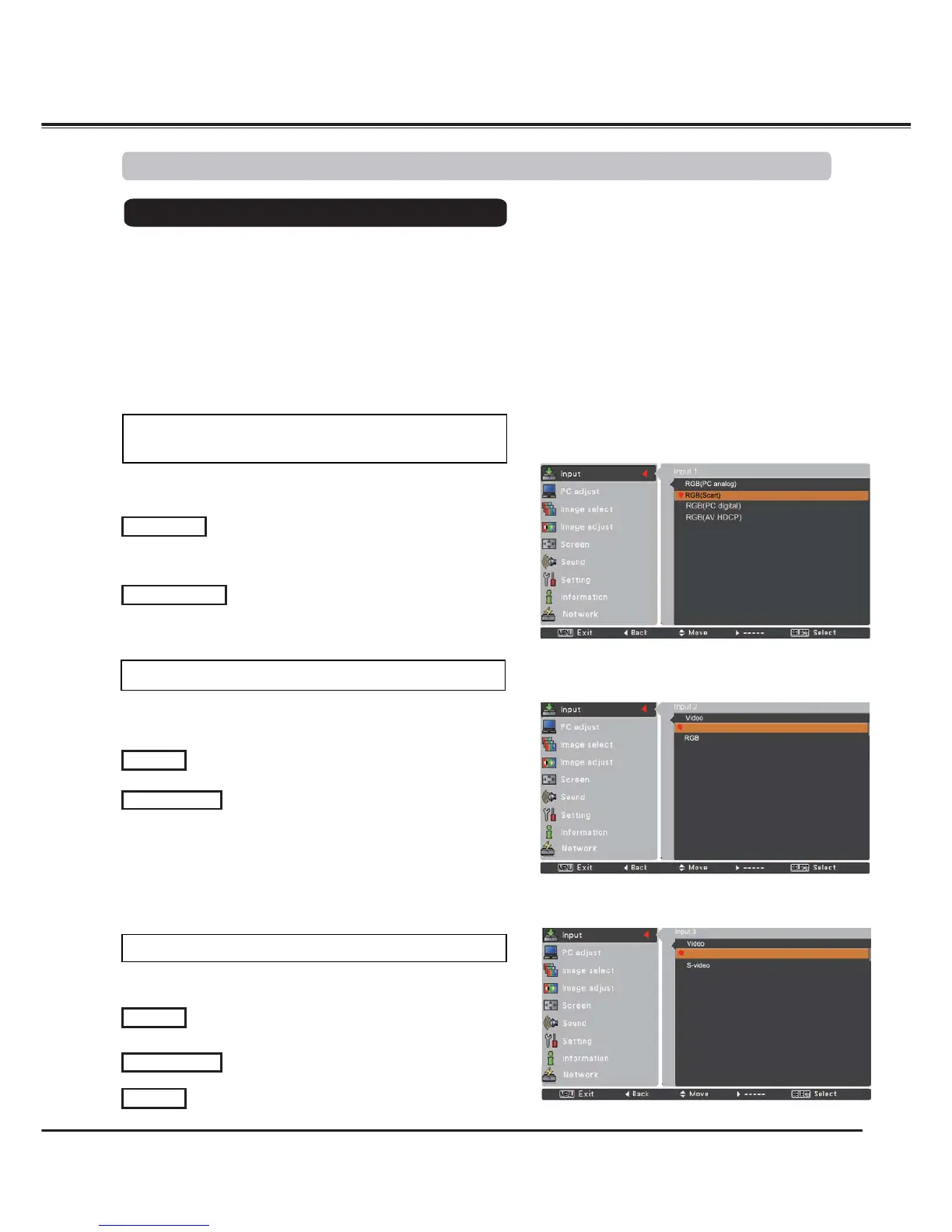

Video Input Source Selection
Menu Operation
3Note:
• When the video input signal is connected to the Y-Pb/Cb-Pr/Cr jacks,
Y,Pb/Cb,Pr/Cr takes precedence of RGB.
• Y,Pb/Cb,Pr/Cr input can accept the component signal and the analog
RGB signal. When analog RGB signal is not recognized in Y,Pb/Cb,Pr/
Cr input source, set to RGB input manually.
WHEN SELECTING INPUT 1 (COMPUTER INPUT
TERMINALS )
WHEN SELECTING INPUT 2 (5 BNC INPUT JACKS )
WHEN SELECTING INPUT 3 (AV TERMINALS )

Sanyo PLC-XM100L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
