42
Select the desired screen size that conforms to the input
signal source.
SCREEN MENU
Provide the image at the normal computer aspect ratio of 4:3.
Provide the image in its original size. When the original image size
is larger than the screen size (1024 x 768), the projector enters to
WKHSDQQLQJPRGHDXWRPDWLFDOO\8VHWKH3RLQWŸźŻŹEXWWRQV
to pan the image. When adjusted, the arrows will turn red. When
reached to the correction limits, the arrows will disappear.
Provide the image to fit the wide video aspect ratio (16:9) by
expanding the image width uniformly. This function can be used to
provide the squeezed video signal at 16:9.
3Note:
The projector cannot display any resolution higher than
1920 x 1200. If your computer’s screen resolution is
higher than 1920 x 1200, lower the resolution before
connecting the projector.
The image data other than XGA (1024 x 768) is
modified to fit the screen size in initial mode.
True, Full and Digital zoom +/– cannot be selected
when no signal is detected in the PC System Menu.
(p.36)
1
2

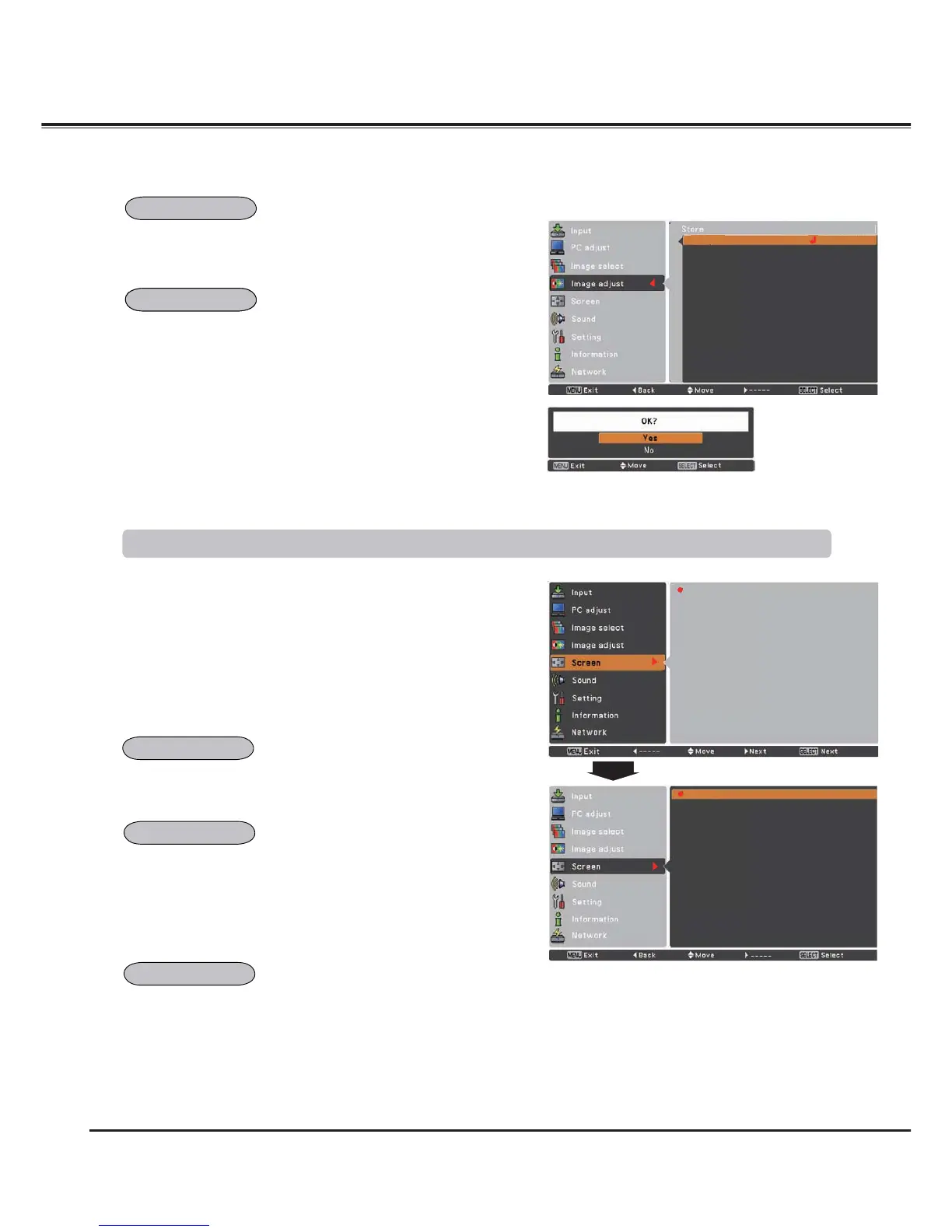

Press the MENU button to display the On-Screen Menu. Use
WKH3RLQWŸźEXWWRQVWRVHOHFWScreen and then press the
3RLQWŹRUWKH6(/(&7EXWWRQ
8VHWKH3RLQWŸźEXWWRQVVHOHFWWKHGHVLUHGLWHPDQGWKHQ
press the SELECT button.
Normal
True
Wide
Full
Custom
Digital zoom +
Digital zoom -
Keystone
Ceiling
Rear
Reset
To reset the adjusted data, select Reset and press the SELECT
button. A confirmation box appears and then select Yes. All
adjustments will return to their previous figures.
To store the adjusted data, select StoreDQGSUHVVWKH3RLQWŹRU
WKH6(/(&7EXWWRQ8VHWKH3RLQWŸźEXWWRQVWRVHOHFWRQHIURP
Image 1 to 10 and press the SELECT button.
A confirmation box appears and then select Yes. Stored data can
be called up by selecting an Image (1–10) in the Image Mode
Selection on page 40.
A confirmation box appears and
then select Yes.
Store
Computer Input
Reset
Store
Screen Size Adjustment
Normal
True
Wide
