Sanyo PLC-XM100L - Appendix; Projector Dimensions and Mounting

85
(14.61)371.1
(3.31)84.0
(5.76)164.0
(18.58)472.0
(19.27)489.5
6.25(158.8)
3.78(96.0)
(3.54)90.0
(5.31)135.0
(3.94)100.0
(3.54)90.0
4 MAX
º
Unit: inch (mm)
Appendix
(17.12)434.8
(3.31)84.0
(5.76)164.0
(18.58)472.0
(19.27)489.5
6.25(158.8) 3.78(96.0)
(3.54)90.0
(5.31)135.0
(3.94)100.0
(3.54)90.0
4 MAX
º

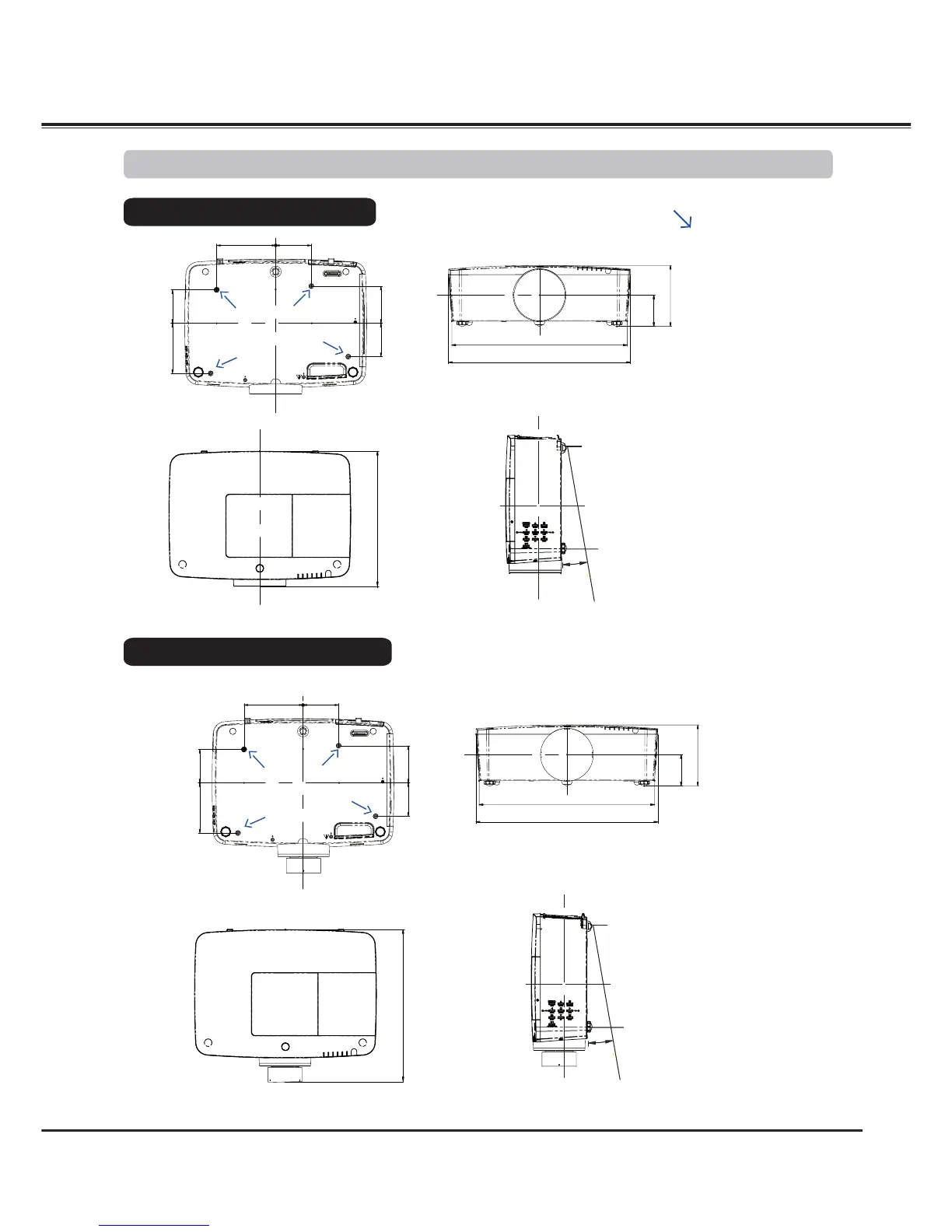

Dimensions
PLC-XM100L, PLC-XM150L
PLC-XM100, PLC-XM150
Screw Holes for
Ceiling Mount
Screw: M6
Depth: 0.393 (10.0)
