Provides the full screen image.
Computer Input

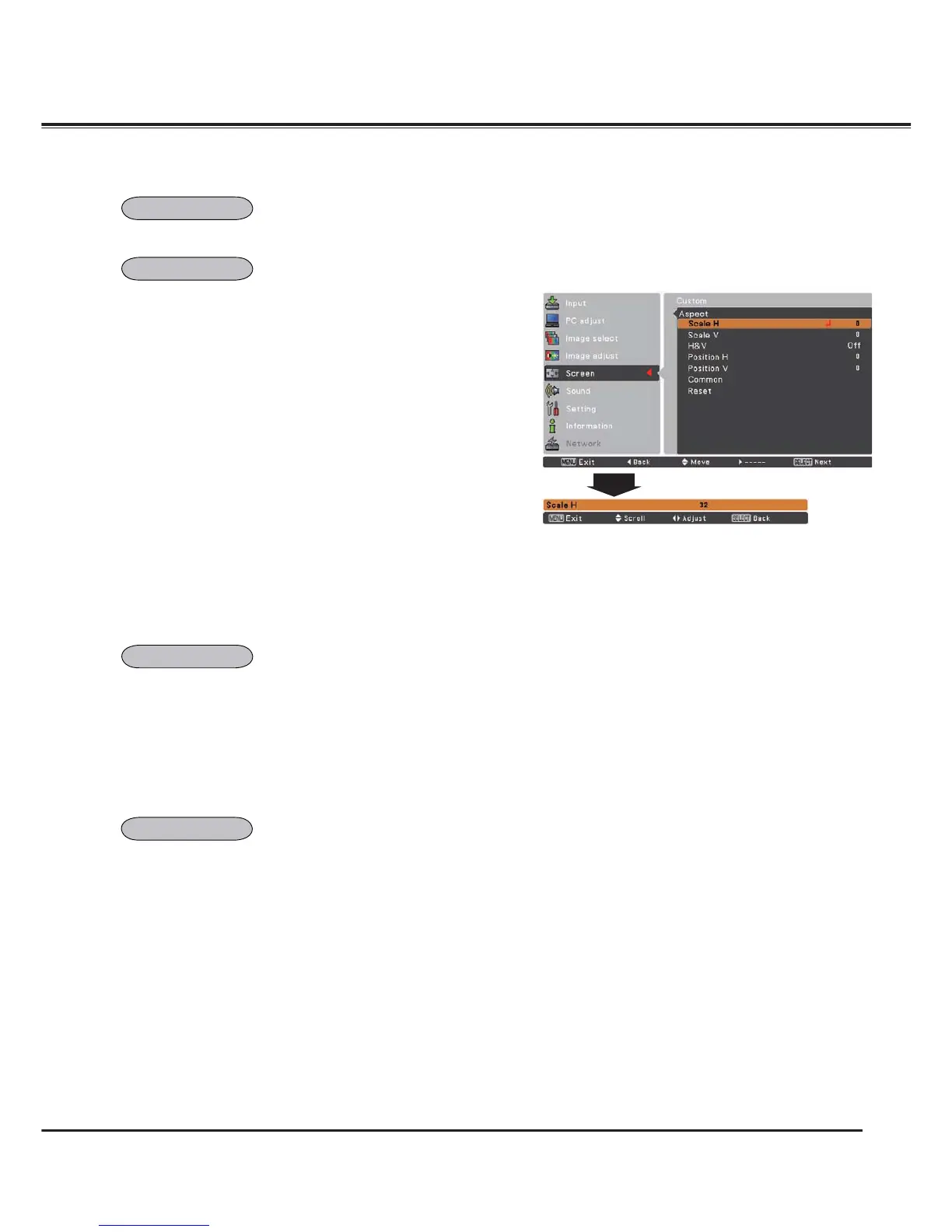

Adjust the screen scale and position manually with this function.
3UHVVWKH3RLQWŹEXWWRQDWCustom and the Custom is
GLVSOD\HGRQWKHVFUHHQ\RXFDQXVHWKH3RLQWŸźEXWWRQV
to choose the item you want to adjust.
Scale H/V............. Adjust the Horizontal/Vertical screen scale.
H&V...................... When set to On, the aspect ratio is fixed.
Scale V appears dimmed and becomes
unavailable. Adjust Scale H, then the screen
scale is automatically modified based on the
aspect ratio.
Position H/V ........ Adjust the Horizontal/Vertical screen position.
Common.............. Save the adjusted scale to all the inputs.
Press the SELECT button at Common to
display a confirmation box. To save the scale,
press the SELECT button at Yes. When
Custom is selected, the saved scale is used.
Reset ................... Reset the all adjusted values. Press the
SELECT button at Reset to display a
confirmation box. To reset, press the SELECT
button at Yes.
3Note:
• When no signal is detected, Normal is set automatically
and the Aspect dialog box disappears.
• The adjustable range for
Scale H/V and Position H/V is
limited depending on the input signal.
Custom
Select Digital zoom +. The On-Screen Menu disappears and D.
zoom + appears. Press the SELECT button to expand the image
VL]H8VHWKH3RLQWŸźŻŹEXWWRQVWRSDQWKHLPDJH7KH3DQQLQJ
function can work only when the image is larger than the screen
size.
A projected image can be also expanded by pressing the D.ZOOM
button on the remote control.
To exit the Digital zoom +/– mode, press any button except the
D.ZOOM button, SELECT and Point buttons.
Select Digital zoom – . The On-Screen Menu disappears and D.
zoom – appears. Press the SELECT button to compress image
size.
The projected image can be also compressed by pressing the
D.ZOOM button on the remote control.
To return to the previous screen size, select a screen size from the
Screen Size Adjustment Menu or select an input source from the
Input Source Selection Menu (see pages 33-35) again or adjust
the screen size with the D.ZOOM button.
3Note:
• The panning function may not operate properly if the
stored Mode in the PC adjust Menu is used (p.39).
• The minimum compression ratio is limited depending
on the input signal, when the Keystone function is
working or when the custom is selected for the screen
size.
•
True, Full and Digital zoom +/– cannot be selected
when
480i, 575i, 480p or 575p is selected in the PC
System Menu (p.36).
• Digital zoom +/- cannot be selected when Full or
True is selected.
•
Digital zoom – cannot be operated when Custom is
selected.
Full
Custom
Digital zoom +
Digital zoom -
