Sanyo PLC-XM100L User Manual

14
⑯
⑮
⑲
⑰
⑱
⑱ ZOOM Ÿźbuttons
Zoom in and out the images (p.29).
⑮ D.ZOOM button
Select the Digital zoom +/- mode and resize the
image (p.43).
⑲ FOCUS buttons
Adjust the focus (p.29).
㉑ FILTER button
Scroll the filter (p.30).
㉓FREEZE button
Freeze the picture on the screen (p.30).
⑰ KEYSTONE button
Correct keystone distortion (pp.31, 44, 50).
⑳ RESET/ON/ALL-OFF switch
When using the remote control, set this switch to
“ON”. Set it to “ALL OFF” for power saving when
it is not in use. Slide this switch to “RESET” to
initialize the remote control code.
㉕ R-CLICK button
Act as the right mouse button for wireless mouse
operation (p.32).
㉒ LENS SHIFT button
Select the Lens Shift function (p.29).
㉔ P-TIMER button
Operate the P-timer function (p.30).
㉖
㉗
NUMBER buttons
Act as number buttons. Use these buttons when
setting the remote control codes (p.16) or when
entering the PIN code numbers (pp. 23, 54, 60).
㉒
㉑
⑳
㉓
㉔
㉖
POINTER button
Act as the On-Off switch for the Pointer (pp.30, 32).
㉗
For PIN code
and remote
control code.
Part Names and Functions
㉕
⑯
INPUT 1- 3 buttons
Select an input source (INPUT 1 – INPUT 3)
(pp.33-35).

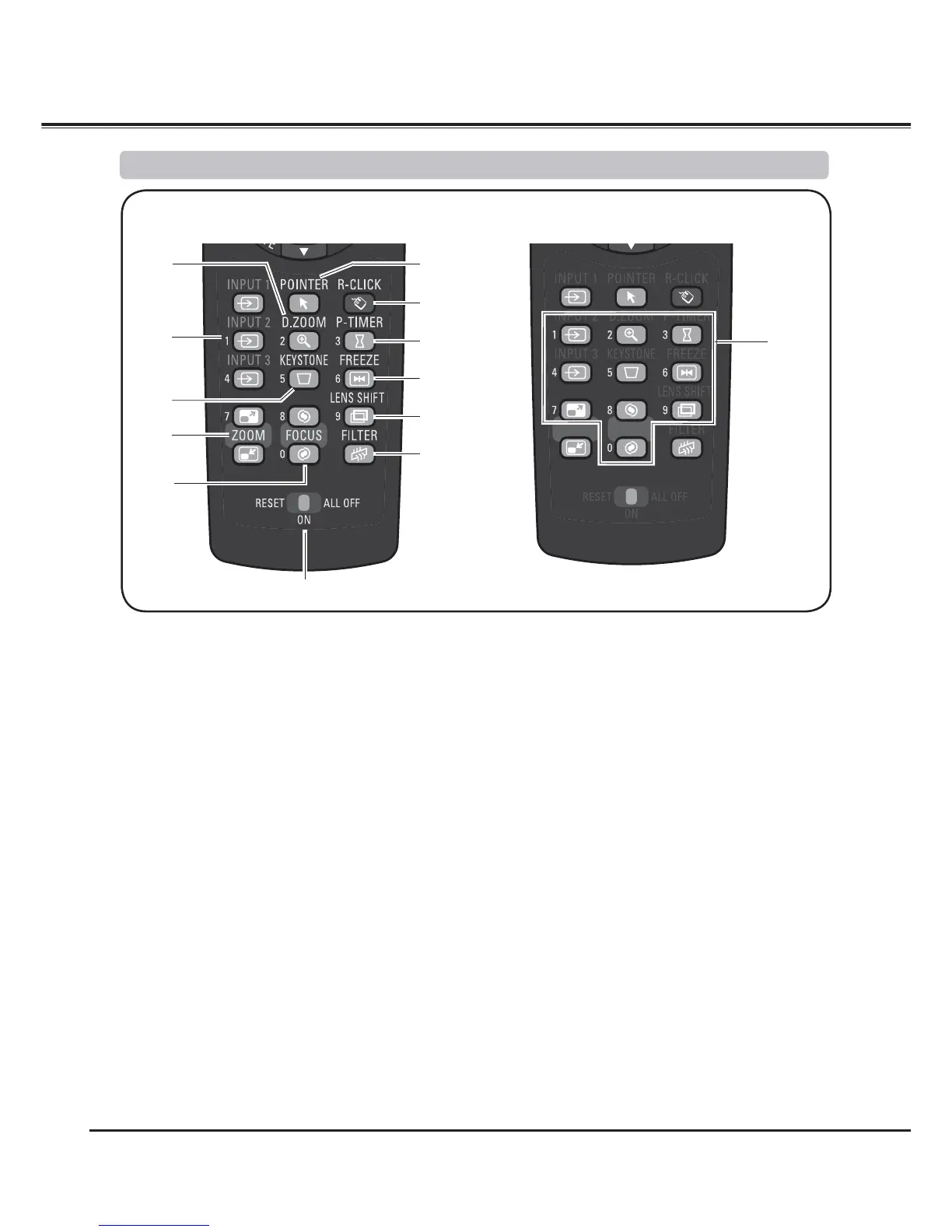

Remote Control

Sanyo PLC-XM100L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
