S84NX/S86NX Service Manual
74

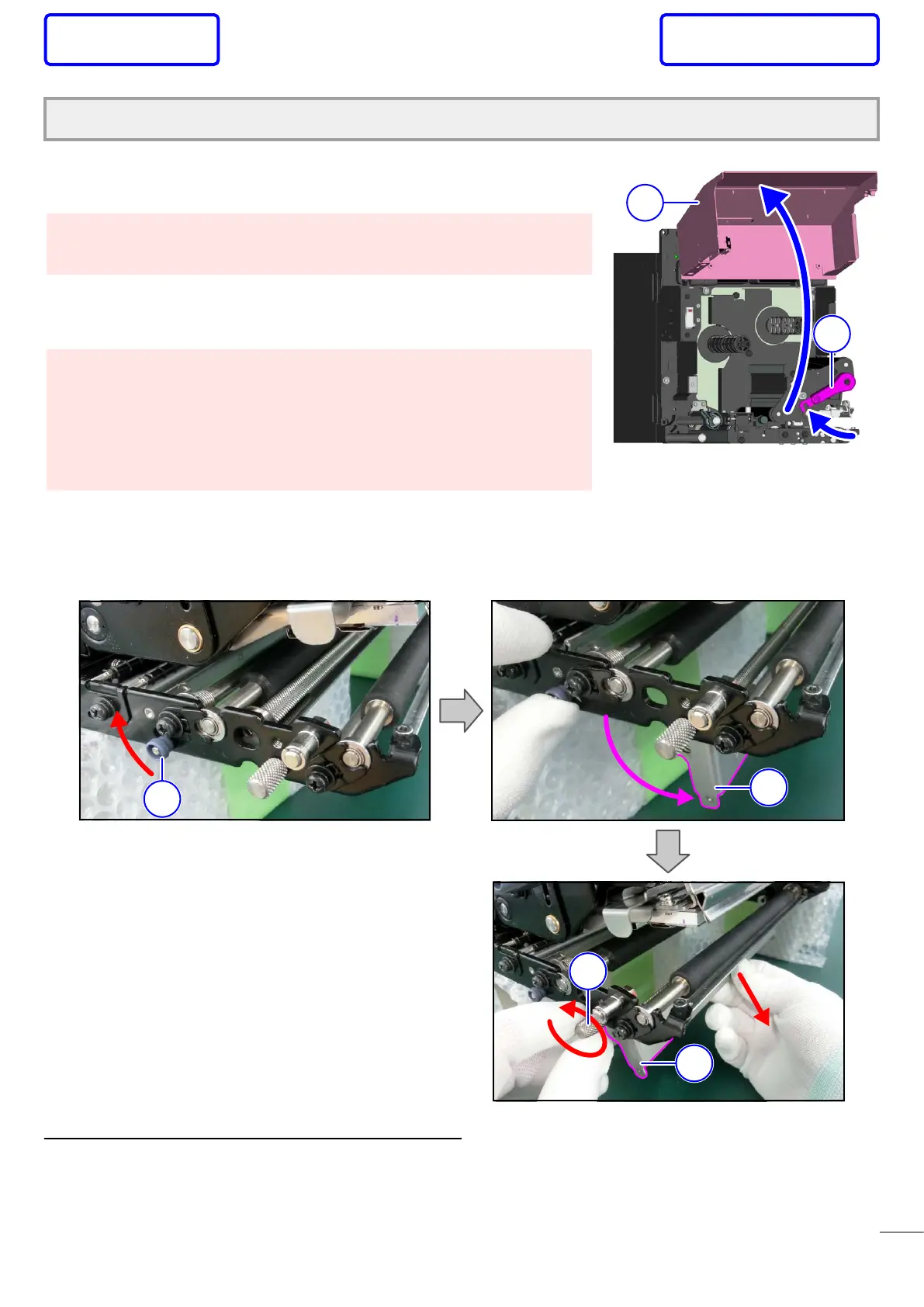

4.4.2 Replacing the Pressure roller Plate
1
Open the top cover (
1
) of the product.
NOTE
• Open the top cover fully to prevent accidental drop of the cover.
2
Turn the head lock lever (
2
) clockwise to unlock the print
head.
NOTE
• The print head and its surroundings are hot after printing. Be
careful not to touch it, to avoid being burned.
• Touching the edge of the print head with your bare hand could
cause injury.
2
1
3
Push the pressure roller release tab (
3
) up to release the pressure roller plate (
4
).
4
Turn the pressure roller knob (
5
) counterclockwise to remove the pressure roller plate (
4
).
3
4
5
4

From here, assembling procedure
5
Assemble the parts in the reverse order of the disassembly procedure.
