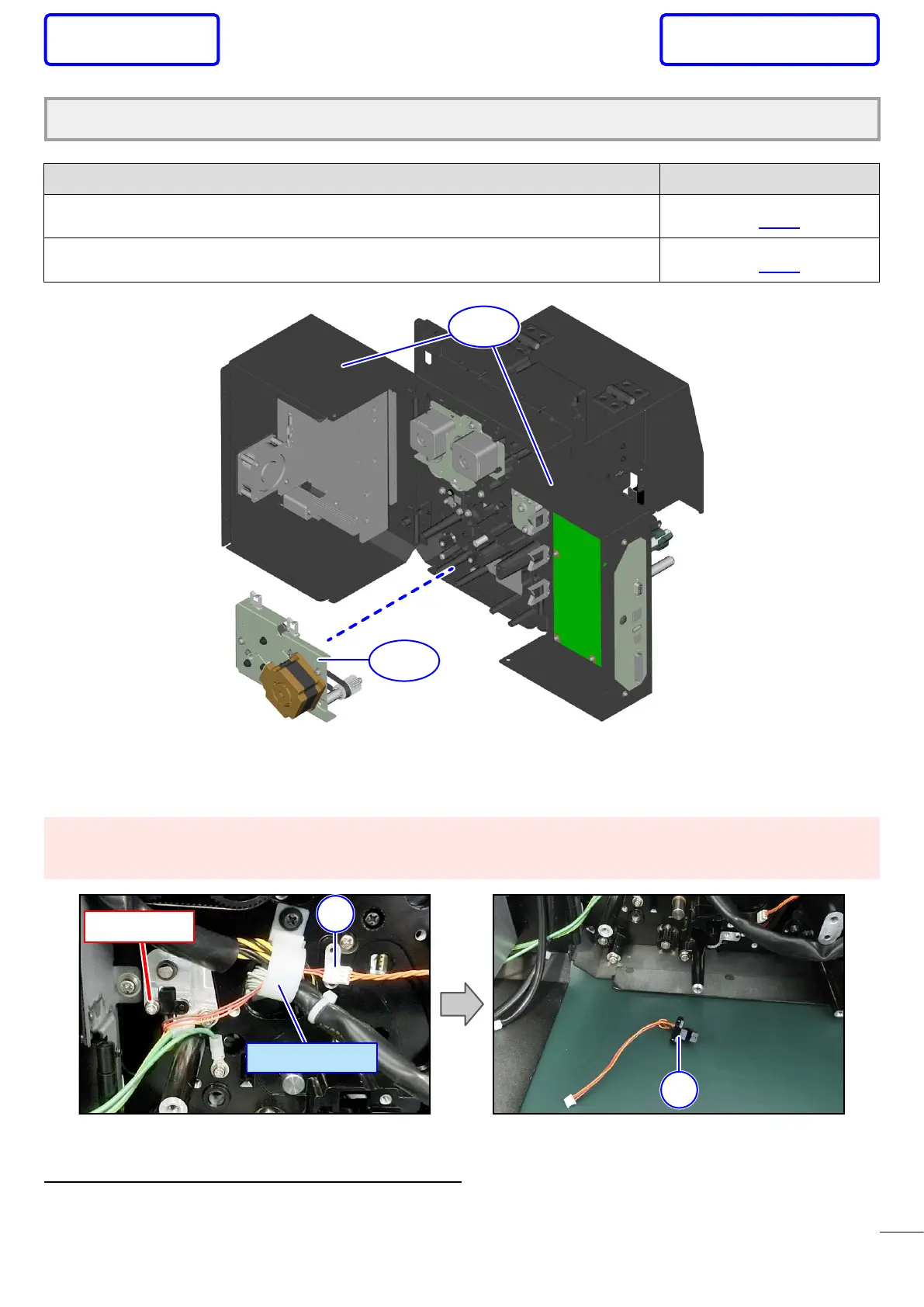

4.5.4 Replacing the Head Open Sensor
Procedure Reference
1
Open the rear housing covers of the product.
Refer to 4.2.1
2
Remove the gearbox from the product.
Refer to 4.4.8
Step 1
Step 2
3
Remove the screw, disconnect the sensor cable (
1
) and replace the head
open sensor
(
2
).
Notes on assembling
• Pass the sensor cable through the clamp.
Screw
1
2
CLAMP

From here, assembling procedure
4
Assemble the parts in the reverse order of the disassembly procedure.
